Custom uv sterilizer aquarium supply | Poolking
Relying on advanced technology, excellent production capabilities, and perfect service, Poolking takes the lead in the industry now and spreads our Poolking all over the world. Together with our products, our services are also supplied to be the highest-level. uv sterilizer aquarium If you are interested in our new product uv sterilizer aquarium and others, welcome you to contact us.The law of heat conduction theory has been adopted in the developing of Poolking . It's specially made to allow the heat to be transferred from the higher temperature region to the lower temperature region.

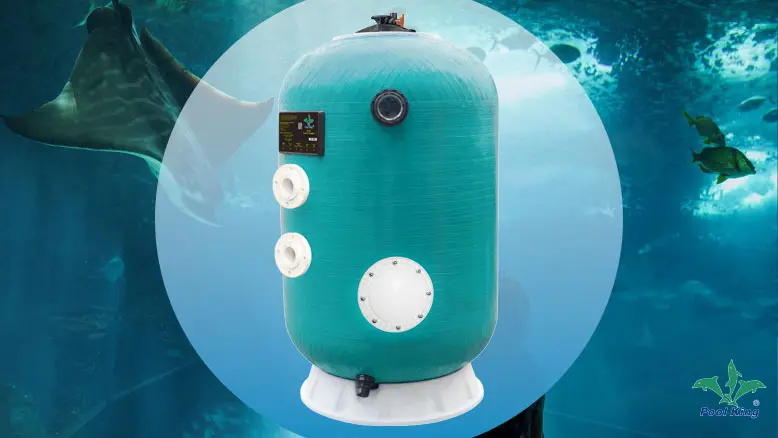

Model: HKA/HK/HKN
- Fiberglass filter body is UV and corrosion Resistant.
- 0.8~1.2M BED depth for finer filtration.
- Lateral with tight gaps are able to keep out filter media and dirt particles.
- Sight glass and Sand drain are available in option.
- Nozzle plate system ensures maximum performance and save up to 25% of backwash water.
- Lateral and nozzle plate are available in option. - Flange or 6way multiport valve are available in option.
| Model | Filter Diameter （mm） | Filter Height（mm） | Design Flow（m³/h） | Filter Area（m²） | Connections（inch/mm） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HK15800A | 800 | 1600 | 20.0 | 0.50 | 2"/63 | 455 | 170 |
| HK15900A | 900 | 1600 | 25.6 | 0.64 | 2"/63 | 585 | 230 |
| HK151000A | 1000 | 1600 | 31.6 | 0.79 | 2"/63 | 720 | 270 |
| HK151200A | 1200 | 1600 | 40.0 | 1.13 | 2.5"/75 | 1030 | 450 |
| HK151200A-2.5 | 1200 | 1600 | 45.2 | 1.13 | 2"/63 | 1130 | 450 |
| HK20800A | 800 | 2100 | 15.0 | 0.50 | 2"/63 | 770 | 170 |
| HK20900A | 900 | 2100 | 19.0 | 0.64 | 2"/63 | 990 | 230 |
| HK201000A | 1000 | 2100 | 23.7 | 0.79 | 2"/63 | 1220 | 270 |
| HK201200A | 1200 | 2100 | 30.0 | 1.13 | 2"/63 | 1740 | 450 |
| HK201200A-2.5 | 1200 | 2100 | 33.9 | 1.13 | 2.5"/75 | 1740 | 450 |
| Model | HK15800A | HK15900A | HK151000A | HK151200A | HK151200A-2.5 | HK20800A | HK20900A | HK201000A | HK201200A | HK201200A-2.5 |
| ΦD(mm) | 800 | 900 | 1000 | 1200 | 1200 | 800 | 900 | 1000 | 1200 | 1200 |
| H(mm) | 1600 | 1600 | 1600 | 1600 | 1600 | 2100 | 2100 | 2100 | 2100 | 2100 |
| A(mm) | 700 | 700 | 700 | 700 | 700 | 1000 | 1000 | 1000 | 1000 | 1000 |
| B(mm) | 150 | 150 | 150 | 180 | 180 | 150 | 150 | 150 | 180 | 180 |
| C(mm) | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| ΦE(mm) | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| F(mm) | 520 | 520 | 520 | 600 | 600 | 520 | 520 | 520 | 600 | 600 |
| ΦK(mm) | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 |
| M(mm) | 1120 | 1120 | 1120 | 1120 | 1120 | 1600 | 1600 | 1600 | 1600 | 1600 |
| ΦN(mm) | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| ΦP(mm) | 790 | 790 | 790 | 1010 | 1010 | 790 | 790 | 790 | 1010 | 1010 |
| T(mm) | 800 | 800 | 800 | 800 | 800 | 1200 | 1200 | 1200 | 1200 | 1200 |
| W(mm) | 350 | 350 | 350 | 350 | 350 | 400 | 400 | 400 | 400 | 400 |
| Model | Filter Diameter （mm） | Filter Height（mm） | Design Flow（m³/h） | Filter Area（m²） | Connections（inch/mm） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HK15800 | 800 | 1600 | 20.0 | 0.50 | 2"/63 | 455 | 170 |
| HK15900 | 900 | 1600 | 25.6 | 0.64 | 2"/63 | 585 | 230 |
| HK151000 | 1000 | 1600 | 31.6 | 0.79 | 2"/63 | 720 | 270 |
| HK151200 | 1200 | 1600 | 45.2 | 1.13 | 3"/90 | 1030 | 450 |
| HK151400 | 1400 | 1600 | 61.6 | 1.54 | 3"/90 | 1100 | 500 |
| HK20800 | 800 | 2100 | 15.0 | 0.50 | 2"/63 | 770 | 170 |
| HK20900 | 900 | 2100 | 19.0 | 0.64 | 2"/63 | 990 | 230 |
| HK201000 | 1000 | 2100 | 23.7 | 0.79 | 2"/63 | 1220 | 270 |
| HK201200 | 1200 | 2100 | 33.9 | 1.13 | 3"/90 | 1740 | 450 |
| HK201400 | 1400 | 2100 | 46.2 | 1.54 | 3"/90 | 2100 | 500 |
| Model | HK15800 | HK15900 | HK151000 | HK151200 | HK151400 | HK20800 | HK20900 | HK201000 | HK201200 | HK201400 |
| φD(mm) | 800 | 900 | 1000 | 1200 | 1400 | 800 | 900 | 100 | 1200 | 1400 |
| H(mm) | 1600 | 1600 | 1600 | 1600 | 1600 | 2100 | 2100 | 2100 | 2100 | 2100 |
| A(mm) | 550 | 550 | 550 | 650 | 650 | 800 | 800 | 800 | 800 | 720 |
| B(mm) | 150 | 150 | 150 | 180 | 190 | 150 | 150 | 150 | 180 | 190 |
| C(mm) | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
| φE(mm) | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| F(mm) | 520 | 520 | 520 | 600 | 600 | 520 | 520 | 520 | 600 | 600 |
| φK(mm) | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 |
| M(mm) | 1180 | 1200 | 1160 | 1100 | 1120 | 1650 | 1650 | 1650 | 1650 | 1650 |
| φN(mm) | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| φP(mm) | 790 | 790 | 790 | 1010 | 1240 | 790 | 790 | 790 | 1010 | 1240 |
| T(mm) | 800 | 800 | 800 | 800 | 800 | 1250 | 1250 | 1250 | 1250 | 1240 |
| W(mm) | 350 | 350 | 350 | 350 | 350 | 400 | 400 | 400 | 400 | 400 |
| Model | Filter Diameter （mm） | Filter Height（mm） | Design Flow（m³/h） | Filter Area（m²） | Connections（inch/mm） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HK15800N | 800 | 1600 | 20.0 | 0.50 | 2"/63 | 455 | 110 |
| HK15900N | 900 | 1600 | 25.6 | 0.64 | 2"/63 | 585 | 145 |
| HK151000N | 1000 | 1600 | 31.6 | 0.79 | 2"/63 | 720 | 175 |
| HK151200N | 1200 | 1600 | 45.2 | 1.13 | 3"/90 | 1030 | 255 |
| HK151400N | 1400 | 1600 | 61.6 | 1.54 | 3"/90 | 1100 | 320 |
| HK20800N | 800 | 2100 | 15.0 | 0.50 | 2"/63 | 770 | 110 |
| HK20900N | 900 | 2100 | 19.0 | 0.64 | 2"/63 | 990 | 145 |
| HK201000N | 1000 | 2100 | 23.7 | 0.79 | 2"/63 | 1220 | 175 |
| HK201200N | 1200 | 2100 | 33.9 | 1.13 | 3"/90 | 1740 | 255 |
| HK201400N | 1400 | 2100 | 46.2 | 1.54 | 3"/90 | 2100 | 320 |
| Model | HK15800N | HK15900N | HK151000N | HK151200N | HK151400N | HK20800N | HK20900N | HK201000N | HK201200N | HK201400N |
| φD(mm) | 800 | 900 | 1000 | 1200 | 1400 | 800 | 900 | 100 | 1200 | 1400 |
| H(mm) | 1600 | 1600 | 1600 | 1600 | 1600 | 2100 | 2100 | 2100 | 2100 | 2100 |
| A(mm) | 550 | 550 | 550 | 650 | 650 | 800 | 800 | 800 | 800 | 720 |
| B(mm) | 150 | 150 | 150 | 180 | 190 | 150 | 150 | 150 | 180 | 190 |
| C(mm) | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
| φE(mm) | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| F(mm) | 520 | 520 | 520 | 600 | 600 | 520 | 520 | 520 | 600 | 600 |
| φK(mm) | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 |
| M(mm) | 1120 | 1120 | 1120 | 1120 | 1120 | 1600 | 1600 | 1600 | 1600 | 1600 |
| φN(mm) | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| φP(mm) | 790 | 790 | 790 | 1010 | 1240 | 790 | 790 | 790 | 1010 | 1240 |
| T(mm) | 700 | 700 | 700 | 700 | 700 | 1200 | 1200 | 1200 | 1200 | 1200 |
| W(mm) | 350 | 350 | 350 | 350 | 350 | 400 | 400 | 400 | 400 | 400 |
