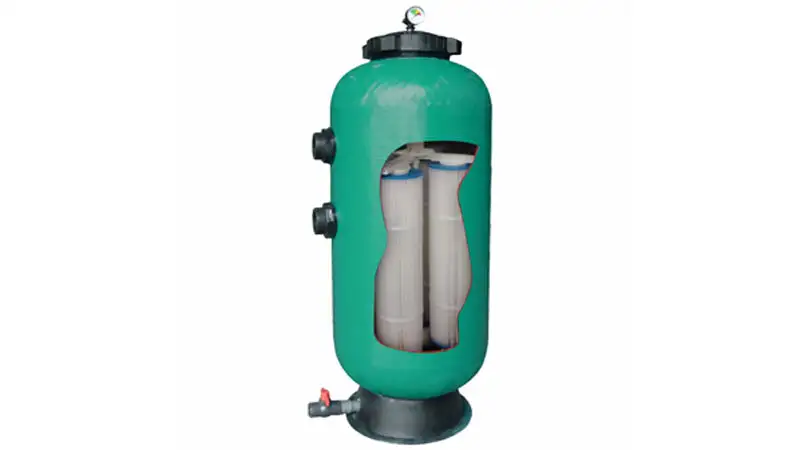

Poolking Fiberglass Cartridge/Diatomaceous Filter With 965~1270mm Height

POOLKING's KC/KD Series Convertible Cartridge/DE filters set a new standard in multi-media filter design and function. Filament wound structural fiberglass tanks are used for all models. Utilizing Poolking ’s patent pending unique internal component design, old fashioned molded split tanks are a thing of the past as all cartridge installation and removal is easily done through the large top tank opening. No longer is removal/replacement of a large leak prone center band required. Service time is cut down dramatically. A garden hose drain valve connection allows removal of internal tank debris away from the mechanical location. Convenience, features and value make either of the KC or KD convertible filters a logical choice for homeowners and pool professionals everywhere.

SEND INQUIRY NOW

1. Maximum working pressure: 250kPa/36psi/2.5bar

2. Factory Testing Pressure: 400kPa/58psi/4.0bar

3. Maximum Water Temperature: 50℃

SEND INQUIRY NOW

Product Details

Model: KD/KC

- UV inhibited filament wound structural fiberglass tanks. - 2”or 63mm Inlet/Outlet PVC unions.

- Either 6 way Multiport or Push-Pull valve available for DE models.

- Easy removal or installation of cartridges or DE elements. - cartridges in 225, 250, 350, 450 Sq. Ft sizes,fully convertible to DE.

- DE elements in 35, 45, 75, 90 Sq. Ft. sizes,fully convertible to Cartridges. -Large clear lock ring sealed lid for easy interior viewing and media installation/removal.

- Exclusive integral Inlet/Outlet manifold eliminates conventional bulkhead fittings. - Hose bib drain valve allows removal of tank debris away from mechanical area


Model	Filter Diameter（mm）	Filter Height（mm）	Design Flow （m³/h）	Filter Area （m²）	Connections （inch/mm）	Diatomite weight（kg）	ØD（mm）	H（mm）	A（mm）	B（mm）	C（mm）	ØP（mm）	E(mm)
KC225	500	965	19.08	20.9	2”/63	-	500	965	341	125	220	390	32
KC250	500	965	21.35	23.2	2”/63	-	500	965	341	125	220	390	32
KC350	500	1270	32.30	35.3	2”/63	-	500	1270	646	125	220	390	32
KC450	500	1270	34.07	41.8	2”/63	-	500	1270	646	125	220	390	32
KC520	500	1270	36.50	44.8	2”/63	-	500	1270	646	125	220	390	32
KD35	500	965	15.90	3.25	2”/63	1.59	500	965	341	125	220	390	32
KD45	500	965	20.44	4.18	2”/63	2.04	500	965	341	125	220	390	32
KD75	500	1270	34.07	6.97	2”/63	3.40	500	1270	646	125	220	390	32
KD90	500	1270	41.80	8.36	2”/63	4.08	500	1270	646	125	220	390	32
