butterfly valve for flow control at Wholesale Prices | Poolking
After years of solid and rapid development, Poolking has grown into one of the most professional and influential enterprises in China. butterfly valve for flow control We will do our best to serve customers throughout the whole process from product design, R&D, to delivery. Welcome to contact us for further information about our new product butterfly valve for flow control or our company.The tags such as 'light, efficient, eco-friendly and energy-saving' are labeled on this product by our customers who used it for several years.

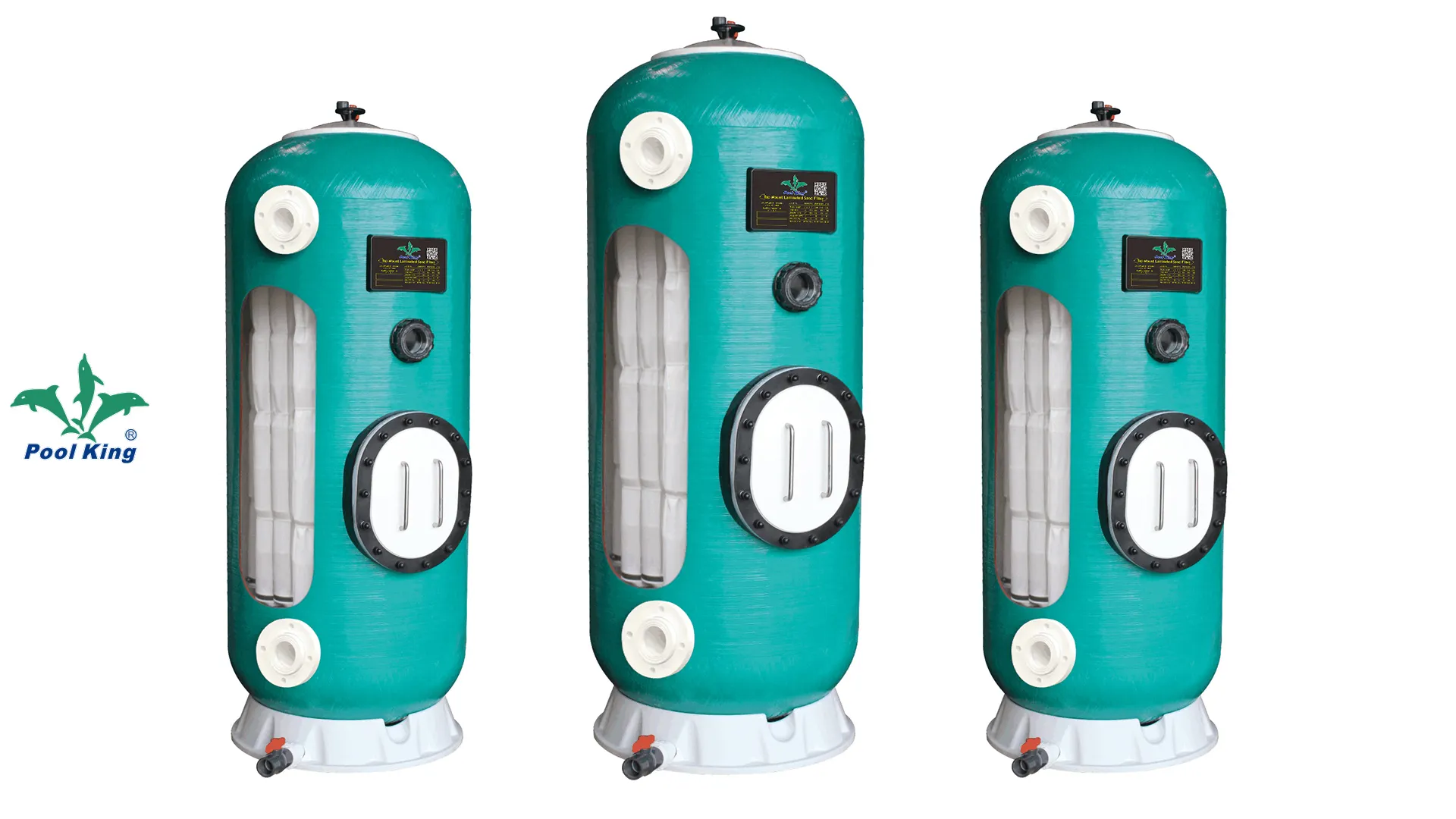

Model: DE
- DE filter is the most effective type than other filter.
- DE filter can be worked about two weeks before backwashing.
- Large-capacity filter rab provide maximum filter surface area for grater dirt-trapping capacity and longer periods between cleaning.
- Unique internal filter rod ensures optimum filtration and backwashing efficiency.
- Filter rab should be cleaned manually at last once per season.
- High filtering precision of D.E power to remove 1~2μm microorganism. The turbidity is about 0.1NTU after filtration.
| Model | Filter Diameter （mm） | Filter Height（mm） | Design Flow（m³/h） | Filter Area （m²） | Connections（inch/mm） | Required D.E（kg） | φD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | E（mm） | F（mm） | K（mm） | M（mm） | φP（mm） |
| DE800 | 800 | 2100 | 24 | 9.40 | 90 | 5 | 800 | 2100 | 400 | 150 | 1300 | 50 | 900 | 300*400 | 1350 | 790 |
| DE900 | 900 | 2100 | 55 | 11.00 | 90 | 6 | 900 | 2100 | 400 | 150 | 1300 | 50 | 900 | 300*400 | 1350 | 790 |
| DE1000 | 1000 | 2100 | 75 | 15.00 | 110 | 8 | 1000 | 2100 | 400 | 150 | 1300 | 50 | 900 | 300*400 | 1350 | 790 |
| DE1200 | 1200 | 2300 | 117 | 23.40 | 110 | 13 | 1200 | 2300 | 500 | 180 | - | 50 | 900 | 300*400 | 1400 | 1010 |
| DE1400 | 1400 | 2350 | 163 | 32.60 | 160 | 19 | 1400 | 2350 | 600 | 165 | - | 63 | 900 | 300*400 | 1400 | 1215 |
| DE1600 | 1600 | 2350 | 203 | 40.60 | 160 | 22 | 1600 | 2350 | 600 | 215 | - | 63 | 900 | 300*400 | 1400 | 1450 |
| DE1800 | 1800 | 2350 | 267 | 53.40 | 200 | 30 | 1800 | 2450 | 650 | 215 | - | 63 | 1000 | 300*400 | 1450 | 1610 |
| Model | Filter Diameter（mm） | Filter Height（mm） | Design Flow（m³/h） | Filter Area （m²） | Connections（inch/mm） | Required D.E （kg） | φD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | φP（mm） |
| DE650 | 635 | 1310 | 18.0 | 3.64 | 2"/63 | 2.2 | 635 | 1310 | 700 | 95 | 220 | 565 |
| DE700 | 700 | 1340 | 25.0 | 5.07 | 2"/63 | 3.0 | 700 | 1340 | 730 | 95 | 220 | 565 |
