Plastic Topmount Sand Filter With 4 Way Valve From 350~700mm For Spa Pools

Name: Plastic Topmount Sand Filter With 4 Way Valve From 350~700mm For Spa Pools
Uploaded: 2021-09-28T09:06:01+08:00
Duration: 40 s
Description: This plastic sand filter is equipped with a 4 -way multiport valve which is constructed with sturdy ABS and marine - grade stainless steel . With 6 different tank diameter sizes ranging from 14” to 28”, that offers pool professionals the ability to provide the perfect size filter for every application.

This plastic sand filter is equipped with a 4 -way multiport valve which is constructed with sturdy ABS and marine - grade stainless steel . With 6 different tank diameter sizes ranging from 14” to 28”, that offers pool professionals the ability to provide the perfect size filter for every application.

SEND INQUIRY NOW

1. Maximum working pressure: 200kpa/29psi/2.0bar.

2. Factory Testing Pressure: 300kpa/44psi/3.0bar.

3. Maximum Water Temperature: 40°C(104F)

4. Size of Gravel: 1mm-2mm

5. Size of Silica Sand: 0.5~0.8mm

SEND INQUIRY NOW

Product Details

Model: EPF

- Filter body are made of high density polyethylene material,anti-corrosive,safe and environmental.

- Clamp lock designed to allow 360degree rotation to simplify installation.

- Removable thread socket PVC unions in imperial or metric size.

- Integral sight glass for backwash clarity confirmation.

- Enconomic 4-way valve suitable for 14”~28” top mount filters.

Model	Filter Diameter （mm）	Filter Height（mm）	Design Flow（m³/h）	Filter Area（m²）	Connections（inch/mm）	Sand Weight（kg）
EPF350	350	645	5	0.10	1.5"/50	25
EPF400	400	670	6	0.13	1.5"/50	30
EPF450	450	715	8	0.16	1.5"/50	45
EPF500	530	760	10	0.22	1.5"/50	85
EPF650	630	860	15	0.32	1.5"/50	150
EPF700	700	930	19	0.38	1.5"/50	200

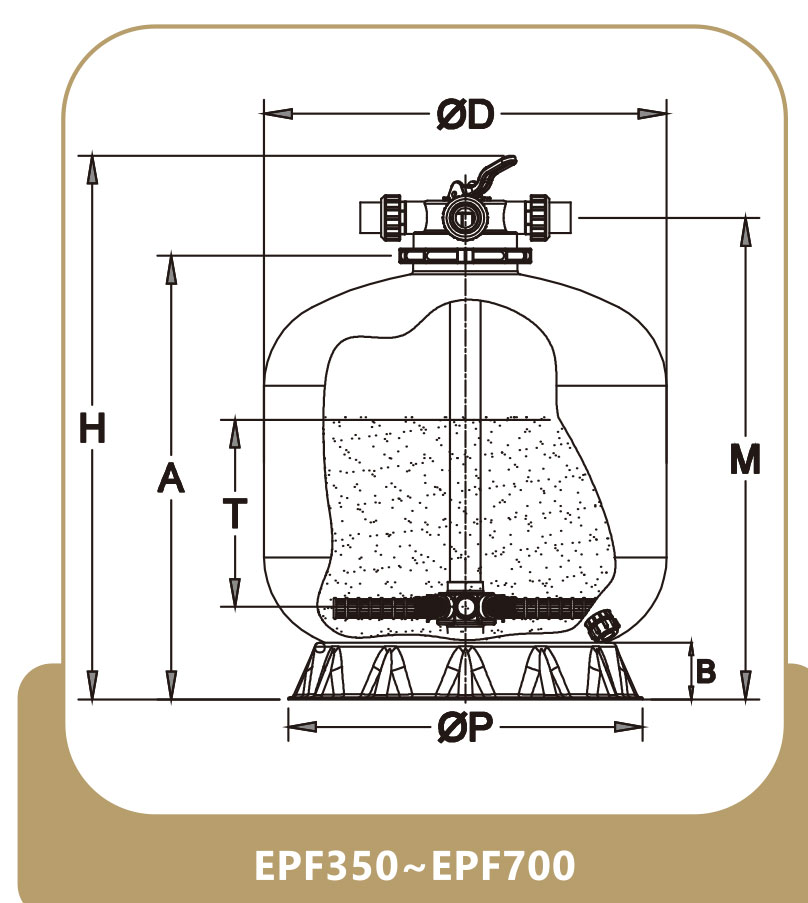

砂缸(英)-23_06

Model	EPF350	EPF400	EPF450	EPF500	EPF6500	EPF700
ØD(mm)	350	400	450	530	630	700
H（mm）	645	670	715	760	860	930
A（mm）	485	510	555	600	700	770
B（mm）	73	73	75	75	95	95
M（mm）	545	570	615	660	760	830
ØP(mm)	320	320	390	390	565	565
T（mm）	150	160	220	260	370	450
