Over the years, Poolking has been offering customers high-quality products and efficient after-sales services with the aim of bringing unlimited benefits for them. marine tank uv sterilizer Poolking is a comprehensive manufacturer and supplier of high-quality products and one-stop service. We will, as always, actively provide prompt services such. For more details about our marine tank uv sterilizer and other products, just let us know.During the developing of Poolking marine tank uv sterilizer, several important factors are considered such as sink level requirements, component level requirements, system level requirements, and chassis level requirements, to achieve the optimized heat transfer effect.

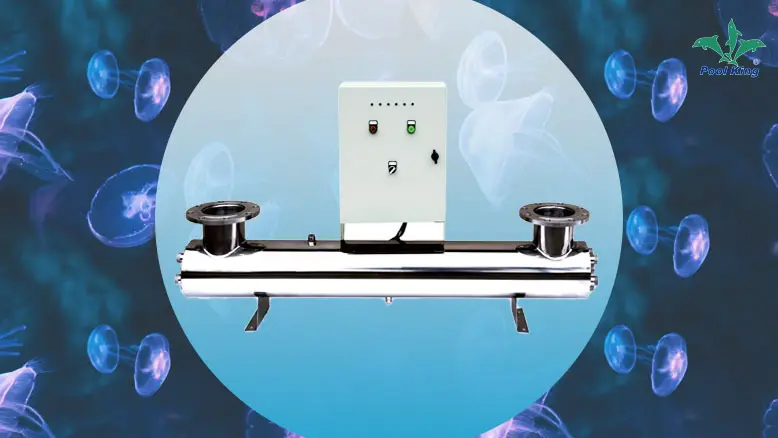

- The reactor use 304 polished stainless steel, the smooth interior leaves no blind spot for sterilization.
- The ultraviolet light tube is equipped with a quartz sleeve, to ensure optimal working temperature.
- The electrical configuration of the device is suitable to most electrical specifications.
- Special exterior design makes the device convenient to use.
- All rounded sterilization, highly efficient, sterilization rate up to 99.9%.
- High output, physical sterilization, no side effects, no secondary pollution.
- The amount of water that can be sterilized ranges from 5.5-250T/H. The device adapts to swimming pools, spa andwater parks of various sizes.
Technical Parameters:
Model | Power (w) | Flow (m3/h) | Voltage (v) | material | Dimension (mm) | Light Power (w) | Connections (Dn) |
UVCn-78 | 78 | 5.5 | 220V/50Hz | 304SS | 930×108×720 | 39×2 | 32 |
UVCn-160 | 160 | 12 | 220V/50Hz | 304SS | 930×108×720 | 80×2 | 50 |
UVC-240 | 240 | 20 | 220V/50Hz | 304SS | 930×159×780 | 80×3 | 65 |
UVC-320 | 320 | 25 | 220V/50Hz | 304SS | 930×159×780 | 80×4 | 80 |
UVC-465 | 465 | 45 | 220V/50Hz | 304SS | 1630×219×830 | 155×3 | 100 |
UVC-620 | 620 | 45 | 220V/50Hz | 304SS | 1630×219×830 | 155×4 | 80/100 |
UVC-775 | 775 | 60 | 220V/50Hz | 304SS | 1630×219×1080 | 155×5 | 150 |
UVC-930 | 930 | 80 | 220V/50Hz | 304SS | 1630×219×1180 | 155×6 | 150 |
UVC-1280 | 1280 | 90 | 220V/50Hz | 304SS | 1630×325×1180 | 320×4 | 150 |
UVCP-1085 | 1085 | 100 | 220V/50Hz | 304SS | 1630×325×1180 | 155×7 | 150 |
UVCP-1395 | 1395 | 125 | 220V/50Hz | 304SS | 1630×325×1200 | 155×9 | 150 |
UVCP-1600 | 1600 | 110 | 220V/50Hz | 304SS | 1630×325×1400 | 320×5 | 150 |
UVCP-1705 | 1705 | 150 | 220V/50Hz | 304SS | 1630×325×1500 | 155×11 | 200 |
UVCP-1920 | 1920 | 130 | 220V/50Hz | 304SS | 1630×325×1500 | 320×6 | 200 |
UVCP-2240 | 2240 | 150 | 220V/50Hz | 304SS | 1630×377×1500 | 320×7 | 200 |
UVCP-2560 | 2560 | 180 | 220V/50Hz | 304SS | 1630×377×1500 | 320×8 | 200 |
UVCP-2880 | 2880 | 200 | 220V/50Hz | 304SS | 1630×377×1500 | 320×9 | 200 |
UVCP-3480 | 3480 | 250 | 220V/50Hz | 304SS | 1630×426×1500 | 320×12 | 250 |
Note:
UV lamp working life ≧ 9000 hours.
UVCn :threaded connectionw, ABS control box;
UVC :flange connections, ABS control box;
UVCP :flange connections ,painted carbon steel control box.
Can be configured according to customer needs manual cleaning device or automatic cleaning device or varietyof advanced omline monitoring instruments and remote control system.
