Poolking | New equipment aquarium factory
Guided by scientific and technological innovation, Poolking always keeps outward-oriented and sticks to the positive development on the basis of technological innovation. equipment aquarium Poolking is a comprehensive manufacturer and supplier of high-quality products and one-stop service. We will, as always, actively provide prompt services such. For more details about our equipment aquarium and other products, just let us know.In the designing stage of Poolking equipment aquarium, thermodynamics and the law of heat conduction theories are taken into consideration by the designers.

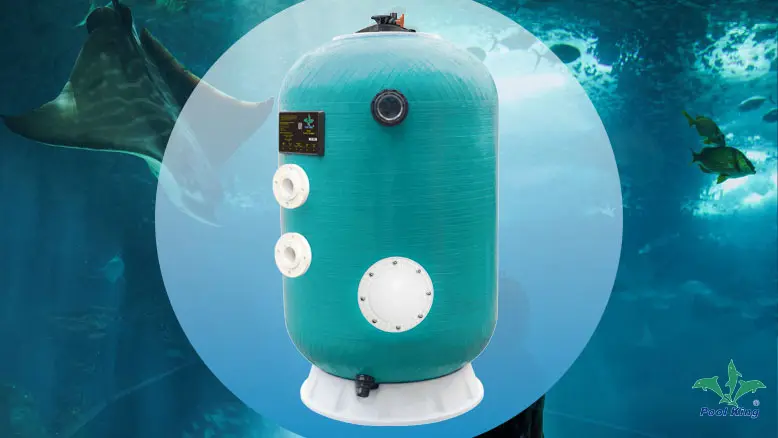

Model: HKA/HK/HKN
- Fiberglass filter body is UV and corrosion Resistant.
- 0.8~1.2M BED depth for finer filtration.
- Lateral with tight gaps are able to keep out filter media and dirt particles.
- Sight glass and Sand drain are available in option.
- Nozzle plate system ensures maximum performance and save up to 25% of backwash water.
- Lateral and nozzle plate are available in option. - Flange or 6way multiport valve are available in option.
| Model | Filter Diameter （mm） | Filter Height（mm） | Design Flow（m³/h） | Filter Area（m²） | Connections（inch/mm） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HK15800A | 800 | 1600 | 20.0 | 0.50 | 2"/63 | 455 | 170 |
| HK15900A | 900 | 1600 | 25.6 | 0.64 | 2"/63 | 585 | 230 |
| HK151000A | 1000 | 1600 | 31.6 | 0.79 | 2"/63 | 720 | 270 |
| HK151200A | 1200 | 1600 | 40.0 | 1.13 | 2.5"/75 | 1030 | 450 |
| HK151200A-2.5 | 1200 | 1600 | 45.2 | 1.13 | 2"/63 | 1130 | 450 |
| HK20800A | 800 | 2100 | 15.0 | 0.50 | 2"/63 | 770 | 170 |
| HK20900A | 900 | 2100 | 19.0 | 0.64 | 2"/63 | 990 | 230 |
| HK201000A | 1000 | 2100 | 23.7 | 0.79 | 2"/63 | 1220 | 270 |
| HK201200A | 1200 | 2100 | 30.0 | 1.13 | 2"/63 | 1740 | 450 |
| HK201200A-2.5 | 1200 | 2100 | 33.9 | 1.13 | 2.5"/75 | 1740 | 450 |
| Model | HK15800A | HK15900A | HK151000A | HK151200A | HK151200A-2.5 | HK20800A | HK20900A | HK201000A | HK201200A | HK201200A-2.5 |
| ΦD(mm) | 800 | 900 | 1000 | 1200 | 1200 | 800 | 900 | 1000 | 1200 | 1200 |
| H(mm) | 1600 | 1600 | 1600 | 1600 | 1600 | 2100 | 2100 | 2100 | 2100 | 2100 |
| A(mm) | 700 | 700 | 700 | 700 | 700 | 1000 | 1000 | 1000 | 1000 | 1000 |
| B(mm) | 150 | 150 | 150 | 180 | 180 | 150 | 150 | 150 | 180 | 180 |
| C(mm) | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| ΦE(mm) | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| F(mm) | 520 | 520 | 520 | 600 | 600 | 520 | 520 | 520 | 600 | 600 |
| ΦK(mm) | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 |
| M(mm) | 1120 | 1120 | 1120 | 1120 | 1120 | 1600 | 1600 | 1600 | 1600 | 1600 |
| ΦN(mm) | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| ΦP(mm) | 790 | 790 | 790 | 1010 | 1010 | 790 | 790 | 790 | 1010 | 1010 |
| T(mm) | 800 | 800 | 800 | 800 | 800 | 1200 | 1200 | 1200 | 1200 | 1200 |
| W(mm) | 350 | 350 | 350 | 350 | 350 | 400 | 400 | 400 | 400 | 400 |
| Model | Filter Diameter （mm） | Filter Height（mm） | Design Flow（m³/h） | Filter Area（m²） | Connections（inch/mm） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HK15800 | 800 | 1600 | 20.0 | 0.50 | 2"/63 | 455 | 170 |
| HK15900 | 900 | 1600 | 25.6 | 0.64 | 2"/63 | 585 | 230 |
| HK151000 | 1000 | 1600 | 31.6 | 0.79 | 2"/63 | 720 | 270 |
| HK151200 | 1200 | 1600 | 45.2 | 1.13 | 3"/90 | 1030 | 450 |
| HK151400 | 1400 | 1600 | 61.6 | 1.54 | 3"/90 | 1100 | 500 |
| HK20800 | 800 | 2100 | 15.0 | 0.50 | 2"/63 | 770 | 170 |
| HK20900 | 900 | 2100 | 19.0 | 0.64 | 2"/63 | 990 | 230 |
| HK201000 | 1000 | 2100 | 23.7 | 0.79 | 2"/63 | 1220 | 270 |
| HK201200 | 1200 | 2100 | 33.9 | 1.13 | 3"/90 | 1740 | 450 |
| HK201400 | 1400 | 2100 | 46.2 | 1.54 | 3"/90 | 2100 | 500 |
| Model | HK15800 | HK15900 | HK151000 | HK151200 | HK151400 | HK20800 | HK20900 | HK201000 | HK201200 | HK201400 |
| φD(mm) | 800 | 900 | 1000 | 1200 | 1400 | 800 | 900 | 100 | 1200 | 1400 |
| H(mm) | 1600 | 1600 | 1600 | 1600 | 1600 | 2100 | 2100 | 2100 | 2100 | 2100 |
| A(mm) | 550 | 550 | 550 | 650 | 650 | 800 | 800 | 800 | 800 | 720 |
| B(mm) | 150 | 150 | 150 | 180 | 190 | 150 | 150 | 150 | 180 | 190 |
| C(mm) | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
| φE(mm) | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| F(mm) | 520 | 520 | 520 | 600 | 600 | 520 | 520 | 520 | 600 | 600 |
| φK(mm) | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 |
| M(mm) | 1180 | 1200 | 1160 | 1100 | 1120 | 1650 | 1650 | 1650 | 1650 | 1650 |
| φN(mm) | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| φP(mm) | 790 | 790 | 790 | 1010 | 1240 | 790 | 790 | 790 | 1010 | 1240 |
| T(mm) | 800 | 800 | 800 | 800 | 800 | 1250 | 1250 | 1250 | 1250 | 1240 |
| W(mm) | 350 | 350 | 350 | 350 | 350 | 400 | 400 | 400 | 400 | 400 |
| Model | Filter Diameter （mm） | Filter Height（mm） | Design Flow（m³/h） | Filter Area（m²） | Connections（inch/mm） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HK15800N | 800 | 1600 | 20.0 | 0.50 | 2"/63 | 455 | 110 |
| HK15900N | 900 | 1600 | 25.6 | 0.64 | 2"/63 | 585 | 145 |
| HK151000N | 1000 | 1600 | 31.6 | 0.79 | 2"/63 | 720 | 175 |
| HK151200N | 1200 | 1600 | 45.2 | 1.13 | 3"/90 | 1030 | 255 |
| HK151400N | 1400 | 1600 | 61.6 | 1.54 | 3"/90 | 1100 | 320 |
| HK20800N | 800 | 2100 | 15.0 | 0.50 | 2"/63 | 770 | 110 |
| HK20900N | 900 | 2100 | 19.0 | 0.64 | 2"/63 | 990 | 145 |
| HK201000N | 1000 | 2100 | 23.7 | 0.79 | 2"/63 | 1220 | 175 |
| HK201200N | 1200 | 2100 | 33.9 | 1.13 | 3"/90 | 1740 | 255 |
| HK201400N | 1400 | 2100 | 46.2 | 1.54 | 3"/90 | 2100 | 320 |
| Model | HK15800N | HK15900N | HK151000N | HK151200N | HK151400N | HK20800N | HK20900N | HK201000N | HK201200N | HK201400N |
| φD(mm) | 800 | 900 | 1000 | 1200 | 1400 | 800 | 900 | 100 | 1200 | 1400 |
| H(mm) | 1600 | 1600 | 1600 | 1600 | 1600 | 2100 | 2100 | 2100 | 2100 | 2100 |
| A(mm) | 550 | 550 | 550 | 650 | 650 | 800 | 800 | 800 | 800 | 720 |
| B(mm) | 150 | 150 | 150 | 180 | 190 | 150 | 150 | 150 | 180 | 190 |
| C(mm) | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
| φE(mm) | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| F(mm) | 520 | 520 | 520 | 600 | 600 | 520 | 520 | 520 | 600 | 600 |
| φK(mm) | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 |
| M(mm) | 1120 | 1120 | 1120 | 1120 | 1120 | 1600 | 1600 | 1600 | 1600 | 1600 |
| φN(mm) | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| φP(mm) | 790 | 790 | 790 | 1010 | 1240 | 790 | 790 | 790 | 1010 | 1240 |
| T(mm) | 700 | 700 | 700 | 700 | 700 | 1200 | 1200 | 1200 | 1200 | 1200 |
| W(mm) | 350 | 350 | 350 | 350 | 350 | 400 | 400 | 400 | 400 | 400 |
Workshop:
Transportation:
Best swimming pool equipment manufacturer - Poolkin will continue for innovative management and excellent quality. Imagination will subvert the future, intelligent manufacturing will lead the era, that's the motto of Poolking!
