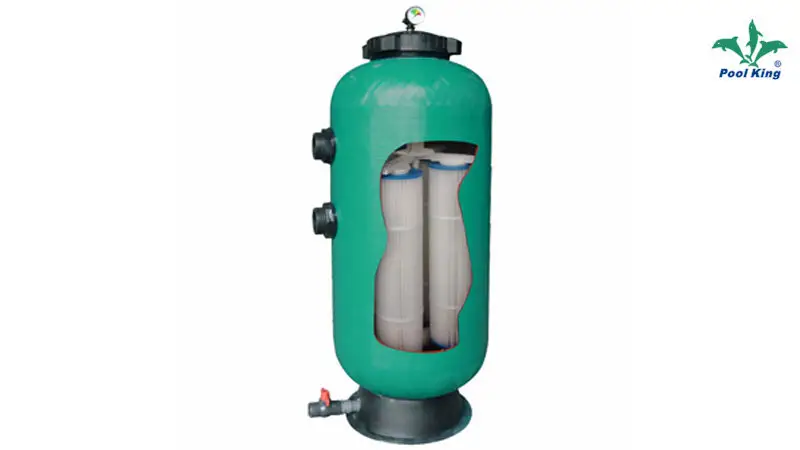

Model: KD/KC
- UV inhibited filament wound structural fiberglass tanks. - 2”or 63mm Inlet/Outlet PVC unions.
- Either 6 way Multiport or Push-Pull valve available for DE models.
- Easy removal or installation of cartridges or DE elements. - cartridges in 225, 250, 350, 450 Sq. Ft sizes,fully convertible to DE.
- DE elements in 35, 45, 75, 90 Sq. Ft. sizes,fully convertible to Cartridges. -Large clear lock ring sealed lid for easy interior viewing and media installation/removal.
- Exclusive integral Inlet/Outlet manifold eliminates conventional bulkhead fittings. - Hose bib drain valve allows removal of tank debris away from mechanical area
Model | Filter Diameter(mm) | Filter Height(mm) | Design Flow (m³/h) | Filter Area (m²) | Connections (inch/mm) | Diatomite weight(kg) | ØD(mm) | H(mm) | A(mm) | B(mm) | C(mm) | ØP(mm) | E(mm) |
KC225 | 500 | 965 | 19.08 | 20.9 | 2”/63 | - | 500 | 965 | 341 | 125 | 220 | 390 | 32 |
KC250 | 500 | 965 | 21.35 | 23.2 | 2”/63 | - | 500 | 965 | 341 | 125 | 220 | 390 | 32 |
KC350 | 500 | 1270 | 32.30 | 35.3 | 2”/63 | - | 500 | 1270 | 646 | 125 | 220 | 390 | 32 |
KC450 | 500 | 1270 | 34.07 | 41.8 | 2”/63 | - | 500 | 1270 | 646 | 125 | 220 | 390 | 32 |
KC520 | 500 | 1270 | 36.50 | 44.8 | 2”/63 | - | 500 | 1270 | 646 | 125 | 220 | 390 | 32 |
KD35 | 500 | 965 | 15.90 | 3.25 | 2”/63 | 1.59 | 500 | 965 | 341 | 125 | 220 | 390 | 32 |
KD45 | 500 | 965 | 20.44 | 4.18 | 2”/63 | 2.04 | 500 | 965 | 341 | 125 | 220 | 390 | 32 |
KD75 | 500 | 1270 | 34.07 | 6.97 | 2”/63 | 3.40 | 500 | 1270 | 646 | 125 | 220 | 390 | 32 |
KD90 | 500 | 1270 | 41.80 | 8.36 | 2”/63 | 4.08 | 500 | 1270 | 646 | 125 | 220 | 390 | 32 |
