Custom uv sterilizer marine aquarium suppliers | Poolking
Set up years ago, Poolking is a professional manufacturer and also a supplier with strong capabilities in production, design, and R&D. uv sterilizer marine aquarium We promise that we provide every customer with high-quality products including uv sterilizer marine aquarium and comprehensive services. If you want to know more details, we are glad to tell you.Poolking is processed deeply with professional techniques, including drill hole, stretch bending, milling, welding, fabrication, as well as other chemical processes.

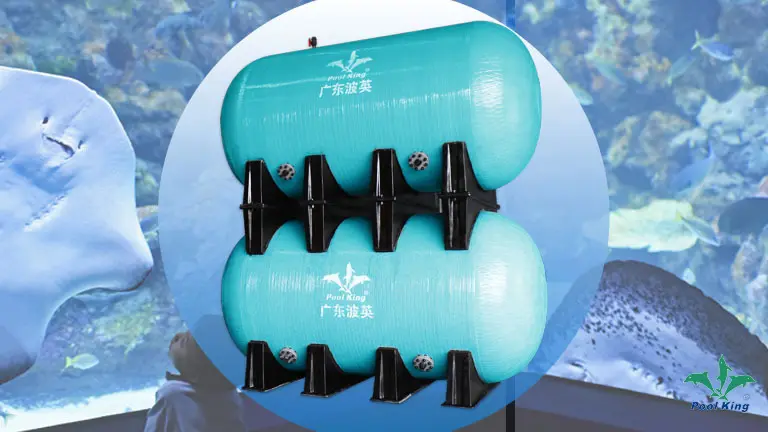

Model: HL
- It is made of multiple layers of anti-corrosion materials. The outer layer is made of CNC multi-axis fiberglass. The internal piping system is uniform and reasonable structure.
- Strong fiberglass base can suppor the big filter body. - 100% pressure testing before packing.
- Exclusive features for superior performance. - Offering attractive and reasonable performance
| Diameter:3000mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL305000 | 3000 | 3230 | 20 | 200/8" | 265 | 13.24 | 26300 | 6875 |
| 30 | 250/10" | 397 | ||||||
| 40 | 315/12" | 530 | ||||||
| HL306000 | 3000 | 3230 | 20 | 200/8" | 322 | 16.08 | 31920 | 8450 |
| 30 | 315/12" | 482 | ||||||
| 40 | 315/12" | 643 | ||||||
| HL307000 | 3000 | 3230 | 20 | 250/10" | 378 | 18.92 | 37545 | 10025 |
| 30 | 315/12" | 568 | ||||||
| 40 | 315/12" | 756 | ||||||
| HL308000 | 3000 | 3230 | 20 | 315/12" | 435 | 21.76 | 43170 | 11600 |
| 30 | 315/12" | 653 | ||||||
| 40 | 355/14" | 870 | ||||||
| Diameter:2500mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL254000 | 2500 | 2710 | 20 | 200/8" | 172 | 8.62 | 13500 | 3725 |
| 30 | 200/8" | 258 | ||||||
| 40 | 250/10" | 345 | ||||||
| HL254500 | 2500 | 2710 | 20 | 200/8" | 196 | 9.80 | 15350 | 4300 |
| 30 | 250/10" | 294 | ||||||
| 40 | 250/10" | 392 | ||||||
| HL254500 | 2500 | 2710 | 20 | 200/8" | 220 | 10.98 | 17200 | 4850 |
| 30 | 250/10" | 329 | ||||||
| 40 | 315/12" | 439 | ||||||
| HL256000 | 2500 | 2710 | 20 | 200/8" | 267 | 13.34 | 20900 | 5975 |
| 30 | 250/10" | 400 | ||||||
| 40 | 315/12" | 533 | ||||||
| HL257000 | 2500 | 2710 | 20 | 250/10" | 314 | 15.70 | 24600 | 7100 |
| 30 | 315/12" | 471 | ||||||
| 40 | 315/12" | 628 | ||||||
| Diameter:2350mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL234000 | 2350 | 2560 | 20 | 200/8" | 172 | 8.17 | 12800 | 3650 |
| 30 | 200/8" | 258 | ||||||
| 40 | 250/10" | 345 | ||||||
| HL234500 | 2350 | 2560 | 20 | 200/8" | 196 | 9.28 | 14525 | 4200 |
| 30 | 250/10" | 294 | ||||||
| 40 | 250/10" | 392 | ||||||
| HL235000 | 2350 | 2560 | 20 | 200/8" | 220 | 10.40 | 16250 | 4750 |
| 30 | 250/10" | 329 | ||||||
| 40 | 250/10" | 439 | ||||||
| HL236000 | 2350 | 2560 | 20 | 200/8" | 267 | 12.62 | 19700 | 5850 |
| 30 | 250/10" | 400 | ||||||
| 40 | 315/12" | 533 | ||||||
| HL237000 | 2350 | 2560 | 20 | 250/10" | 314 | 14.86 | 23150 | 6950 |
| 30 | 315/12" | 471 | ||||||
| 40 | 315/12" | 628 | ||||||
| Diameter:2000mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL202500 | 2000 | 2220 | 20 | 160/6" | 87 | 4.34 | 6000 | 1050 |
| 30 | 160/6" | 130 | ||||||
| 40 | 200/8" | 174 | ||||||
| HL203000 | 2000 | 2220 | 20 | 160/6" | 106 | 5.30 | 7450 | 1300 |
| 30 | 160/6" | 159 | ||||||
| 40 | 200/8" | 212 | ||||||
| HL203500 | 2000 | 2220 | 20 | 160/6" | 125 | 6.25 | 8900 | 1550 |
| 30 | 200/8" | 187 | ||||||
| 40 | 200/8" | 250 | ||||||
| HL204000 | 2000 | 2220 | 20 | 160/6" | 144 | 7.21 | 10350 | 1800 |
| 30 | 200/8" | 216 | ||||||
| 40 | 250/10" | 288 | ||||||
| HL204500 | 2000 | 2220 | 20 | 200/8" | 163 | 8.16 | 11800 | 2080 |
| 30 | 200/8" | 245 | ||||||
| 40 | 250/10" | 326 | ||||||
| Diameter:1800mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL182500 | 1800 | 2050 | 20 | 160/6" | 75 | 3.74 | 4850 | 980 |
| 30 | 160/6" | 112 | ||||||
| 40 | 160/6" | 150 | ||||||
| HL183000 | 1800 | 2050 | 20 | 160/6" | 92 | 4.58 | 5930 | 1230 |
| 30 | 160/6" | 137 | ||||||
| 40 | 200/8" | 183 | ||||||
| HL183500 | 1800 | 2050 | 20 | 160/6" | 108 | 5.41 | 7000 | 1480 |
| 30 | 200/8" | 162 | ||||||
| 40 | 200/8" | 216 | ||||||
| HL184000 | 1800 | 2050 | 20 | 160/6" | 125 | 6.25 | 8080 | 1700 |
| 30 | 200/8" | 187 | ||||||
| 40 | 250/10" | 250 | ||||||
| Diameter:1600mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL161900 | 1600 | 1830 | 20 | 110/4" | 49 | 2.47 | 2800 | 600 |
| 30 | 160/6" | 74 | ||||||
| 40 | 160/6" | 99 | ||||||
| HL162500 | 1600 | 1830 | 20 | 110/4" | 67 | 3.36 | 3800 | 850 |
| 30 | 160/6" | 101 | ||||||
| 40 | 160/6" | 134 | ||||||
| HL163000 | 1600 | 1830 | 20 | 160/6" | 82 | 4.10 | 4700 | 1050 |
| 30 | 160/6" | 123 | ||||||
| 40 | 200/8" | 164 | ||||||
| Diameter:1400mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL141900 | 1400 | 1600 | 20 | 110/4" | 45 | 2.23 | 2000 | 580 |
| 30 | 110/4" | 67 | ||||||
| 40 | 160/6" | 89 | ||||||
| HL142500 | 1400 | 1600 | 20 | 110/4" | 60 | 3.02 | 2750 | 800 |
| 30 | 160/6" | 91 | ||||||
| 40 | 160/6" | 121 | ||||||
| HL143000 | 1400 | 1600 | 20 | 160/6" | 73 | 3.67 | 3375 | 1000 |
| 30 | 160/6" | 110 | ||||||
| 40 | 160/6" | 147 | ||||||
| Diameter:1200mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL121900 | 1200 | 1390 | 20 | 90/3" | 39 | 1.96 | 1100 | 430 |
| 30 | 110/4" | 59 | ||||||
| 40 | 160/6" | 79 | ||||||
| HL122300 | 1200 | 1390 | 20 | 110/4" | 48 | 2.42 | 1430 | 500 |
| 30 | 160/6" | 73 | ||||||
| 40 | 160/6" | 97 | ||||||
| HL122500 | 1200 | 1390 | 20 | 110/4" | 53 | 2.65 | 1750 | 700 |
| 30 | 160/6" | 79 | ||||||
| 40 | 160/6" | 106 | ||||||
| HL122700 | 1200 | 1390 | 20 | 110/4" | 57 | 2.87 | 2080 | 830 |
| 30 | 160/6" | 86 | ||||||
| 40 | 160/6" | 115 | ||||||
| HL123000 | 1200 | 1390 | 20 | 110/4" | 64 | 3.21 | 2330 | 925 |
| 30 | 160/6" | 96 | ||||||
| 40 | 160/6" | 129 | ||||||
Diameter:3000mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL305000 | 3000 | 3230 | 900 | 510 | 1500 | 160 | 2310 | 5000 | 5110 | 1000-1200 | 550 |
| HL306000 | 3000 | 3230 | 900 | 510 | 1500 | 160 | 2310 | 6000 | 6110 | 1000-1200 | 550 |
| HL307000 | 3000 | 3230 | 900 | 510 | 1500 | 160 | 2310 | 7000 | 7110 | 1000-1200 | 550 |
| HL308000 | 3000 | 3230 | 900 | 510 | 1500 | 160 | 2310 | 8000 | 8110 | 1000-1200 | 550 |
Diameter:2500mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL254000 | 2500 | 2710 | 1360 | 450 | 710 | 160 | 1900 | 4000 | 4380 | 1000-1200 | 550 |
| HL254500 | 2500 | 2710 | 1360 | 450 | 710 | 160 | 1900 | 4500 | 4940 | 1000-1200 | 550 |
| HL255000 | 2500 | 2710 | 1360 | 450 | 710 | 160 | 1900 | 5000 | 5440 | 1000-1200 | 550 |
| HL256000 | 2500 | 2710 | 625 | 450 | 1400 | 160 | 1900 | 6000 | 6110 | 1000-1200 | 550 |
| HL257000 | 2500 | 2710 | 625 | 450 | 1400 | 160 | 1900 | 7000 | 7110 | 1000-1200 | 550 |
Diameter:2350mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL234000 | 2350 | 2560 | 1270 | 300 | 710 | 160 | 1750 | 4000 | 4380 | 1000-1200 | 500 |
| HL534500 | 2350 | 2560 | 1270 | 300 | 710 | 160 | 1750 | 4500 | 4880 | 1000-1200 | 500 |
| HL235000 | 2350 | 2560 | 1270 | 300 | 710 | 160 | 1750 | 5000 | 5440 | 1000-1200 | 500 |
| HL236000 | 2350 | 2560 | 720 | 300 | 1350 | 160 | 1750 | 6000 | 6110 | 1000-1200 | 500 |
| HL237000 | 2350 | 2560 | 720 | 300 | 1350 | 160 | 1750 | 7000 | 7110 | 1000-1200 | 500 |
Diameter:2000mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL205000 | 2000 | 2220 | 1090 | 330 | 550 | 160 | 1490 | 2500 | 2730 | 1100 | 400 |
| HL203000 | 2000 | 2220 | 1090 | 330 | 550 | 160 | 1490 | 3000 | 3230 | 1100 | 400 |
| HL203500 | 2000 | 2220 | 1090 | 330 | 550 | 160 | 1490 | 3500 | 3730 | 1100 | 400 |
| HL20400 | 2000 | 2220 | 1090 | 330 | 550 | 160 | 1490 | 4000 | 4230 | 1100 | 400 |
| HL204500 | 2000 | 2220 | 1090 | 330 | 550 | 160 | 1490 | 4500 | 4730 | 1100 | 400 |
Diameter:1800mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL182500 | 1800 | 2050 | 1040 | 300 | 550 | 160 | 1400 | 2500 | 2700 | 1000 | 300 |
| HL183500 | 1800 | 2050 | 1040 | 300 | 550 | 160 | 1400 | 3000 | 3200 | 1000 | 300 |
| HL183500 | 1800 | 2050 | 1040 | 300 | 550 | 160 | 1400 | 3500 | 3700 | 1000 | 300 |
| HL184000 | 1800 | 2050 | 1040 | 300 | 550 | 160 | 1400 | 4000 | 4200 | 1000 | 300 |
Diameter:1600mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL161900 | 1600 | 1830 | 925 | 300 | 450 | 110 | 1230 | 1900 | 2100 | 950 | 250 |
| HL162500 | 1600 | 1830 | 925 | 300 | 450 | 110 | 1230 | 2500 | 2700 | 950 | 250 |
| HL163000 | 1600 | 1830 | 925 | 300 | 450 | 110 | 1230 | 3000 | 2300 | 950 | 250 |
Diameter:1400mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL141900 | 1400 | 1600 | 810 | 300 | 400 | 110 | 960 | 1900 | 2050 | 750 | 225 |
| HL142500 | 1400 | 1600 | 810 | 300 | 400 | 110 | 960 | 2500 | 2450 | 750 | 225 |
| HL146000 | 1400 | 1600 | 810 | 300 | 400 | 110 | 960 | 3000 | 3150 | 750 | 225 |
Diameter:1200mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL121900 | 1200 | 1390 | 725 | 250 | 340 | 80 | 900 | 1900 | 2050 | 550 | 225 |
| HL122300 | 1200 | 1390 | 725 | 250 | 340 | 80 | 900 | 2300 | 2450 | 550 | 225 |
| HL122500 | 1200 | 1390 | 725 | 250 | 340 | 80 | 900 | 2500 | 2650 | 550 | 225 |
| HL122700 | 1200 | 1390 | 725 | 250 | 340 | 80 | 900 | 2700 | 2850 | 550 | 225 |
| HL123000 | 1200 | 1390 | 725 | 250 | 340 | 80 | 900 | 3000 | 3150 | 550 | 225 |
