The product is not easy to accumulate dust. Its fins are less likely to get heat which may generate electrostatic discharge which attracts air impurities due to electrostatic discharge.
Inquiry

At Poolking, technology improvement and innovation are our core advantages. Since established, we have been focusing on developing new products, improving product quality, and serving customers. aquarium device We have professional employees who have years of experience in the industry. It is them that provides high-quality services for customers all over the world. If you have any questions about our new product aquarium device or want to know more about our company, feel free to contact us. Our professionals would love to help you at any time.The product helps extend the life expectancy of the device, reducing the risk of device aging caused by high operating temperature.

Operation Description:

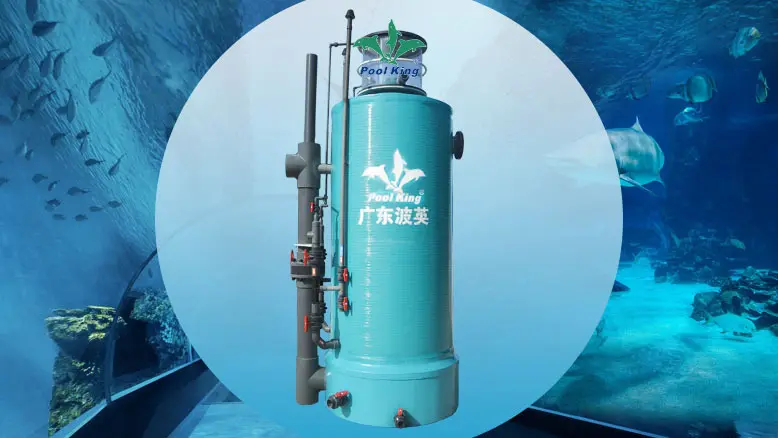

Protein Fractionator is an important equipment for sea water circulation system.In the water recirculating aquaculture or aquarium project,aquatic organism discharge a lot of faeces or other organic impurities.To remove these impurities,we need to clean the water.But generally filters will be blocked.So we design high efficient removal impurities equipment-Protein Fractionator.

Protein Fractionatorr also called Foam Separator.It uses gas tension to adsorb small suspended solids.The main part of Protein Fractionator is a reaction tank.A bubble device under the reaction tank can produce a mass of air bubble.Due to the buoyancy,air bubble will go up constantly and carries  the suspended solids to the top of the reaction tank.Then they can escape from the overflow pipe.

Because most of suspended solids are organic or containing organic nitrogen,so the Protein Fractionator can remove them before bacterial decomposition and avoid them to change into NH3 or H2S or other harmful solvend.So Protein Fractionator is also called Nitrogen Skimmer.

Protein Fractionator's structure is very special,so it can remove the small particles in 20-80um.The bigger particles shall be removed by other filtration system. In addition, the Protein Fractionator should be composed of fully functional circulating water treatment systems along with other sterilization equipment, heating and cooling equipment.

aquarium device at Wholesale Prices | Poolking 4





ModelFilter Diameter(mm)Filter Height(mm)Flow Rate(m³/h)

Process

Retention Time

(min)
In/0utlet(mm)Waste(mm)Venturi Qty(pcs)Pump Power(kw)
NPS400 400 2500 10/7.5 1.5/2 63/90 50 10780.75
NPS600600270022/161.5/2 90/1105015841.1
NPS800

800

310045/341.5/2 90/1105015841.5
NPS900 900310055/421.5/2 90/1405020812.2
NPS1000 1000360085/651.5/2 110/160631584*21.1*2
NPS1200 12003600120/941.5/2 160/200632081*21.5*2
NPS1400 14003800180/130 1.5/2 200/250752081*32.2*2
NPS1600 16003800240/1801.5/2 250/315752081*31.5*3
NPS1800 18004000320/2401.5/2 250/300902081*32.2*3
NPS200020004000400/3001.5/2 200*2/250*2903090*37.5*2




aquarium device at Wholesale Prices | Poolking 6

ModelNPS400NPS600NPS800NPS900NPS1000NPS1200NPS1400NPS1600NPS1800NPS2000
H(mm)2500250031003100360036003800380040004000
∅D(mm)400600800900100012001400160018002000
