  • Top Mount Multiport Valve T1.5”
  • Top Mount Multiport Valve 02

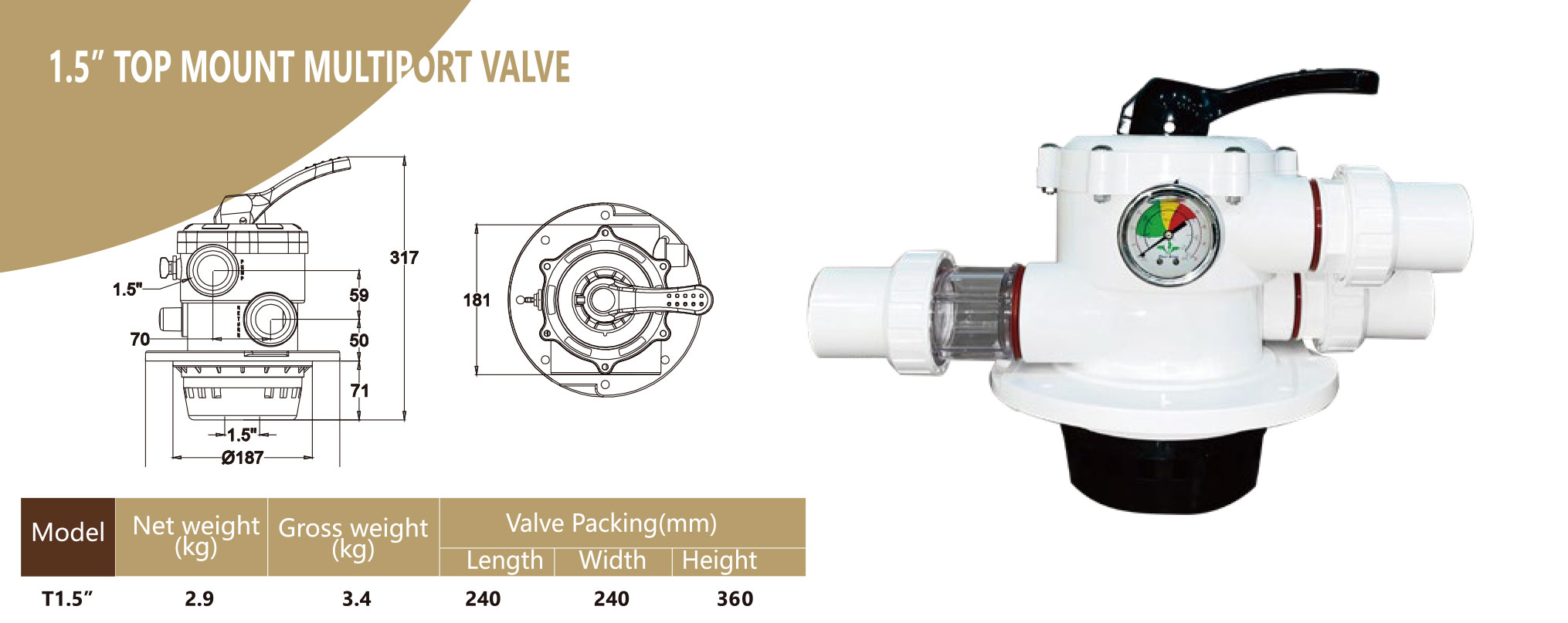

Top Mount Multiport Valve T1.5”

MODEL: T1.5”

Maximum Working Pressure: 400kPa/58psi/4.0bar

Factory Testing Pressure: 600kPa/86psi/6.0bar

Maximum Water Temperature: 50°C(122°F)

Flow Rate: 17m3/h at 40kPa/58psi/0.4bar

MOQ:                            50

PRODUCT DETAIL

Feature:

  • 1. Heavy duty ABS construction.
  • 2. Durable material handle
  • 3. Wear resistant rotor





Top Mount Multiport Valve 04

6-way Functions:

  • FILTER - Normal Filtratio
  • BACKWASH - Cleaning Filter by reversing the flow
  • RINSE - Used after backwash to flush dirt from valve
  • WASTE - By-passes filter, used for vacuuming to waste outlet or lowering water level
  • RECIRCULATE - By-passes filter for criculating water to pool
  • CLOSE - Shuts off all flow to filter or pool

Replacement parts of filter:

2 side mode
ID CODE DESCRIPTION Qty
1 01-0201 Handle 1
2 01-0104 Pin,handle 1
3 01-0102 Washer 1
4 01-0103 Bolt 10
5 01-0202 Lid assy 1
6 01-0106 Washer 2
7 01-0108 O-ring, lid 2
8 01-0107 Spring 1
9 01-0203 O-ring, lid 1
10 01-0204 Rotor 1
11 01-0205 Gasket, spider 1
12 01-0401 Body-difuser assy 1
13 01-0119 Plug 1
14 01-0118 Plug O-ring 1
15 01-0117 Nut, plug 3
16 01-0210 Nut, bulkhead  3
17 01-0209 Adaptor, bulkhead 3
18 01-0207 O-ring, bulkhead 8
19 01-0208 Bulkhead fitting 3
20 01-0121 Sight glass O-ring 1
21 01-0120 Sight glass 1
22 01-0404 O-ring 2
23 01-0404 Nut, bulkhead 2
24 01-0405 1.5″ Side Mount Adaptor 1
25 01-0403 Elbow Pipe 1



Workshop:

a-1
a-2
a-3
