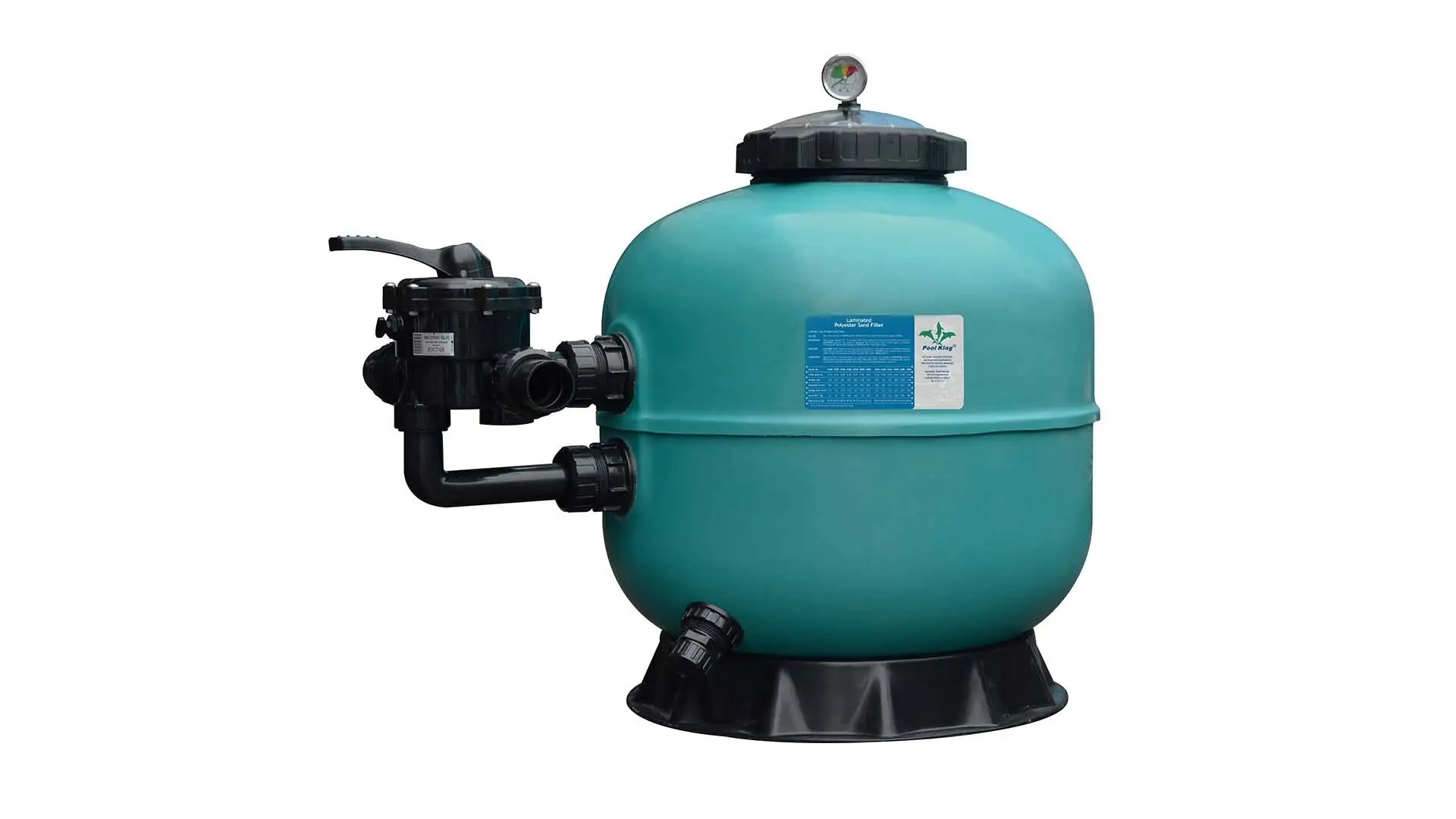

Laminated Sidemount Sand Filter From 450~700mm For Five Star Pools

Name: Laminated Sidemount Sand Filter From 450~700mm For Five Star Pools
Uploaded: 2021-09-28T09:03:17+08:00
Duration: 54 s
Description: POOLKING's laminated side mount filter is made by a premium and industry leading gel coated fiberglass ,totally corrosion - proof filters that blend superior flow characteristics and features with ease of operation .Poolking sets a new standard for performance , value and dependability.

POOLKING's laminated side mount filter is made by a premium and industry leading gel coated fiberglass ,totally corrosion - proof filters that blend superior flow characteristics and features with ease of operation .Poolking sets a new standard for performance , value and dependability.

SEND INQUIRY NOW

1. Maximum Working Pressure 250kpa/36psi(2.5bar)

2. Maximum Temperature 5 0°C(122F)

3. Size of Gravel 0.5mm~0.8mm

4. Factory Testing Pressure 400kpa/58psi(4.0bar)

SEND INQUIRY NOW

Product Details

Model: LS

- Made of anti-corrosive reinforced laminated polyester.

- Smooth and high brightness appearance.

- 6way multiport valve.

- Sight glass for inspection of filtered water.

- Easy maintenace, easy to clean.

Model	Filter Diameter （mm）	Filter Height（mm）	Design Flow（m³/h）	Filter Area（m²）	Connections（inch/mm）	Sand Weight（kg）
LS450	450	660	8	0.16	1.5"/50	45
LS500	500	745	10	0.21	1.5"/50	80
LS650	635	805	15	0.32	1.5"/50	130
LS700	700	885	19	0.38	1.5"/50	190
LS750	750	1000	22	0.44	2"/63	230
LS800	800	1000	25	0.50	2"/63	260
LS900	900	1115	32	0.64	2"/63	400

Model	LS450	LS500	LS650	LS700	LS750	LS800	LS900
φD(mm)	450	500	635	700	750	800	900
H（mm）	660	745	805	885	1000	1000	1115
A（mm）	260	280	310	360	385	385	430
B（mm）	75	75	95	95	150	150	150
C（mm）	125	125	125	125	220	220	220
M(mm)	444	464	494	544	680	680	725
φP(mm)	390	390	565	565	790	790	790
T（mm）	250	280	300	350	400	420	480
