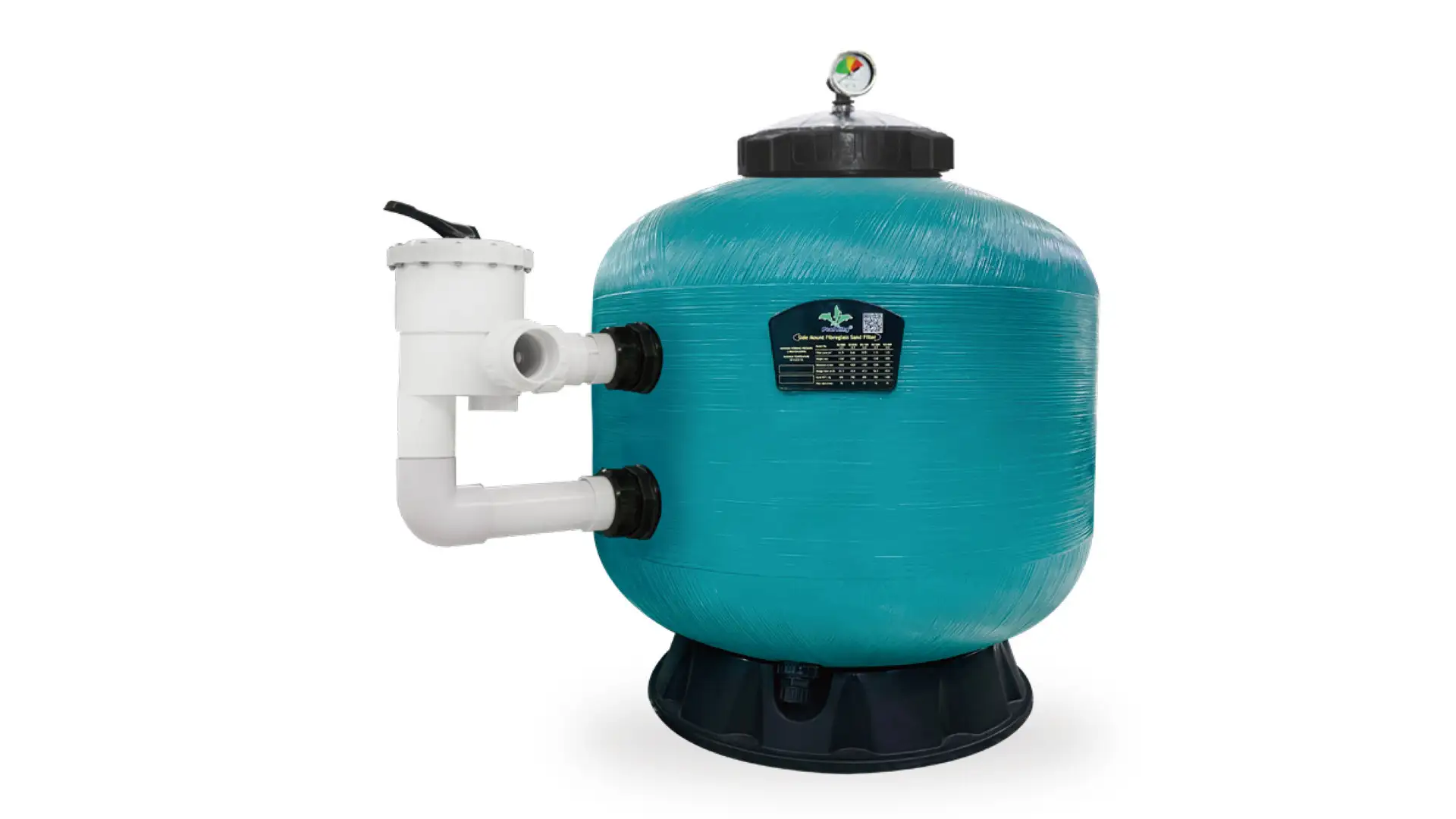

Poolking Fiberglass Sidemount Sand Filter With 2.5" Valve From 1000~1400mm For Semi-commercial Pools
Bobbin wound filter is manufactured by computerized filament winding fiberglass which enhances the mechanical strength of the filter tank and ability to withstand the pressure . It allows the filter to work and resist extreme weather conditions .The filter is equipped with a large top lid for easy maintenance and connected with 2.5" multiport valve for high filtration performance.
1. Maximum Working Pressure 250kpa/36psi(2.5bar) 400kpa/58psi(4.0bar)
2. Maximum Temperature 5 0°C(122F)
3. Size of Gravel 0.5mm~0.8mm
4. Factory Testing Pressure 400kpa/58psi(4.0bar) 600kpa/86psi(6.0bar)
Model: KS FS
- Filter body is UV resistance fiberglass.
- Air release valve can release the air safely.
- The drain can prevent frost cracking.
- Sight glass for inspection of filtered water.
- Top cover is convenient for maintenance
| Model | Filter Diameter （mm） | Filter Height（mm） | Design Flow（m³/h） | Filter Area（m²） | Connections（inch/mm） | Sand Weight（kg） |
| KS1000-2.5 | 1000 | 1160 | 39.5 | 0.79 | 2.5"/75 | 600 |
| KS1050-2.5 | 1050 | 1230 | 43 | 0.86 | 2.5"/75 | 700 |
| KS1100-2.5 | 1100 | 1260 | 47.5 | 0.95 | 2.5"/75 | 800 |
| KS1200-2.5 | 1200 | 1340 | 56.5 | 1.13 | 2.5"/75 | 980 |
| KS1400-2.5 | 1400 | 1570 | 69 | 1.53 | 2.5"/75 | 1400 |
| Model | KS1000-2.5 | KS1050-2.5 | KS1100-2.5 | KS1200-2.5 | KS1400-2.5 |
| ØD(mm) | 1000 | 1050 | 1100 | 1200 | 1400 |
H（mm） | 1160 | 1230 | 1260 | 1340 | 1570 |
| A（mm） | 450 | 450 | 540 | 575 | 690 |
| B（mm） | 150 | 180 | 180 | 180 | 180 |
| C（mm） | 230 | 230 | 230 | 230 | 230 |
| ØP(mm) | 790 | 790 | 1010 | 1010 | 1010 |
| T（mm） | 510 | 530 | 560 | 600 | 630 |
| Model | Filter Diameter （mm） | Filter Height（mm） | Design Flow（m³/h） | Filter Area（m²） | Connections（inch/mm） | Sand Weight（kg） |
| FS1000-2.5 | 1000 | 1160 | 39.5 | 0.79 | 2.5"/75 | 600 |
| FS1050-2.5 | 1050 | 1230 | 43 | 0.86 | 2.5"/75 | 700 |
| FS1100-2.5 | 1100 | 1260 | 47.5 | 0.95 | 2.5"/75 | 800 |
| FS1200-2.5 | 1200 | 1340 | 56.5 | 1.13 | 2.5"/75 | 980 |
| FS1400-2.5 | 1400 | 1570 | 69 | 1.53 | 2.5"/75 | 1400 |
| Model | FS1000-2.5 | FS1050-2.5 | FS1100-2.5 | FS1200-2.5 | FS1400-2.5 |
| ØD(mm) | 1000 | 1050 | 1100 | 1200 | 1400 |
H（mm） | 1160 | 1230 | 1260 | 1340 | 1570 |
| A（mm） | 450 | 450 | 540 | 575 | 690 |
| B（mm） | 150 | 180 | 180 | 180 | 180 |
| C（mm） | 230 | 230 | 230 | 230 | 230 |
| ØP(mm) | 790 | 790 | 1010 | 1010 | 1010 |
| T（mm） | 510 | 530 | 560 | 600 | 630 |
