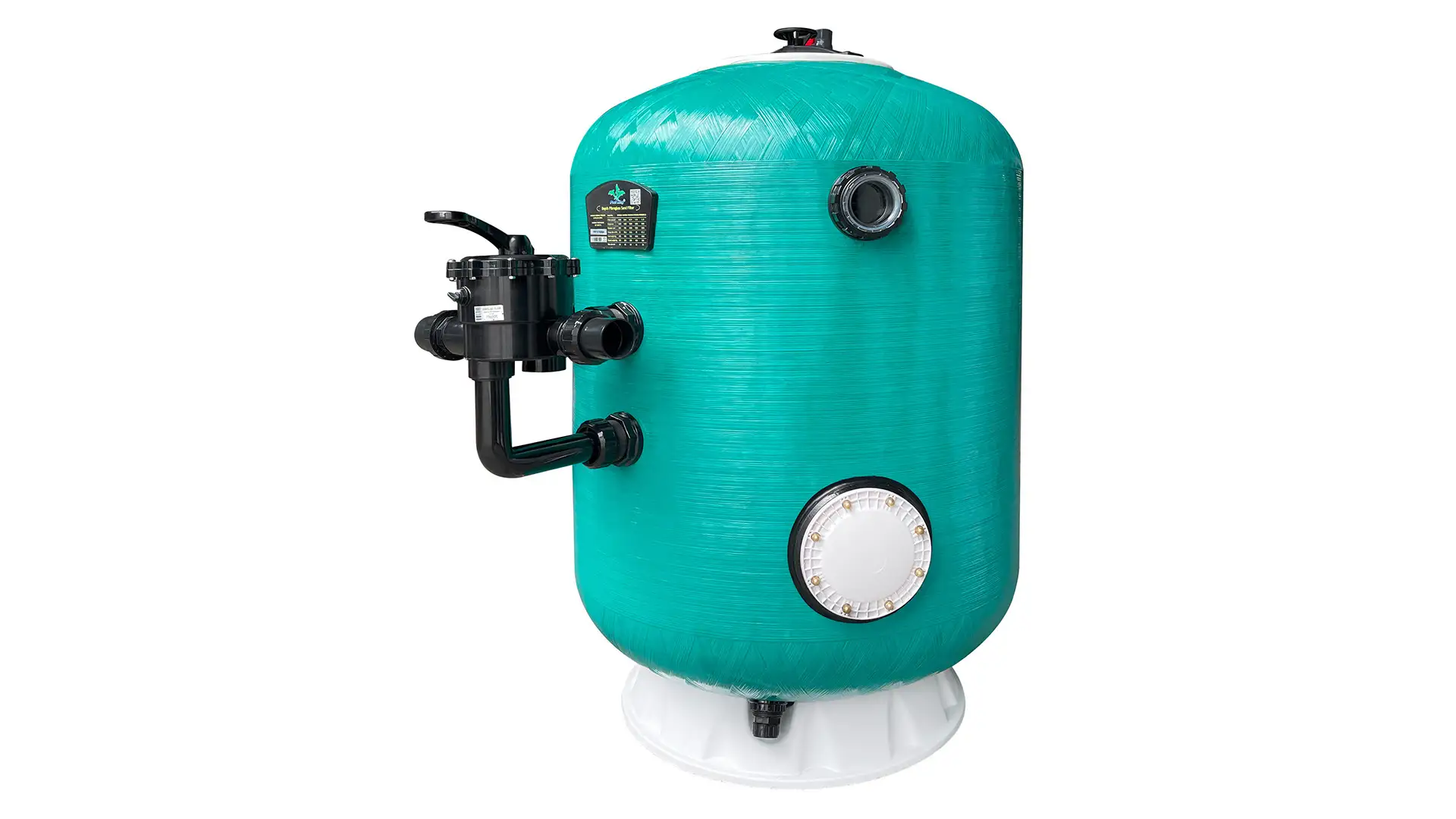

Poolking Deep Bed Sand Filter With Valve From 800~1200mm For Commercial Pools
POOLKING's depth sand filter is made of non- corrosion fiberglass and resin and connected with 2' or 2.5" multiport valve . It offers a more thorough filtration with the standard of either 0.8m or 1.25m depth sand bed withich is suitable for high filtration performance of residential and commercial pool & spa . It is UV- resistant , and ca operate under prolong sunlight.
Maximum Working Pressure
250kpa/36psi(2.5bar)400kpa/58psi(4.0bar)
Factory Testing Pressure
400kpa/58psi(4.0bar)600kpa/87psi(6.0bar)
Maximum Temperature
50°C(122F)
Size of Gravel
1mm~2mm(Gavel)
0.5mm~0.8mm(sand)
Model: HKA
- Fiberglass filter body is UV and corrosion Resistant.
- 0.8~1.2M BED depth for finer filtration.
- Lateral with tight gaps are able to keep out filter media and dirt particles.
- Sight glass and Sand drain are available in option.
- Nozzle plate system ensures maximum performance and save up to 25% of backwash water.
- Lateral and nozzle plate are available in option. - Flange or 6way multiport valve are available in option.
| Model | Filter Diameter （mm） | Filter Height（mm） |
Design Flow（m³/h） |
Filter Area（m²） | Connections（inch/mm） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HK15800A | 800 | 1600 | 20.0 | 0.50 | 2"/63 | 455 | 170 |
| HK15900A | 900 | 1600 | 25.6 | 0.64 | 2"/63 | 585 | 230 |
| HK151000A | 1000 | 1600 | 31.6 | 0.79 | 2"/63 | 720 | 270 |
| HK151200A | 1200 | 1600 | 40.0 |
1.13 |
2.5"/75 | 1030 | 450 |
| HK151200A-2.5 | 1200 | 1600 | 45.2 | 1.13 | 2"/63 | 1130 | 450 |
| HK20800A | 800 | 2100 | 15.0 | 0.50 | 2"/63 | 770 | 170 |
| HK20900A | 900 | 2100 | 19.0 | 0.64 | 2"/63 | 990 | 230 |
| HK201000A | 1000 | 2100 | 23.7 | 0.79 | 2"/63 | 1220 | 270 |
| HK201200A | 1200 | 2100 | 30.0 | 1.13 | 2"/63 | 1740 | 450 |
| HK201200A-2.5 | 1200 | 2100 | 33.9 | 1.13 | 2.5"/75 | 1740 | 450 |
| Model | HK15800A | HK15900A |
HK151000A |
HK151200A | HK151200A-2.5 | HK20800A | HK20900A | HK201000A | HK201200A | HK201200A-2.5 |
| ØD(mm) | 800 | 900 | 1000 | 1200 | 1200 | 800 | 900 | 1000 | 1200 | 1200 |
| H(mm) | 1600 | 1600 | 1600 | 1600 | 1600 | 2100 | 2100 | 2100 | 2100 | 2100 |
| A(mm) | 700 | 700 | 700 | 700 | 700 | 1000 | 1000 | 1000 | 1000 | 1000 |
| B(mm) | 150 | 150 | 150 |
180 |
180 | 150 | 150 | 150 | 180 | 180 |
| C(mm) | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| ØE(mm) | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| F(mm) | 520 | 520 | 520 | 600 | 600 | 520 | 520 | 520 | 600 | 600 |
| ØK(mm) | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 |
| M(mm) | 1120 | 1120 | 1120 | 1120 | 1120 | 1600 | 1600 | 1600 | 1600 | 1600 |
| ØN(mm) | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| ØP(mm) | 790 | 790 | 790 | 1010 | 1010 | 790 | 790 | 790 | 1010 | 1010 |
| T(mm) | 800 | 800 | 800 | 800 | 800 | 1200 | 1200 | 1200 | 1200 | 1200 |
| W(mm) | 350 | 350 | 350 | 350 | 350 | 400 | 400 | 400 | 400 | 400 |
