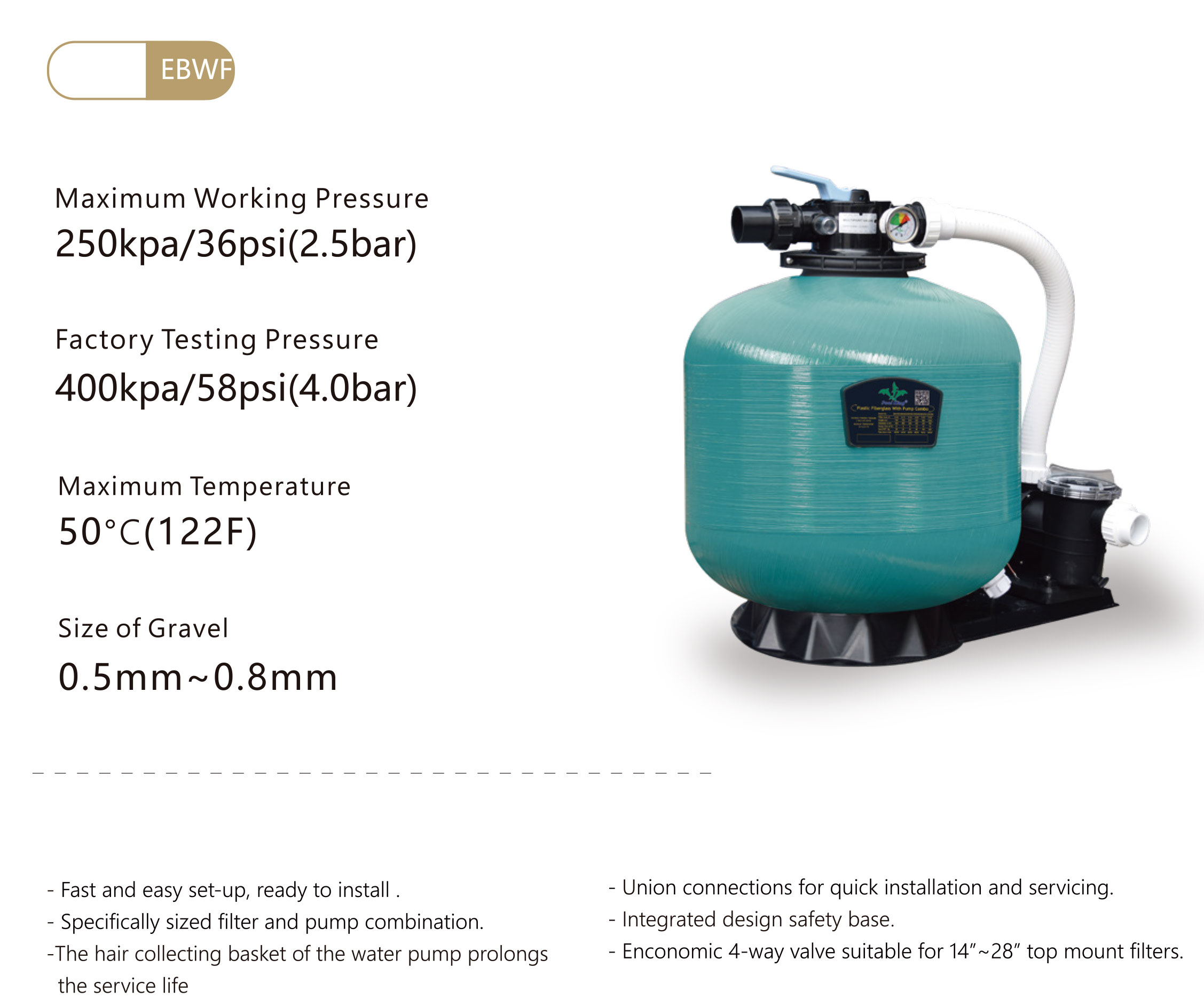

Fiberglass With Plastic Filter With Pump System With 4 Way Valve From 350~700mm
PE plastic inner tank with fiberglass -reinforced and combine a pool pump . The filter is installed with a 4 - way multiport valve which can save cost and easy operation . It is one of the most popular ways to keep pool water clean . Not only it is effective , it saves on cost and time . The results will be faster water circulation , improved filtration and best of all - a superior swim experience.
1. Maximum Working Pressure 200kpa/2 8psi(2.0bar)
2. Factory Testing Pressure 400kpa/58psi(4.0bar)
3. Maximum Temperature 50°C(122F)
4. Size of Gravel 0.5mm~0.8mm
Model: EBWF
- Fast and easy set-up, ready to install .
- Specifically sized filter and pump combination.
- The hair collecting basket of the water pump prolongs the service life
- Union connections for quick installation and servicing. - Integrated design safety base.
- Enconomic 4-way valve suitable for 14”~28” top mount filters
| Model | Filter Diameter（mm） | Filter Height（mm） | Design Flow（m³/h） | Filter Area（m²） | Connections（inch/mm） | Sand Weight（kg） | Matching Pump |
| EBWF350 | 350 | 645 | 5 | 0.10 | 1.5"/50 | 25 | STP35 |
| EBWF400 | 400 | 670 | 6 | 0.13 | 1.5"/50 | 30 | STP50 |
| EBWF450 | 450 | 715 | 8 | 0.16 | 1.5"/50 | 45 | STP75 |
| EBWF500 | 530 | 760 | 10 | 0.20 | 1.5"/50 | 85 | STP100 |
| EBWF650 | 630 | 860 | 15 | 0.32 | 1.5"/50 | 150 | SMP150 |
| EBWF700 | 700 | 930 | 19 | 0.38 | 1.5"/50 | 200 | SMP150 |

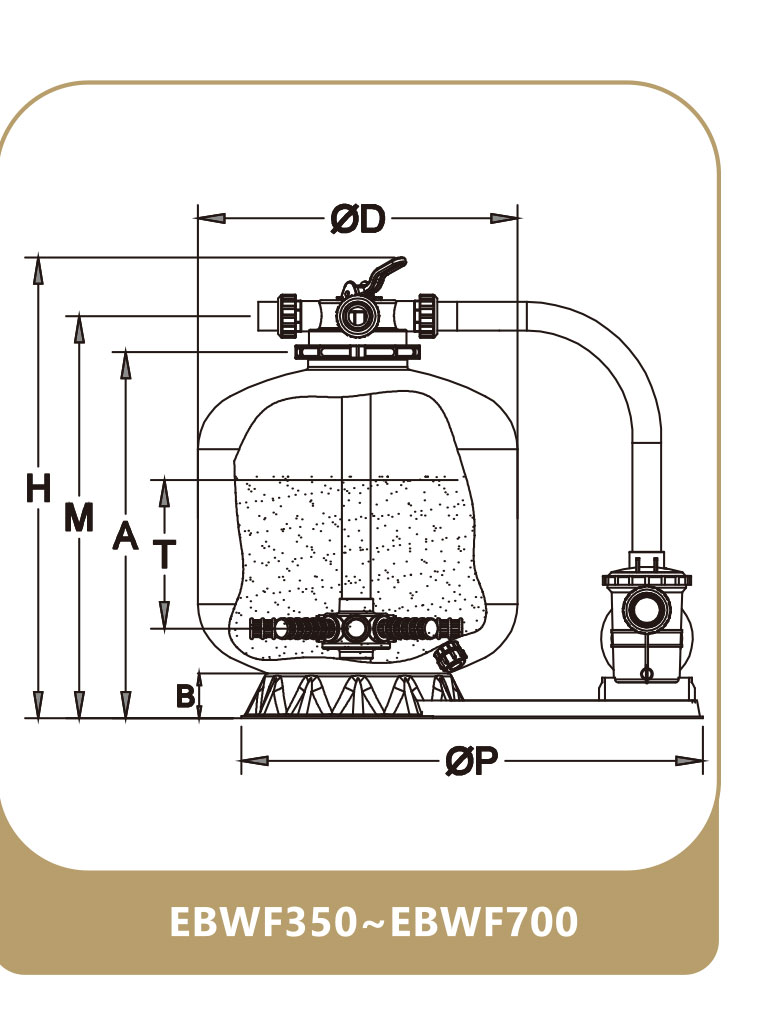

| Model | EBWF350 | EBWF400 | EBWF450 | EBWF500 | EBWF650 | EBWF700 |
| ØD(mm) | 350 | 400 | 450 | 530 | 630 | 700 |
H（mm） | 645 | 670 | 715 | 670 | 860 | 930 |
| A（mm） | 485 | 510 | 555 | 600 | 700 | 770 |
| B（mm） | 73 | 73 | 75 | 75 | 95 | 95 |
| M（mm） | 565 | 570 | 710 | 710 | 770 | 870 |
| ØP(mm) | 575 | 575 | 710 | 710 | 770 | 870 |
| T（mm） | 150 | 160 | 220 | 260 | 370 | 450 |
