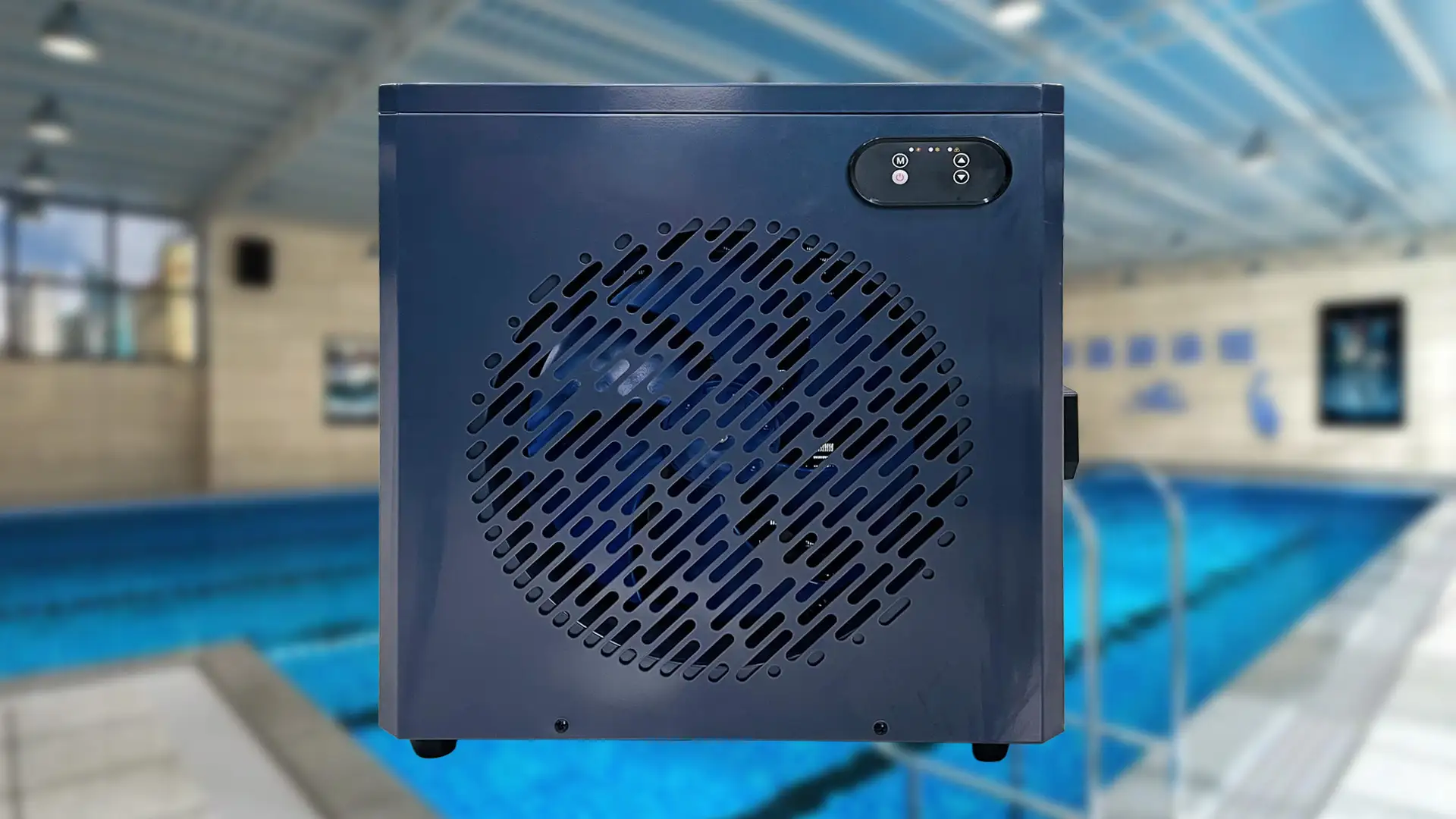

INVERTER MINI SWIMMING POOLHEAT PUMP
PoolKing inverter mini swimming pool heat pump IMN series is the best choice forvarious small above ground pools. You can easily enjoy a comfortable heatedswimming pool in your backyard, even on not-so-beautiful summer days. Thanksto the inverter technology, it absorbs free heat from the environment and passes itinto the water for reduced and controlled energy consumption.
Ideal for above-ground pools, spas and splash pools
Operating air temperature 5 ℃-43 ℃
Easy installation (quick connection)
Simple and intuitive control panel
Low noise operation
Filled with environmentally friendly R32 gas
Titanium heat exchanger
1.5m wire cable&plug with RCD protection
Suitable for 32mm or 38mm water connections
COP is up to 11, over 80% free energy from the ambient air Simple plug and play saves valuable instal-lation time
Technical Parameters
| Model | MN03 | MN04 | MN05 |
| Performance condition: Air : 27°C / Water: 27°C / Humidity: 80% | |||
| Heating capacity (kW) | 1.3-3.5 | 1.5-4.5 | 2.0-5.6 |
| Heating capacity (BTU) | 11740 | 15360 | 18780 |
| COP | 13.2-5.4 | 13.1-5.2 | 13.1-6.0 |
| Average COP at 50% Speed | 8.1 | 8.6 | 9.5 |
| Performance condition: Air : 15°C / Water: 26°C / Humidity: 70% | |||
| Heating capacity (kW) | 0.9-2.4 | 1.1-3.2 | 1.5-3.9 |
| Heating capacity (BTU) | 8220 | 10750 | 13450 |
| COP | 7.6-4.1 | 7.7-4.2 | 7.4-4.0 |
| Average COP at 50% Speed | 5.7 | 6.0 | 6.7 |
| Technical specifications | |||
| Advised pool volume (m³)* | 0~15 | 5~20 | 8~25 |
| Operating air temperature (°C) | 5℃-43℃ | ||
| Power supply | 220-204V / 1Ph / 50Hz | ||
| Heat exchanger | Spiral titanium tube in PVC | ||
| Compressor | Twin-rotary DC inverter | ||
| Refrigerant | R32 | ||
| Casing | Galvanized steel | ||
| Rated input power (kW) | 0.09-0.65 | 0.12-0.87 | 0.15-0.93 |
| Input power at 50% Speed (kW) | 0.2 | 0.3 | 0.35 |
| Rated input current (A) | 0.4-2.8 | 0.5-3.8 | 0.6-4.1 |
| Rated input current (A) | 3.6 | 5 | 5.4 |
| Power cord (mm²) | 3X1.0 | ||
| Fan speed (rpm) | 850-900 | ||
| Sound level at 1m dB(A) | 48~52.5 | ||
| Sound level by 50% speed 1m dB(A) | 50 | ||
| Sound level by 50% speed 1m dB(A) | 21~32.5 | 22~32.5 | 22~33.5 |
| Advised water flow (m³/h) | 1~2 | 1~2.5 | 2~3.5 |
| Protection level | IPX4 | ||
| Water connection (mm) | 32/38 | ||
| Water pressure drop (kPa) | 15 | ||
| R32 Net weight (g) | 320 | 350 | 400 |
| Gross weight (kg) | 26 | 27 | 28 |
| Net weight (kg) | 24 | 25 | 26 |
| Net dimension LxWxH (mm) | 440x330x486 | ||
| Packing Size (mm) | 520x350x490 | ||
| Qty per 20'FT / 40'HQ (sets) | 264/660 | ||
Remarks: *
The above data will be subject to change without further notice, please refer to the nameplate on the unit.
* Advised pool volume applies to a private pool with an isothermal cover, from April to September.
