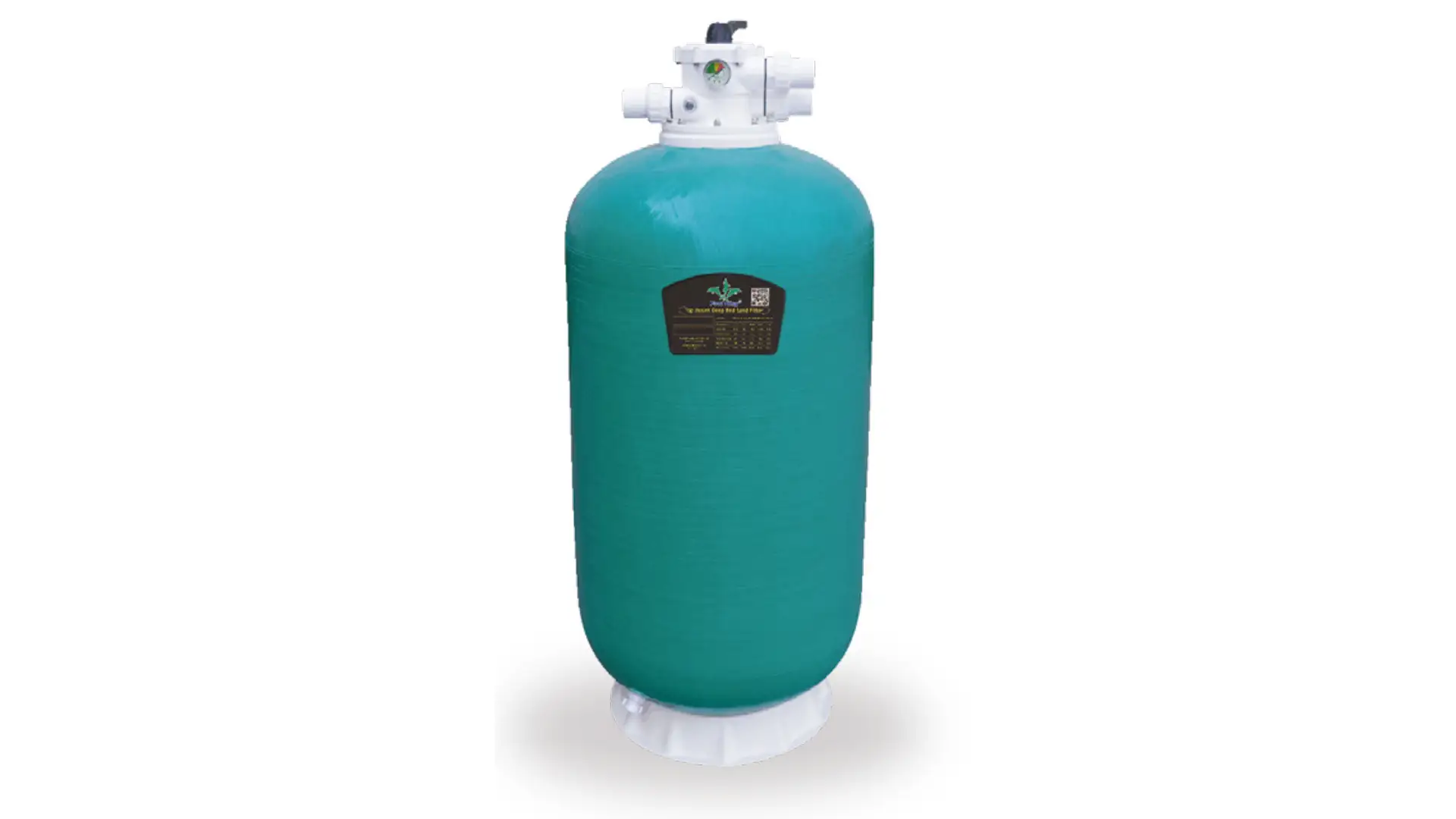

Deep Bed Topmount Fiberglass Sand Filter From 400~900mm For Domestic Pools
POOLKING top mount bobbin wound deed bed filters improve the filtration efficiency over standard filters by providing enhanced in - depth filtration and increased dirt capacity . Undesired particles like rust , sand , dirt and other impurities found in water are trapped by the filter bed, offering crystal clear filtered water for domestic and light commercial usage.
1. Maximum working pressure: 400kPa/58psi/4.0bar
2. Factory Testing Pressure: 600kPa/86psi/6.0bar
3. Maximum Water Temperature: 500 C
4. Size of Gravel: 1mm-2mm
5. Size of Silica Sand: 0.5~0.8mm
Model: HP
- UV resistant wound structural fiberglass tanks.
- Depth filter bed for better filtation performance.
- Using different kinds of filtration media to remove rust,dirt and other solid things in the water.
| Model | Filter Diameter（mm） | Filter Height（mm） | Design Flow （m³/h） | Filter Area（m²） | Connections（inch/mm） | Sand Weight（kg） |
| HP13400 | 400 | 1300 | 4.5 | 0.13 | 1.5"/50 | 120 |
| HP13450 | 450 | 1300 | 5.6 | 0.16 | 1.5"/50 | 150 |
| HP13500 | 530 | 1300 | 7.0 | 0.20 | 1.5"/50 | 185 |
| HP13600 | 630 | 1300 | 11.2 | 0.32 | 1.5"/50 | 245 |
| HP13700 | 700 | 1300 | 13.0 | 0.37 | 1.5"/50 | 345 |
| HP15400 | 400 | 1500 | 3.9 | 0.13 | 1.5"/50 | 150 |
| HP15450 | 450 | 1500 | 4.8 | 0.16 | 1.5"/50 | 195 |
| HP15500 | 530 | 1500 | 6.0 | 0.20 | 1.5"/50 | 240 |
| HP15600 | 630 | 1500 | 9.6 | 0.32 | 1.5"/50 | 325 |
| HP15700 | 700 | 1500 | 11.0 | 0.37 | 1.5"/50 | 400 |
| HP15800 | 800 | 1500 | 15.0 | 0.50 | 2"/63 | 500 |
| HP15900 | 900 | 1500 | 19.2 | 0.64 | 2"/63 | 590 |
| Model | HP13400 | HP13450 | HP13500 | HP13600 | HP13700 | HP15400 | HP15450 | HP15500 | HP15600 | HP15700 | HP15800 | HP15900 |
| ØD(mm) | 400 | 450 | 530 | 630 | 700 | 400 | 450 | 530 | 630 | 700 | 800 | 900 |
H（mm） | 1300 | 1300 | 1300 | 1300 | 1300 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| A（mm） | 1062 | 1062 | 1062 | 1062 | 1062 | 1262 | 1262 | 1262 | 1262 | 1262 | 1262 | 1262 |
| B（mm） | 75 | 75 | 75 | 95 | 95 | 75 | 75 | 75 | 95 | 95 | 150 | 150 |
| M（mm） | 1171 | 1171 | 1171 | 1171 | 1171 | 1371 | 1371 | 1371 | 1371 | 1371 | 1371 | 1371 |
| N（mm） | 1112 | 1112 | 1112 | 1112 | 1112 | 1312 | 1312 | 1312 | 1312 | 1312 | 1312 | 1312 |
| ØP(mm) | 390 | 390 | 390 | 565 | 565 | 390 | 390 | 390 | 565 | 565 | 790 | 790 |
| T（mm） | 650 | 650 | 650 | 630 | 630 | 850 | 850 | 850 | 830 | 830 | 700 | 700 |
