Poolking Fiberglass Sidemount Sand Filter From 450~900mm For Spa Pools

Name: Poolking Fiberglass Sidemount Sand Filter From 450~900mm For Spa Pools
Uploaded: 2021-09-28T09:03:01+08:00
Duration: 30 s
Description: POOLKING's bobbin wound fiberglass side mount ring lock filters are using the latest in fiberglass winding technology . A Clear mounting lid on side mould models which allow a clear view of filtration and backwashing during operation and control the level of sand easily . It is perfect to combine with glass filter media for the cleanest , healthiest and sparkling pool water.

POOLKING's bobbin wound fiberglass side mount ring lock filters are using the latest in fiberglass winding technology . A Clear mounting lid on side mould models which allow a clear view of filtration and backwashing during operation and control the level of sand easily . It is perfect to combine with glass filter media for the cleanest , healthiest and sparkling pool water.

SEND INQUIRY NOW

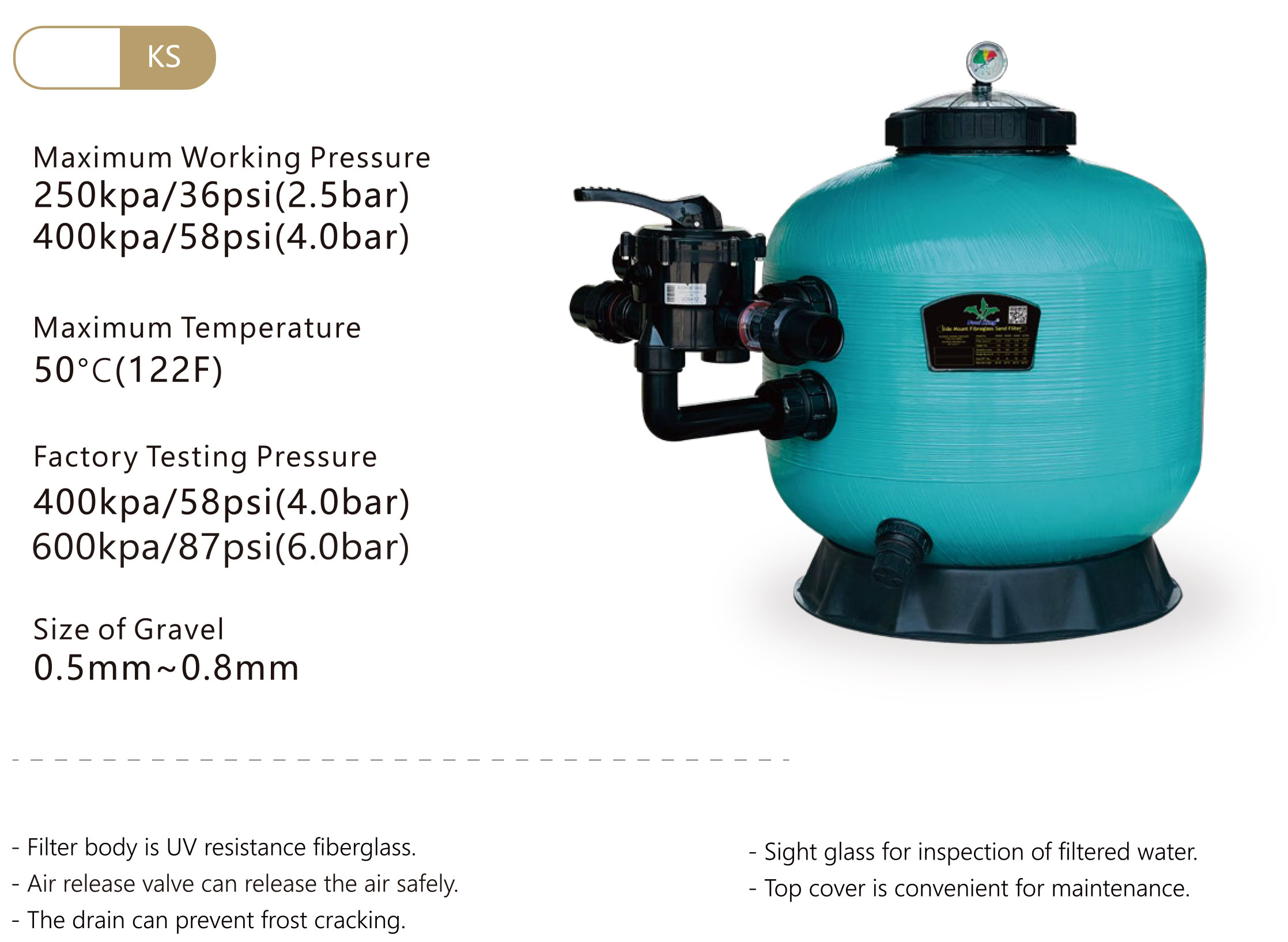

1. Maximum Working Pressure 250kpa/36psi(2.5bar) 400kpa/58psi(4.0bar)

2. Maximum Temperature 5 0°C(122F)

3. Size of Gravel 0.5mm~0.8mm

4. Factory Testing Pressure 400kpa/58psi(4.0bar) 600kpa/86psi(6.0bar)

SEND INQUIRY NOW

Product Details

Model: KS FS

- Filter body is UV resistance fiberglass.

- Air release valve can release the air safely.

- The drain can prevent frost cracking.

- Sight glass for inspection of filtered water.

- Top cover is convenient for maintenance

Model	Filter Diameter （mm）	Filter Height（mm）	Design Flow（m³/h）	Filter Area（m²）	Connections（inch/mm）	Sand Weight（kg）
KS450	450	450	8	0.16	1.5"/50	45
KS500	500	500	10	0.20	1.5"/50	80
KS650	630	630	15	0.32	1.5"/50	130
KS700	700	700	19	0.38	1.5"/50	190
KS750	750	750	22	0.44	2"/63	230
KS800	800	800	25	0.50	2"/63	260
KS900	900	900	32	0.64	2"/63	400
KS1000	1000	1000	36	0.79	2"/63	600
KS1050	1050	1050	38.7	0.86	2"/63	700
KS1100	1100	1100	43	0.95	2"/63	800
KS1200	1200	1200	51	1.13	2"/63	920
KS1400	1400	1400	68	1.53	2"/63	1400

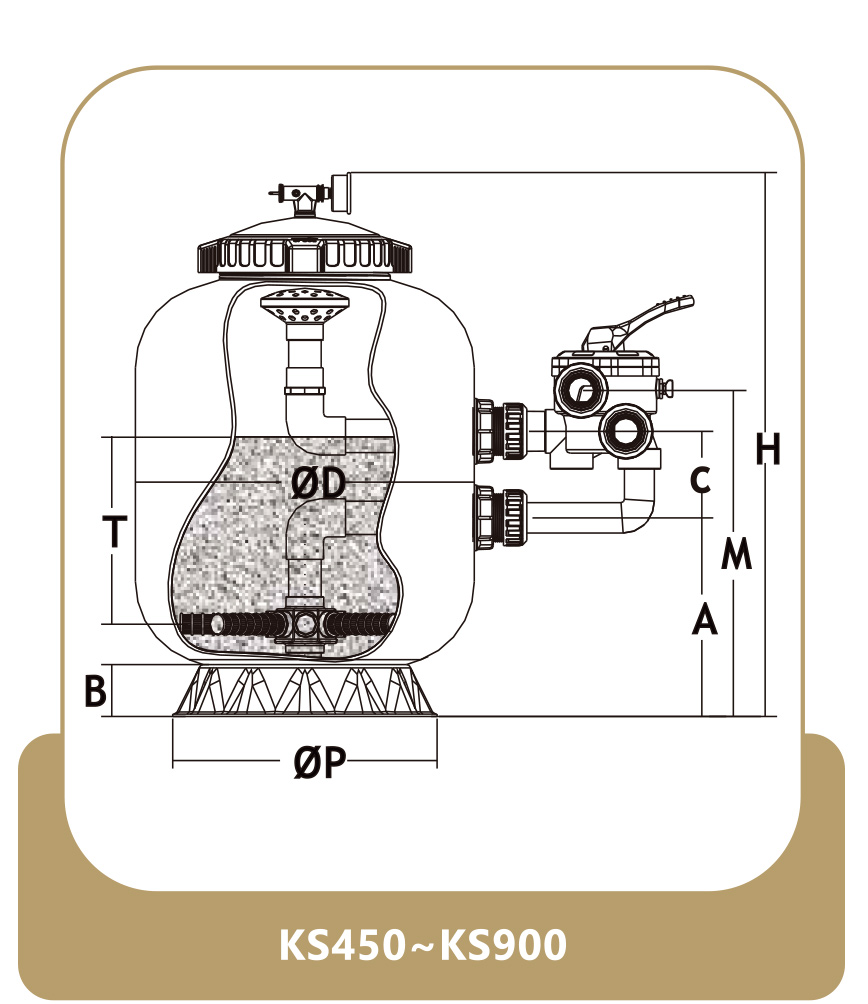

Model	KS450	KS500	KS650	KS700	KS750	KS800	KS900	KS1000	KS1050	KS1100	KS1200	KS1400
ØD(mm)	450	500	630	700	750	800	900	1000	1050	1100	1200	1400
H（mm）	680	730	790	850	980	1010	1100	1160	1230	1260	1340	1570
A（mm）	260	280	310	360	355	385	430	460	500	540	600	700
B（mm）	75	75	95	95	95	150	150	150	150	180	180	180
C（mm）	125	125	125	125	220	220	220	220	220	220	220	220
ØP(mm)	390	390	565	565	565	790	790	790	790	1010	1010	1010
T（mm）	250	580	300	350	400	420	480	510	530	560	600	630

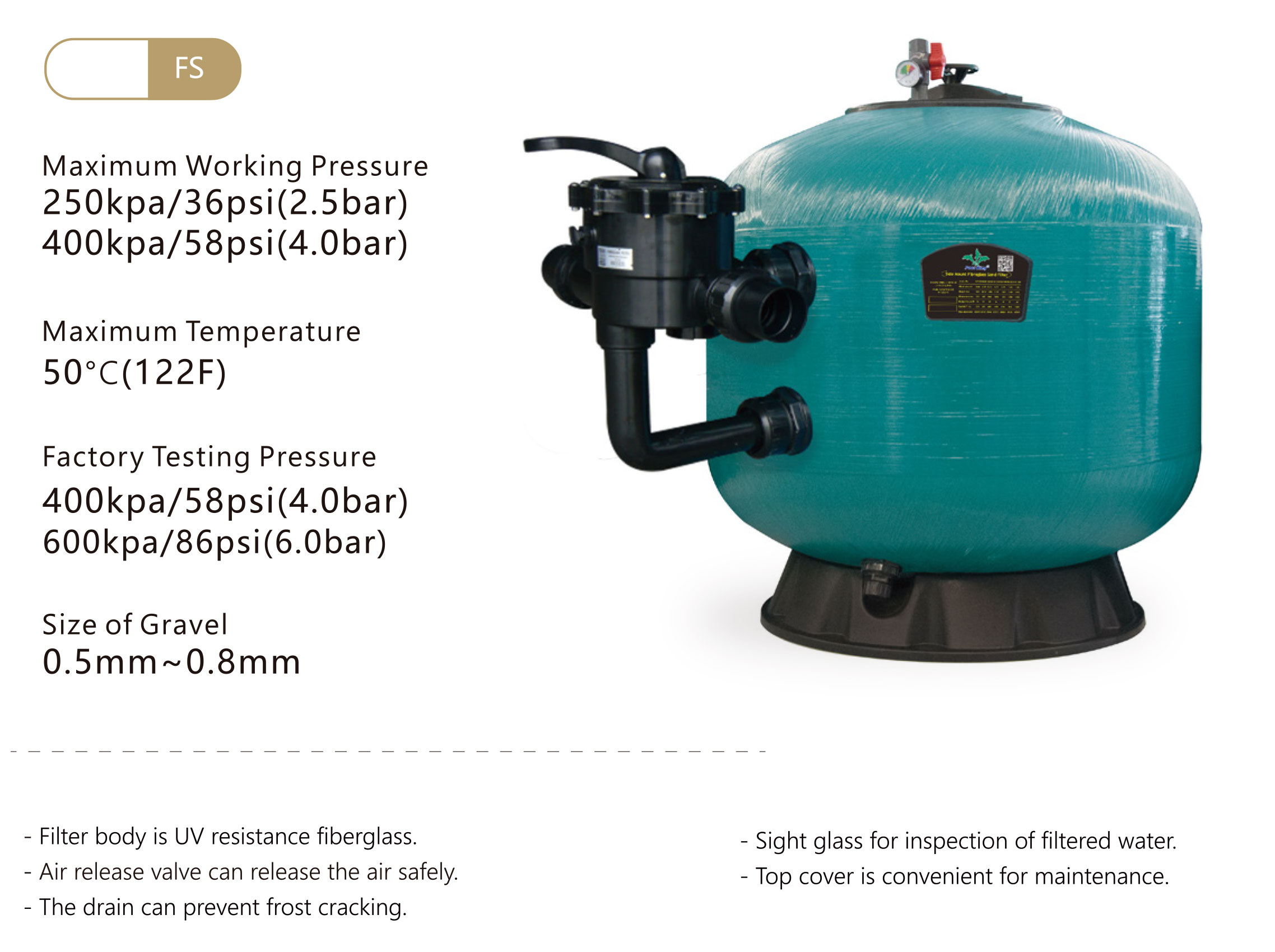

Model	Filter Diameter （mm）	Filter Height（mm）	Design Flow（m³/h）	Filter Area（m²）	Connections（inch/mm）	Sand Weight（kg）
FS1000	1000	1160	36	0.79	2"/63	600
FS1050	1050	1230	38.7	0.86	2"/63	700
FS1100	1100	1260	43	0.95	2"/63	800
FS1200	1200	1340	51	1.13	2"/63	980
FS1400	1400	1570	68	1.53	2"/63	1400

Model	KS1000	KS1050	KS1100	KS1200	KS1400
ØD(mm)	1000	1050	1100	1200	1400
H（mm）	1160	1230	1260	1340	1570
A（mm）	460	500	540	600	700
B（mm）	150	180	180	180	180
C（mm）	220	220	220	220	220
ØP(mm)	790	790	1010	1010	1010
T（mm）	510	530	560	600	630
