Type: | Pool Filter |
---|---|
Usage: | Wate Treatment |
Motive Force: | Pressure |
Style: | Vertical |
Perfromance: | Efficient Filtration |
Dia: | 500mm |
Trademark: | Poolking |
Origin: | China |
HS Code: | 8421219990 |
After years of solid and rapid development, Poolking has grown into one of the most professional and influential enterprises in China. marine tank uv sterilizer Poolking is a comprehensive manufacturer and supplier of high-quality products and one-stop service. We will, as always, actively provide prompt services such. For more details about our marine tank uv sterilizer and other products, just let us know.The product greatly improves the heat dissipation for the devices. It helps protect the device from overheat, but also it improves the performance of the device.
POOLKING owns modern automatic production facility to produce over 3000 units sand filter per month
R&D and QC departments make sure all the products are perfect and high quality.
Poolking utilizes automatic robot spray machines, digital control winding system, cutting machines, plastic blow molding and plastic injection machines guarantee high efficient and unique products.
When do I need to replace the sand?
On average, sand should be replaced every 3-5 years. This may be longer if the pool stays clear, or shorter, if the filter runs all the time. The jagged edges of the sand wear down and become smooth as the sand ages. When this happens the sand can no longer trap debris particles and dirt can pass through the sand and back into the pool.
What is the warranty for the products?
Filters are two years, the other products are one year.
How often should the water circulate ?
As usual it is 4 hours for one circulation, but if the pool is not dirty or very big pool, you can circulate it every 6 hours.

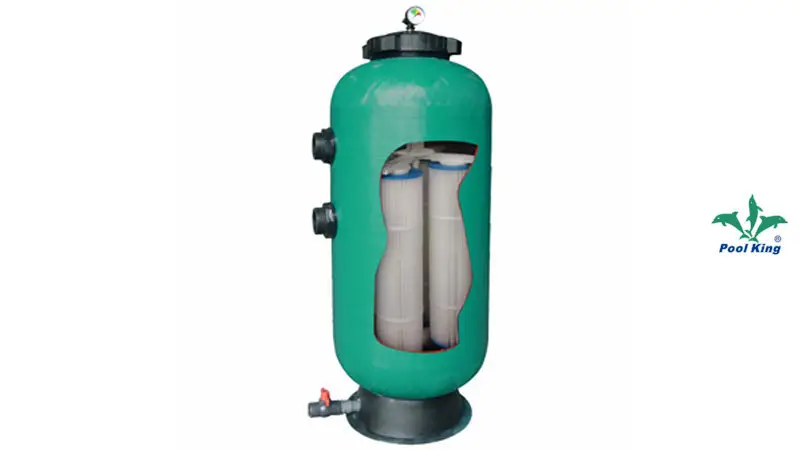

Model: KD/KC
- UV inhibited filament wound structural fiberglass tanks. - 2”or 63mm Inlet/Outlet PVC unions.
- Either 6 way Multiport or Push-Pull valve available for DE models.
- Easy removal or installation of cartridges or DE elements. - cartridges in 225, 250, 350, 450 Sq. Ft sizes,fully convertible to DE.
- DE elements in 35, 45, 75, 90 Sq. Ft. sizes,fully convertible to Cartridges. -Large clear lock ring sealed lid for easy interior viewing and media installation/removal.
- Exclusive integral Inlet/Outlet manifold eliminates conventional bulkhead fittings. - Hose bib drain valve allows removal of tank debris away from mechanical area
Model | Filter Diameter(mm) | Filter Height(mm) | Design Flow (m³/h) | Filter Area (m²) | Connections (inch/mm) | Diatomite weight(kg) | ØD(mm) | H(mm) | A(mm) | B(mm) | C(mm) | ØP(mm) | E(mm) |
KC225 | 500 | 965 | 19.08 | 20.9 | 2”/63 | - | 500 | 965 | 341 | 125 | 220 | 390 | 32 |
KC250 | 500 | 965 | 21.35 | 23.2 | 2”/63 | - | 500 | 965 | 341 | 125 | 220 | 390 | 32 |
KC350 | 500 | 1270 | 32.30 | 35.3 | 2”/63 | - | 500 | 1270 | 646 | 125 | 220 | 390 | 32 |
KC450 | 500 | 1270 | 34.07 | 41.8 | 2”/63 | - | 500 | 1270 | 646 | 125 | 220 | 390 | 32 |
KC520 | 500 | 1270 | 36.50 | 44.8 | 2”/63 | - | 500 | 1270 | 646 | 125 | 220 | 390 | 32 |
KD35 | 500 | 965 | 15.90 | 3.25 | 2”/63 | 1.59 | 500 | 965 | 341 | 125 | 220 | 390 | 32 |
KD45 | 500 | 965 | 20.44 | 4.18 | 2”/63 | 2.04 | 500 | 965 | 341 | 125 | 220 | 390 | 32 |
KD75 | 500 | 1270 | 34.07 | 6.97 | 2”/63 | 3.40 | 500 | 1270 | 646 | 125 | 220 | 390 | 32 |
KD90 | 500 | 1270 | 41.80 | 8.36 | 2”/63 | 4.08 | 500 | 1270 | 646 | 125 | 220 | 390 | 32 |
