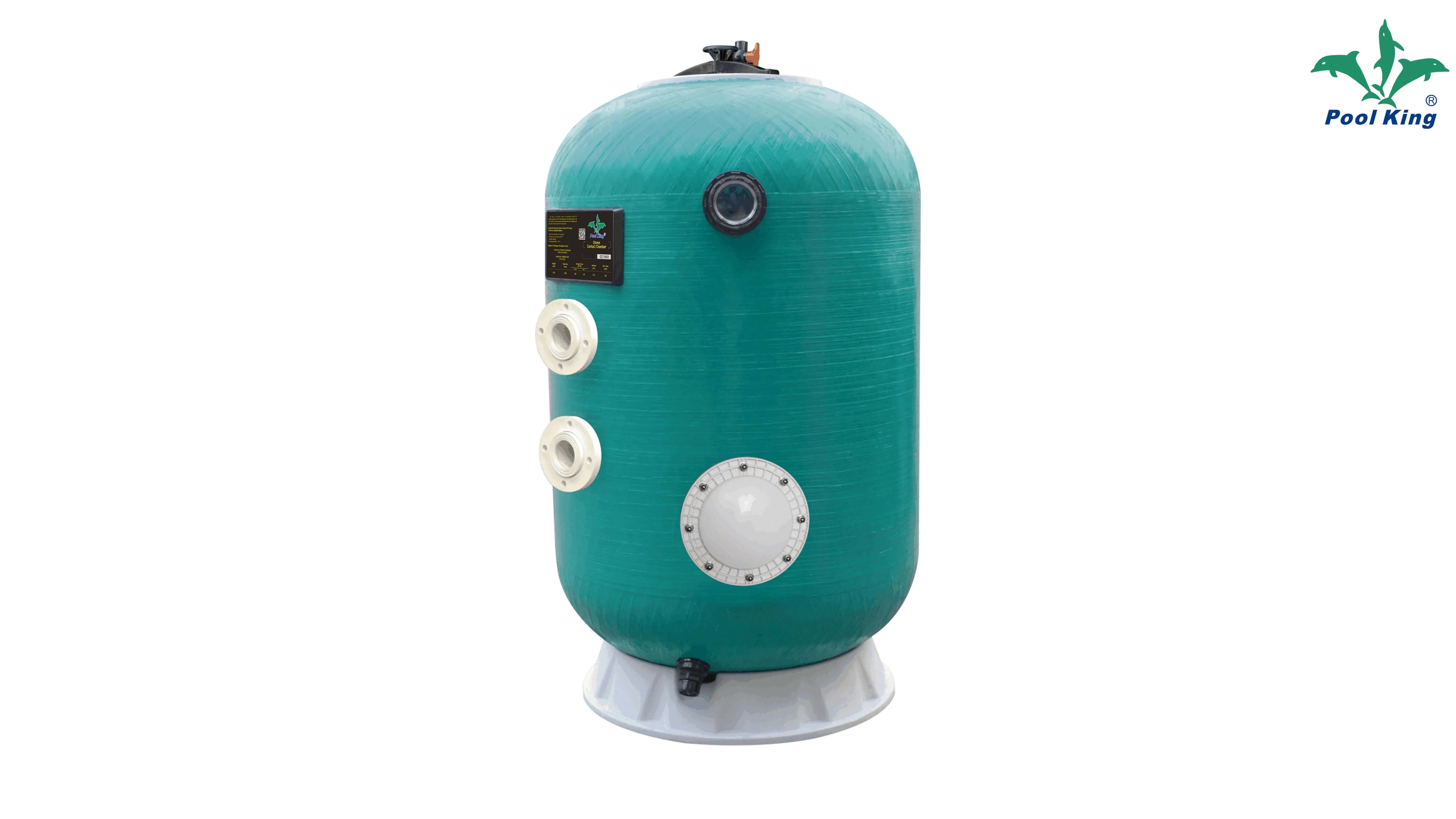

Model:HK/HKN
- Fiberglass filter body is UV and corrosion Resistant.
- 0.8~1.2M BED depth for finer filtration.
- Lateral with tight gaps are able to keep out filter media and dirt particles.
- Sight glass and Sand drain are available in option.
- Nozzle plate system ensures maximum performance and save up to 25% of backwash water.
- Lateral and nozzle plate are available in option. - Flange or 6way multiport valve are available in option.
Model | Filter Diameter (mm) | Filter Height(mm) | Design Flow(m³/h) | Filter Area(m²) | Connections(inch/mm) | Sand Weight(kg)0.5-0.8mm | Grave Weight(kg)1-2mm |
HK15800 | 800 | 1600 | 20.0 | 0.50 | 2"/63 | 455 | 170 |
HK15900 | 900 | 1600 | 25.6 | 0.64 | 2"/63 | 585 | 230 |
HK151000 | 1000 | 1600 | 31.6 | 0.79 | 2"/63 | 720 | 270 |
HK151200 | 1200 | 1600 | 45.2 | 1.13 | 3"/90 | 1030 | 450 |
HK151400 | 1400 | 1600 | 61.6 | 1.54 | 3"/90 | 1100 | 500 |
HK20800 | 800 | 2100 | 15.0 | 0.50 | 2"/63 | 770 | 170 |
HK20900 | 900 | 2100 | 19.0 | 0.64 | 2"/63 | 990 | 230 |
HK201000 | 1000 | 2100 | 23.7 | 0.79 | 2"/63 | 1220 | 270 |
HK201200 | 1200 | 2100 | 33.9 | 1.13 | 3"/90 | 1740 | 450 |
HK201400 | 1400 | 2100 | 46.2 | 1.54 | 3"/90 | 2100 | 500 |
Model | HK15800 | HK15900 | HK151000 | HK151200 | HK151400 | HK20800 | HK20900 | HK201000 | HK201200 | HK201400 |
φD(mm) | 800 | 900 | 1000 | 1200 | 1400 | 800 | 900 | 100 | 1200 | 1400 |
H(mm) | 1600 | 1600 | 1600 | 1600 | 1600 | 2100 | 2100 | 2100 | 2100 | 2100 |
A(mm) | 550 | 550 | 550 | 650 | 650 | 800 | 800 | 800 | 800 | 720 |
B(mm) | 150 | 150 | 150 | 180 | 190 | 150 | 150 | 150 | 180 | 190 |
C(mm) | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
φE(mm) | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
F(mm) | 520 | 520 | 520 | 600 | 600 | 520 | 520 | 520 | 600 | 600 |
φK(mm) | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 |
M(mm) | 1180 | 1200 | 1160 | 1100 | 1120 | 1650 | 1650 | 1650 | 1650 | 1650 |
φN(mm) | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
φP(mm) | 790 | 790 | 790 | 1010 | 1240 | 790 | 790 | 790 | 1010 | 1240 |
T(mm) | 800 | 800 | 800 | 800 | 800 | 1250 | 1250 | 1250 | 1250 | 1240 |
W(mm) | 350 | 350 | 350 | 350 | 350 | 400 | 400 | 400 | 400 | 400 |
Model | Filter Diameter (mm) | Filter Height(mm) | Design Flow(m³/h) | Filter Area(m²) | Connections(inch/mm) | Sand Weight(kg)0.5-0.8mm | Grave Weight(kg)1-2mm |
HK15800N | 800 | 1600 | 20.0 | 0.50 | 2"/63 | 455 | 110 |
HK15900N | 900 | 1600 | 25.6 | 0.64 | 2"/63 | 585 | 145 |
HK151000N | 1000 | 1600 | 31.6 | 0.79 | 2"/63 | 720 | 175 |
HK151200N | 1200 | 1600 | 45.2 | 1.13 | 3"/90 | 1030 | 255 |
HK151400N | 1400 | 1600 | 61.6 | 1.54 | 3"/90 | 1100 | 320 |
HK20800N | 800 | 2100 | 15.0 | 0.50 | 2"/63 | 770 | 110 |
HK20900N | 900 | 2100 | 19.0 | 0.64 | 2"/63 | 990 | 145 |
HK201000N | 1000 | 2100 | 23.7 | 0.79 | 2"/63 | 1220 | 175 |
HK201200N | 1200 | 2100 | 33.9 | 1.13 | 3"/90 | 1740 | 255 |
HK201400N | 1400 | 2100 | 46.2 | 1.54 | 3"/90 | 2100 | 320 |
Model | HK15800N | HK15900N | HK151000N | HK151200N | HK151400N | HK20800N | HK20900N | HK201000N | HK201200N | HK201400N |
φD(mm) | 800 | 900 | 1000 | 1200 | 1400 | 800 | 900 | 100 | 1200 | 1400 |
H(mm) | 1600 | 1600 | 1600 | 1600 | 1600 | 2100 | 2100 | 2100 | 2100 | 2100 |
A(mm) | 550 | 550 | 550 | 650 | 650 | 800 | 800 | 800 | 800 | 720 |
B(mm) | 150 | 150 | 150 | 180 | 190 | 150 | 150 | 150 | 180 | 190 |
C(mm) | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
φE(mm) | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
F(mm) | 520 | 520 | 520 | 600 | 600 | 520 | 520 | 520 | 600 | 600 |
φK(mm) | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 |
M(mm) | 1120 | 1120 | 1120 | 1120 | 1120 | 1600 | 1600 | 1600 | 1600 | 1600 |
φN(mm) | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
φP(mm) | 790 | 790 | 790 | 1010 | 1240 | 790 | 790 | 790 | 1010 | 1240 |
T(mm) | 700 | 700 | 700 | 700 | 700 | 1200 | 1200 | 1200 | 1200 | 1200 |
W(mm) | 350 | 350 | 350 | 350 | 350 | 400 | 400 | 400 | 400 | 400 |
