Poolking | Wholesale water tank filtration system factory
With strong R&D strength and production capabilities, Poolking now has become a professional manufacturer and reliable supplier in the industry. All our products including water tank filtration system are manufactured based on the strict quality management system and international standards. water tank filtration system We will do our best to serve customers throughout the whole process from product design, R&D, to delivery. Welcome to contact us for further information about our new product water tank filtration system or our company.The product has good strength. During the production, it is finely welded and die-casted to ensure its physical strength.
Operation Description:

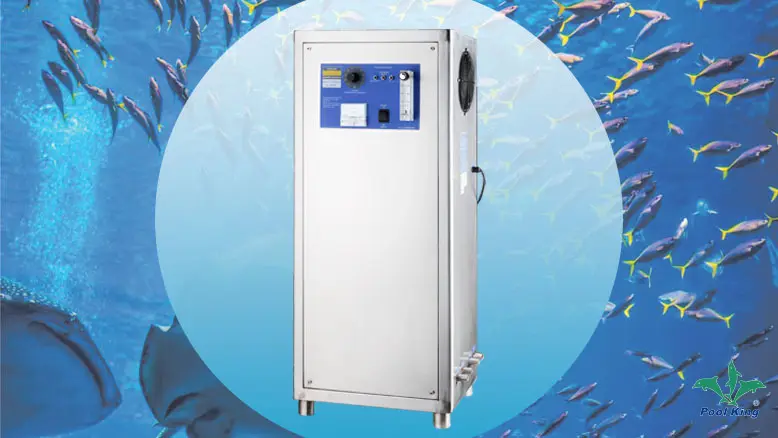

This Range of ozone generators are totally complete with air per-chiler,intergral air dayer,ozone generation equioment and full electrial controls.
This ozone power supply systerm incorporates a frequency inventer that increases the main frequency to mavmise ozone production and also allows fully variable automatic controls of the ozone out put .Both the air drying system and the ozone generation system operate under vacuum conditions there by eliminating the risk of ozone gas escape.
The ozone generation modules incorporate the patented "Free Tube" design which gives excellent dielectric reliability and decreases maintenance requirements.
PRODUCT FEATURE:
1. No ozone output alarm , when ozone generation. This denote the ozone models working well or not.
2. Backwater alarm, when stop the generator and make it dry. Then start again. If the alarm stop afer 3 seconds, it is ok.
3. Over temperature alarm, when the temperture of the generator is highter than 50℃. This wil happen and the generator will stop working before the temperature is lower than 50℃.
4. Electorcircuit fault alarm.
Technical Parameters:
| Model | Ozone Output (g/h) | Power (w) | Cooling | Max Ozone inclusion (g/m3) | Weight (kg) | Voltage (v) | Volume (m3) | Dimension (mm) |
| A-6G | 6 | 120 | Air | Feed by oxygen : 30-50 Feed by air : 10-25 | 11 | 220 | 40 | 350×230×530 |
| A-10G | 10 | 150 | Air | 12 | 220 | 70 | 350×230×530 | |
| A-16G | 16 | 180 | Air | 12 | 220 | 90 | 350×230×600 | |
| A-20G | 20 | 300 | Air | Feed by oxgen : 30-50 Feed by air : 10-25 | 18 | 220 | 150 | 350×230×600 |
| A-25G | 25 | 350 | Air | 19 | 220 | 200 | 470×230×730 | |
| A-32G | 32 | 380 | Air | 19 | 220 | 250 | 470×230×730 | |
| A-40G | 40 | 600 | Water(0.2-0.5m3/h) | Feed by oxgen : 50-100 Feed by air : 16-30 | 26 | 220 | 300 | 400×300×950 |
| A-50G | 50 | 660 | Water(0.2-0.5m3/h) | 26 | 220 | 400 | 400×300×950 | |
| A-60G | 60 | 1000 | Water(0.3-1.0m3/h) | 50 | 220 | 450 | 520×370×1150 | |
| A-80G | 80 | 1200 | Water(0.3-1.0m3/h) | 50 | 220 | 450 | 520×370×1150 | |
| A-100G | 100 | 1300 | Water(0.3-1.0m3/h) | Feed by oxgen : 50-100 Feed by air： 16-30 | 85 | 220 | 750 | 770×500×1200 |
| A-150G | 150 | 1800 | Water(0.5-1.5m3/h) | 90 | 220 | 1100 | 770×500×1200 | |
| A-200G | 200 | 1500 | Water(0.5-1.5m3/h) | 95 | 220 | 1500 | 770×500×1200 | |
| A-300G | 300 | 3200 | Water(1-2m3/h) | Feed by oxgen : 50-120 Feed by air : 16-35 | 120 | 220/380 | 2200 | 800×600×1450 |
| A-400G | 400 | 4500 | Water(1-2m3/h) | 150 | 220/380 | 3000 | 800×600×1450 | |
| A-500G | 500 | 5500 | Water(1-3m3/h) | 200 | 220/380 | 3800 | 1200×600×1450 | |
| A-600G | 600 | 6500 | Water(1-3m3/h) | 250 | 220/380 | 1500 | 1200×600×1450 |
Best swimming pool equipment manufacturer - Poolkin will continue for innovative management and excellent quality. Imagination will subvert the future, intelligent manufacturing will lead the era, that's the motto of Poolking!
