Poolking, your best swimming pool equipment manufacturer and supplier with more than 20 years experience. Email: sandy@poolking.co
Guided by scientific and technological innovation, Poolking always keeps outward-oriented and sticks to the positive development on the basis of technological innovation. uv water sterilizer aquarium We have been investing a lot in the product R&D, which turns out to be effective that we have developed uv water sterilizer aquarium. Relying on our innovative and hard-working staff, we guarantee that we offer customers the best products, the most favorable prices, and the most comprehensive services as well. Welcome to contact us if you have any questions.The product greatly improves the heat dissipation for the devices. It helps protect the device from overheat, but also it improves the performance of the device.

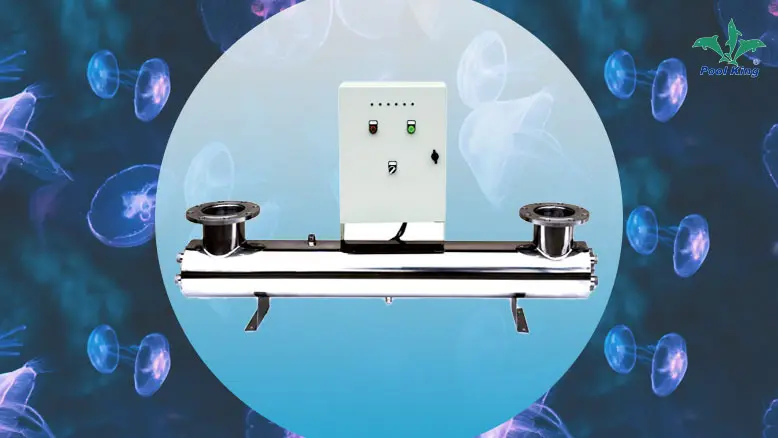

- The reactor use 304 polished stainless steel, the smooth interior leaves no blind spot for sterilization.
- The ultraviolet light tube is equipped with a quartz sleeve, to ensure optimal working temperature.
- The electrical configuration of the device is suitable to most electrical specifications.
- Special exterior design makes the device convenient to use.
- All rounded sterilization, highly efficient, sterilization rate up to 99.9%.
- High output, physical sterilization, no side effects, no secondary pollution.
- The amount of water that can be sterilized ranges from 5.5-250T/H. The device adapts to swimming pools, spa andwater parks of various sizes.
Technical Parameters:
Model | Power (w) | Flow (m3/h) | Voltage (v) | material | Dimension (mm) | Light Power (w) | Connections (Dn) |
UVCn-78 | 78 | 5.5 | 220V/50Hz | 304SS | 930×108×720 | 39×2 | 32 |
UVCn-160 | 160 | 12 | 220V/50Hz | 304SS | 930×108×720 | 80×2 | 50 |
UVC-240 | 240 | 20 | 220V/50Hz | 304SS | 930×159×780 | 80×3 | 65 |
UVC-320 | 320 | 25 | 220V/50Hz | 304SS | 930×159×780 | 80×4 | 80 |
UVC-465 | 465 | 45 | 220V/50Hz | 304SS | 1630×219×830 | 155×3 | 100 |
UVC-620 | 620 | 45 | 220V/50Hz | 304SS | 1630×219×830 | 155×4 | 80/100 |
UVC-775 | 775 | 60 | 220V/50Hz | 304SS | 1630×219×1080 | 155×5 | 150 |
UVC-930 | 930 | 80 | 220V/50Hz | 304SS | 1630×219×1180 | 155×6 | 150 |
UVC-1280 | 1280 | 90 | 220V/50Hz | 304SS | 1630×325×1180 | 320×4 | 150 |
UVCP-1085 | 1085 | 100 | 220V/50Hz | 304SS | 1630×325×1180 | 155×7 | 150 |
UVCP-1395 | 1395 | 125 | 220V/50Hz | 304SS | 1630×325×1200 | 155×9 | 150 |
UVCP-1600 | 1600 | 110 | 220V/50Hz | 304SS | 1630×325×1400 | 320×5 | 150 |
UVCP-1705 | 1705 | 150 | 220V/50Hz | 304SS | 1630×325×1500 | 155×11 | 200 |
UVCP-1920 | 1920 | 130 | 220V/50Hz | 304SS | 1630×325×1500 | 320×6 | 200 |
UVCP-2240 | 2240 | 150 | 220V/50Hz | 304SS | 1630×377×1500 | 320×7 | 200 |
UVCP-2560 | 2560 | 180 | 220V/50Hz | 304SS | 1630×377×1500 | 320×8 | 200 |
UVCP-2880 | 2880 | 200 | 220V/50Hz | 304SS | 1630×377×1500 | 320×9 | 200 |
UVCP-3480 | 3480 | 250 | 220V/50Hz | 304SS | 1630×426×1500 | 320×12 | 250 |
Note:
UV lamp working life ≧ 9000 hours.
UVCn :threaded connectionw, ABS control box;
UVC :flange connections, ABS control box;
UVCP :flange connections ,painted carbon steel control box.
Can be configured according to customer needs manual cleaning device or automatic cleaning device or varietyof advanced omline monitoring instruments and remote control system.
