Poolking | New pool spa filtration factory

It has the advantage of quick heat transfer capacity. The thermal interface material is applied to the base of the product so as to fill gaps and offer more dissipation paths for the heat.
Inquiry

With strong R&D strength and production capabilities, Poolking now has become a professional manufacturer and reliable supplier in the industry. All our products including pool spa filtration are manufactured based on the strict quality management system and international standards. pool spa filtration We will do our best to serve customers throughout the whole process from product design, R&D, to delivery. Welcome to contact us for further information about our new product pool spa filtration or our company.The product helps extend the life expectancy of the device, reducing the risk of device aging caused by high operating temperature.

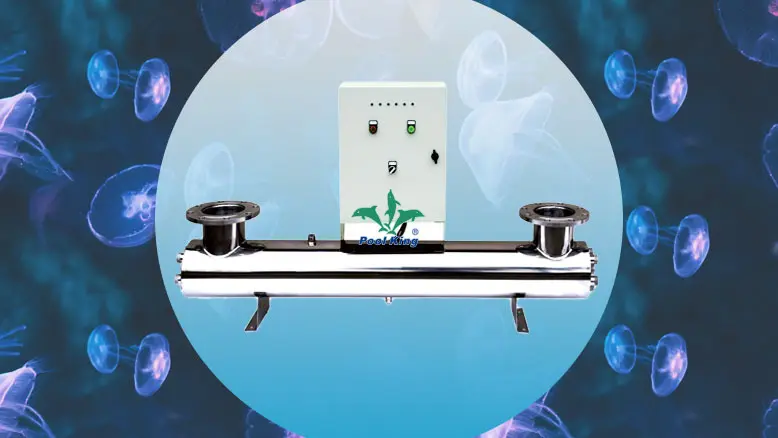

- The reactor use 304 polished stainless steel, the smooth interior leaves no blind spot for sterilization.

- The ultraviolet light tube is equipped with a quartz sleeve, to ensure optimal working temperature.

- The electrical configuration of the device is suitable to most electrical specifications.

- Special exterior design makes the device convenient to use.

- All rounded sterilization, highly efficient, sterilization rate up to 99.9%.

- High output, physical sterilization, no side effects, no secondary pollution.

- The amount of water that can be sterilized ranges from 5.5-250T/H. The device adapts to swimming pools, spa andwater parks of various sizes.





Technical Parameters:

Model

Power

(w)

Flow

(m3/h)

Voltage

(v)

material

Dimension

(mm)

Light Power

(w)

Connections

(Dn)

UVCn-78785.5220V/50Hz304SS930×108×72039×232
UVCn-16016012220V/50Hz304SS930×108×72080×250
UVC-24024020220V/50Hz304SS930×159×78080×365
UVC-32032025220V/50Hz304SS930×159×78080×480
UVC-46546545220V/50Hz304SS1630×219×830155×3100
UVC-62062045220V/50Hz304SS1630×219×830155×480/100
UVC-77577560220V/50Hz304SS1630×219×1080155×5150
UVC-93093080220V/50Hz304SS1630×219×1180155×6150
UVC-1280128090220V/50Hz304SS1630×325×1180320×4150
UVCP-10851085100220V/50Hz304SS1630×325×1180155×7150
UVCP-13951395125220V/50Hz304SS1630×325×1200155×9150
UVCP-16001600110220V/50Hz304SS1630×325×1400320×5150
UVCP-17051705150220V/50Hz304SS1630×325×1500155×11200
UVCP-19201920130220V/50Hz304SS1630×325×1500320×6200
UVCP-22402240150220V/50Hz304SS1630×377×1500320×7200
UVCP-25602560180220V/50Hz304SS1630×377×1500320×8200
UVCP-28802880200220V/50Hz304SS1630×377×1500320×9200
UVCP-34803480250220V/50Hz304SS1630×426×1500320×12250



Note:

  • UV lamp working life ≧ 9000 hours.

  • UVCn :threaded connectionw,  ABS control box;

  • UVC :flange connections, ABS control box;

  • UVCP :flange connections ,painted carbon steel control box.

  • Can be configured according to customer needs manual cleaning device or automatic cleaning device or varietyof advanced omline monitoring instruments and remote control system.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
