Relying on advanced technology, excellent production capabilities, and perfect service, Poolking takes the lead in the industry now and spreads our Poolking all over the world. Together with our products, our services are also supplied to be the highest-level. industrial butterfly valves Poolking have a group of service professionals who are responsible for answering questions raised by customers through the Internet or phone, tracking the logistics status, and helping customers solve any problem. Whether you'd like to get more info on what, why and how we do, try our new product - High-quality industrial butterfly valves supply, or would like to partner up, we'd love to hear from you.The product keeps the devices from the damage caused by over high temperature or overheats, hence, it extends the service life of the device.

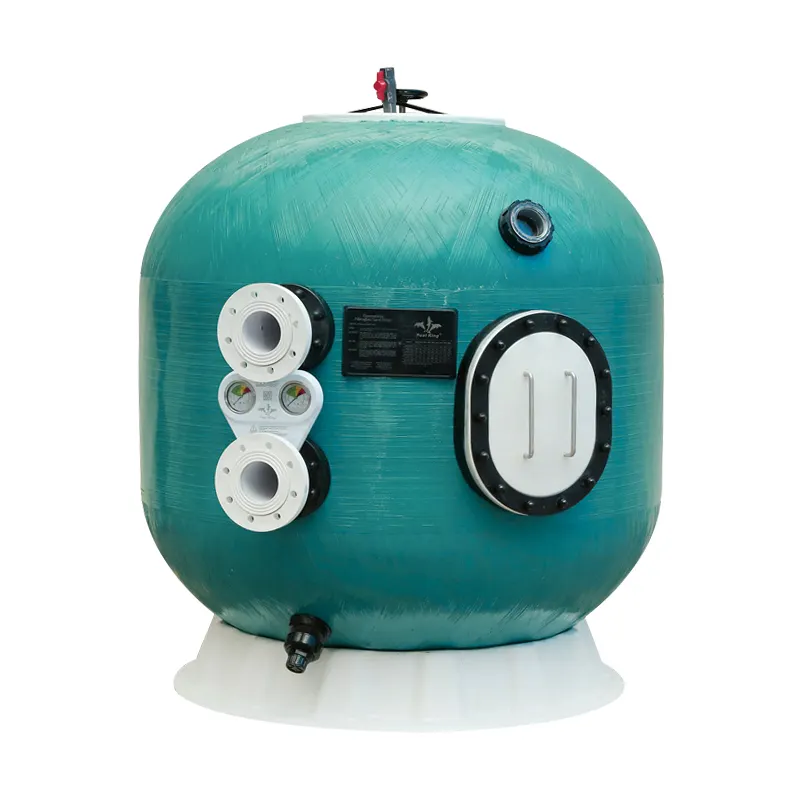

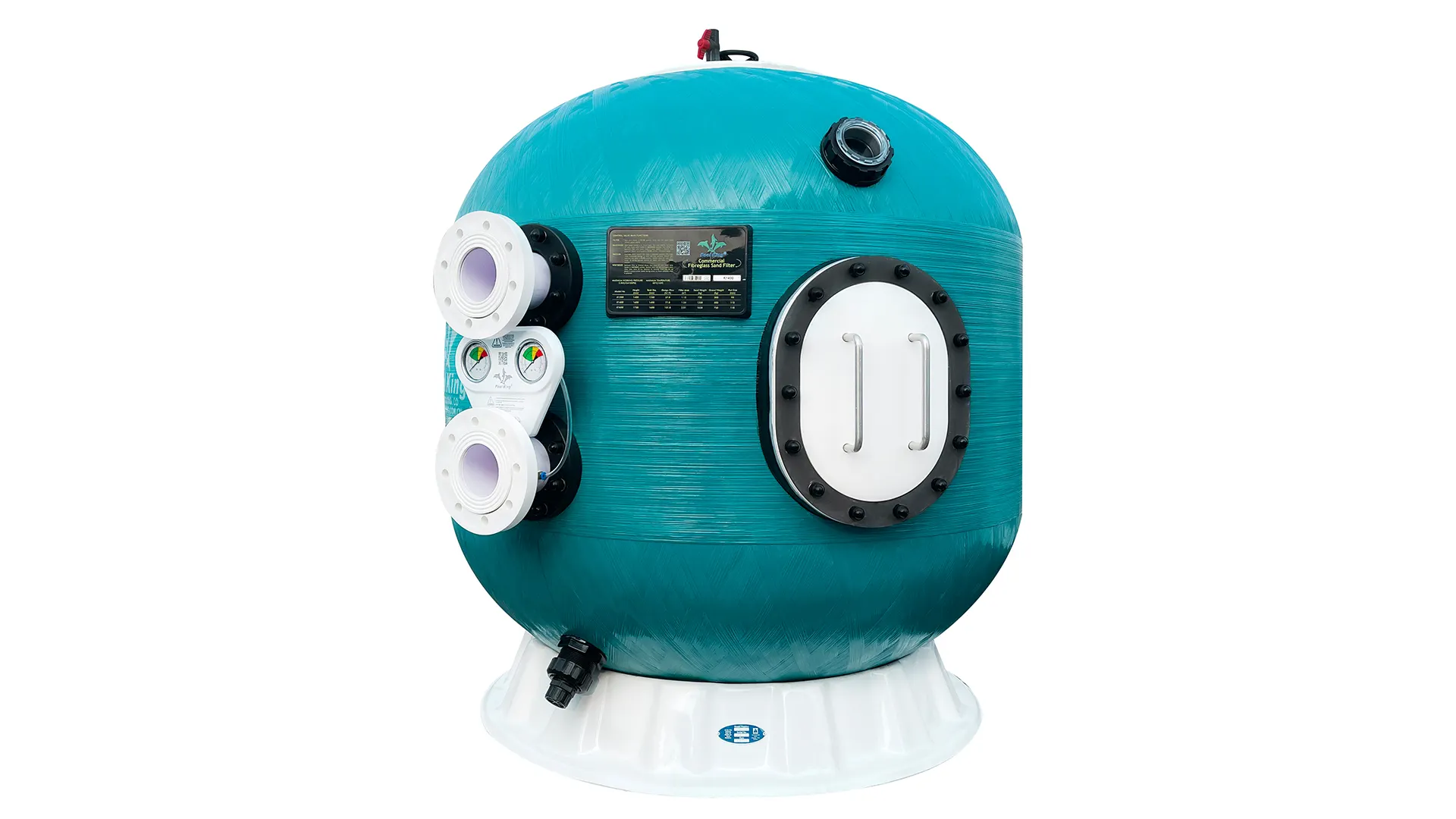

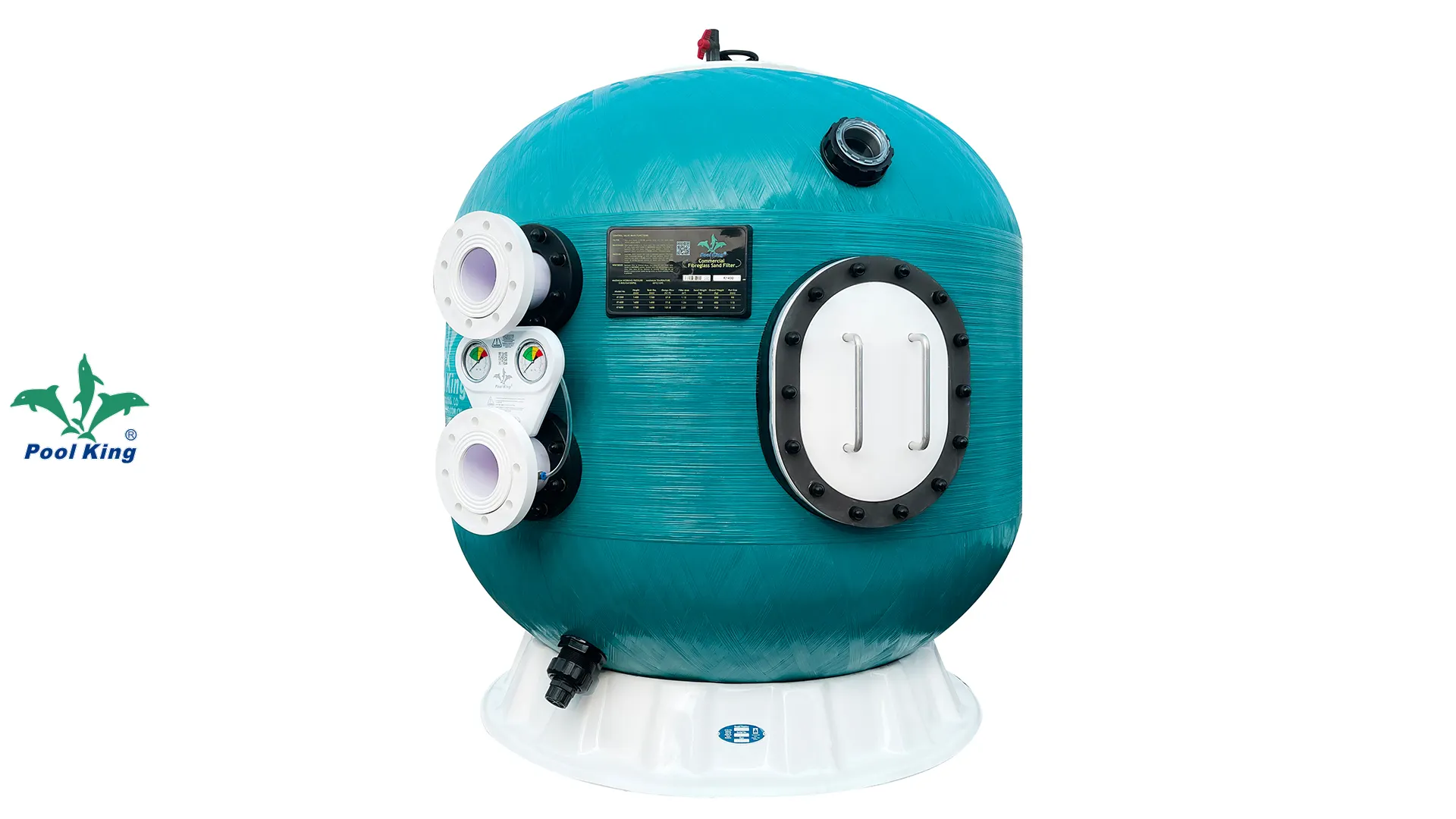

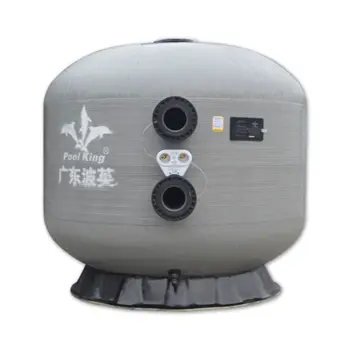

Model: K
- Lateral and nozzle plate are available in option.
- Sight glass and Manhole are available in option.
- Lateral configuration enhances filtration performance.
- Fiberglass filter body is UV and corrosion resistant.
- Air Release Valve and air tube enable easy release of air during operation and testing.
- Nozzle plate system ensures the same flow for filtration and backwash ,ensuring the media bed to reach maximum performance and save up to 25% water during backwash.
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| K1200 | 1200 | 1420 | 30 | 90/3" | 34 | 1.13 | 750 | 300 |
| 40 | 90/3" | 45 | ||||||
| 50 | 110/4" | 57 | ||||||
| K1400 | 1400 | 1670 | 30 | 90/3" | 46 | 1.54 | 1200 | 500 |
| 40 | 110/4" | 61 | ||||||
| 50 | 110/4" | 77 | ||||||
| K1600 | 1600 | 1750 | 30 | 110/4" | 60 | 2.01 | 1850 | 30750 |
| 40 | 160/6" | 80 | ||||||
| 50 | 160/6" | 101 | ||||||
| K1800 | 1800 | 1950 | 30 | 110/4" | 76 | 2.54 | 2500 | 1050 |
| 40 | 160/6" | 101 | ||||||
| 50 | 160/6" | 127 | ||||||
| K2000 | 2000 | 2130 | 30 | 160/6" | 94 | 3.14 | 3300 | 1150 |
| 40 | 160/6" | 125 | ||||||
| 50 | 160/6" | 157 | ||||||
| K2200 | 2200 | 2350 | 30 | 160/6" | 114 | 3.80 | 4150 | 4170 |
| 40 | 160/6" | 152 | ||||||
| 50 | 200/8" | 190 | ||||||
| K2300 | 2300 | 2350 | 30 | 160/6" | 125 | 4.15 | 4900 | 1600 |
| 40 | 200/8" | 166 | ||||||
| 50 | 200/8" | 208 | ||||||
| K2350 | 2350 | 2350 | 30 | 160/6" | 130 | 4.34 | 5000 | 1800 |
| 40 | 200/8" | 175 | ||||||
| 50 | 200/8" | 217 | ||||||
| K2500 | 2500 | 2450 | 30 | 160/6" | 147 | 4.90 | 6000 | 2200 |
| 40 | 200/8" | 196 | ||||||
| 50 | 200/8" | 245 | ||||||
| K3000 | 3000 | 2650 | 30 | 200/8" | 212 | 7.07 | 8600 | 3300 |
| 40 | 200/8" | 282 | ||||||
| 50 | 250/10" | 354 |
Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| K1400N | 1420 | 1900 | 30 | 90/3" | 46 | 1.54 | 1800 | 220 |
| 40 | 110/4" | 61 | ||||||
| 50 | 110/4" | 77 | ||||||
| K1600N | 1620 | 2000 | 30 | 110/4" | 60 | 2.01 | 2300 | 300 |
| 40 | 160/6" | 80 | ||||||
| 50 | 160/6" | 101 | ||||||
| K1800N | 1830 | 2100 | 30 | 110/4" | 76 | 2.54 | 2900 | 360 |
| 40 | 160/6" | 101 | ||||||
| 50 | 160/6" | 127 | ||||||
| K2000N | 2030 | 2200 | 30 | 160/6" | 94 | 3.14 | 3600 | 440 |
| 40 | 160/6" | 125 | ||||||
| 50 | 160/6" | 157 | ||||||
| K2300N | 2300 | 2350 | 30 | 160/6" | 125 | 4.15 | 4800 | 580 |
| 40 | 200/8" | 166 | ||||||
| 50 | 200/8" | 205 | ||||||
| K2500N | 2500 | 2450 | 30 | 160/6" | 147 | 4.90 | 5700 | 680 |
| 40 | 200/8" | 196 | ||||||
| 50 | 200/8" | 245 | ||||||
| K3000 | 3000 | 2650 | 30 | 200/8" | 212 | 7.07 | 8250 | 980 |
| 40 | 200/8" | 282 | ||||||
| 50 | 250/10" | 354 |
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | E（mm） | F（mm） | K（mm） | M（mm） | N（mm） | ΦP（mm） | T（mm） | W（mm） |
| K1200 | 1200 | 1422 | 560 | 180 | 340 | 60 | 740 | 180*180 | 1150 | 80 | 1010 | 600 | 300 |
| K1400 | 1400 | 1670 | 650 | 190 | 350 | 60 | 800 | 300*400 | 1250 | 80 | 1240 | 700 | 300 |
| K1600 | 1600 | 1750 | 680 | 215 | 450 | 60 | 870 | 300*400 | 1450 | 80 | 1450 | 800 | 320 |
| K1800 | 1800 | 1950 | 730 | 215 | 550 | 60 | 91 | 300*400 | 1650 | 80 | 1610 | 850 | 320 |
| K2000 | 2000 | 2130 | 800 | 240 | 550 | 60 | 1050 | 300*400 | 1700 | 80 | 1800 | 900 | 350 |
| K2200 | 2200 | 2350 | 900 | 240 | 600 | 60 | 1070 | 300*400 | 1750 | 80 | 1800 | 1000 | 400 |
| K2300 | 2300 | 2350 | 940 | 240 | 600 | 60 | 1070 | 300*400 | 1800 | 80 | 2010 | 1000 | 400 |
| K2350 | 2350 | 2350 | 940 | 240 | 600 | 60 | 1070 | 300*400 | 1800 | 80 | 2010 | 1000 | 400 |
| K2500 | 2500 | 2450 | 960 | 240 | 600 | 60 | 1100 | 300*400 | 1900 | 80 | 2010 | 1050 | 400 |
| K3000 | 3000 | 2650 | 1020 | 350 | 600 | 60 | 1130 | 300*400 | 2150 | 80 | 2650 | 1100 | 450 |
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | E（mm） | F（mm） | K（mm） | M（mm） | N（mm） | ΦP（mm） | T（mm） | W（mm） |
| K1400N | 1420 | 1900 | 700 | 190 | 550 | 40 | 800 | 300*400 | 1400 | 80 | 1240 | 1000 | 300 |
| K1600N | 1620 | 2000 | 810 | 215 | 550 | 40 | 870 | 300*400 | 1500 | 80 | 1450 | 1000 | 320 |
| K1800N | 1830 | 2100 | 850 | 215 | 550 | 40 | 980 | 300*400 | 1600 | 80 | 1610 | 1000 | 320 |
| K2000N | 2030 | 2200 | 900 | 240 | 550 | 40 | 1030 | 300*400 | 1650 | 80 | 1800 | 1000 | 350 |
| K2300N | 2300 | 2350 | 940 | 240 | 600 | 40 | 1070 | 300*400 | 1800 | 80 | 2010 | 1000 | 400 |
| K2500N | 2500 | 2400 | 960 | 240 | 600 | 40 | 1100 | 300*400 | 1900 | 80 | 2010 | 1000 | 400 |
| K3000N | 3000 | 2650 | 1020 | 350 | 600 | 40 | 1130 | 300*400 | 2150 | 80 | 2650 | 1000 | 400 |

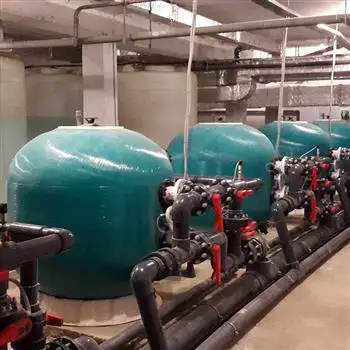

Workshop:
Transportation:
Best swimming pool equipment manufacturer - Poolkin will continue for innovative management and excellent quality. Imagination will subvert the future, intelligent manufacturing will lead the era, that's the motto of Poolking!
