Poolking | Custom waterfall filter aquarium suppliers

Poolking has to go through a secondary surface operation process which mainly includes finish plating, anodizing, powder coating, and heat treatment.
Inquiry

Poolking has developed to be a professional manufacturer and reliable supplier of high-quality products. Throughout the whole production process, we strictly implement the ISO quality management system control. Since established, we always adhere to independent innovation, scientific management, and continuous improvement, and provide high-quality services to meet and even exceed customers' requirements. We guarantee our new product waterfall filter aquarium will bring you a lot of benefits. We are always standby to receive your inquiry. waterfall filter aquarium Poolking have a group of service professionals who are responsible for answering questions raised by customers through the Internet or phone, tracking the logistics status, and helping customers solve any problem. Whether you'd like to get more info on what, why and how we do, try our new product - Custom waterfall filter aquarium suppliers, or would like to partner up, we'd love to hear from you.Poolking is produced in a variety of ways depending on the required performance, and the production procedures mainly include machining, extrusion, forging, stamping, and skiving.

Operation Description:

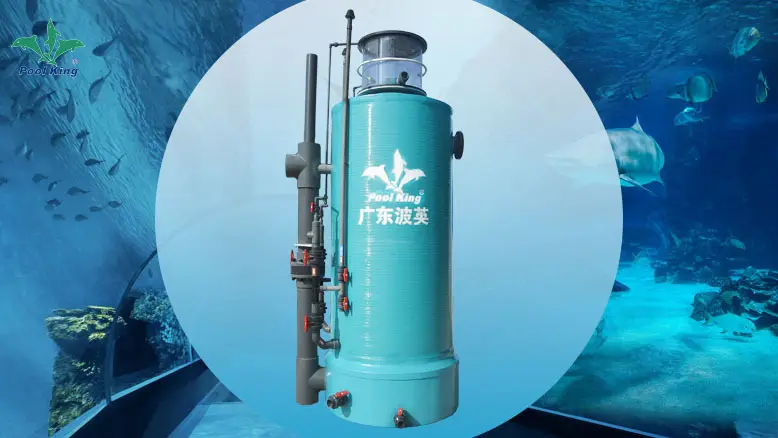

Protein Fractionator is an important equipment for sea water circulation system.In the water recirculating aquaculture or aquarium project,aquatic organism discharge a lot of faeces or other organic impurities.To remove these impurities,we need to clean the water.But generally filters will be blocked.So we design high efficient removal impurities equipment-Protein Fractionator.

Protein Fractionatorr also called Foam Separator.It uses gas tension to adsorb small suspended solids.The main part of Protein Fractionator is a reaction tank.A bubble device under the reaction tank can produce a mass of air bubble.Due to the buoyancy,air bubble will go up constantly and carries  the suspended solids to the top of the reaction tank.Then they can escape from the overflow pipe.

Because most of suspended solids are organic or containing organic nitrogen,so the Protein Fractionator can remove them before bacterial decomposition and avoid them to change into NH3 or H2S or other harmful solvend.So Protein Fractionator is also called Nitrogen Skimmer.

Protein Fractionator's structure is very special,so it can remove the small particles in 20-80um.The bigger particles shall be removed by other filtration system. In addition, the Protein Fractionator should be composed of fully functional circulating water treatment systems along with other sterilization equipment, heating and cooling equipment.

Poolking | Custom waterfall filter aquarium suppliers 4





ModelFilter Diameter(mm)Filter Height(mm)Flow Rate(m³/h)

Process

Retention Time

(min)
In/0utlet(mm)Waste(mm)Venturi Qty(pcs)Pump Power(kw)
NPS400 400 2500 10/7.5 1.5/2 63/90 50 10780.75
NPS600600270022/161.5/2 90/1105015841.1
NPS800

800

310045/341.5/2 90/1105015841.5
NPS900 900310055/421.5/2 90/1405020812.2
NPS1000 1000360085/651.5/2 110/160631584*21.1*2
NPS1200 12003600120/941.5/2 160/200632081*21.5*2
NPS1400 14003800180/130 1.5/2 200/250752081*32.2*2
NPS1600 16003800240/1801.5/2 250/315752081*31.5*3
NPS1800 18004000320/2401.5/2 250/300902081*32.2*3
NPS200020004000400/3001.5/2 200*2/250*2903090*37.5*2




Poolking | Custom waterfall filter aquarium suppliers 6

ModelNPS400NPS600NPS800NPS900NPS1000NPS1200NPS1400NPS1600NPS1800NPS2000
H(mm)2500250031003100360036003800380040004000
∅D(mm)400600800900100012001400160018002000
