Poolking, your best swimming pool equipment manufacturer and supplier with more than 20 years experience. Email: sandy@poolking.co
Always striving toward excellence, Poolking has developed to be a market-driven and customer-oriented enterprise. We focus on strengthening the capabilities of scientific research and completing service businesses. We have set up a customer service department to better provide customers with prompt services including order tracking notice. saltwater aquarium equipment Today, Poolking ranks the top as a professional and experienced supplier in the industry. We can design, develop, manufacture, and sell different series of products on our own combining the efforts and wisdom of all our staff. Also, we are responsible for offering a wide range of services for customers including technical support and prompt Q&A services. You may discover more about our new product saltwater aquarium equipment and our company by directly contacting us.The product keeps the devices from the damage caused by over high temperature or overheats, hence, it extends the service life of the device.

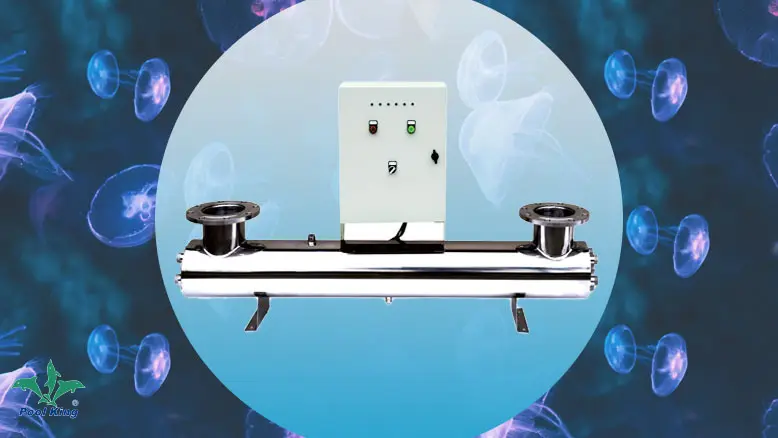

- The reactor use 304 polished stainless steel, the smooth interior leaves no blind spot for sterilization.
- The ultraviolet light tube is equipped with a quartz sleeve, to ensure optimal working temperature.
- The electrical configuration of the device is suitable to most electrical specifications.
- Special exterior design makes the device convenient to use.
- All rounded sterilization, highly efficient, sterilization rate up to 99.9%.
- High output, physical sterilization, no side effects, no secondary pollution.
- The amount of water that can be sterilized ranges from 5.5-250T/H. The device adapts to swimming pools, spa andwater parks of various sizes.
Technical Parameters:
Model | Power (w) | Flow (m3/h) | Voltage (v) | material | Dimension (mm) | Light Power (w) | Connections (Dn) |
UVCn-78 | 78 | 5.5 | 220V/50Hz | 304SS | 930×108×720 | 39×2 | 32 |
UVCn-160 | 160 | 12 | 220V/50Hz | 304SS | 930×108×720 | 80×2 | 50 |
UVC-240 | 240 | 20 | 220V/50Hz | 304SS | 930×159×780 | 80×3 | 65 |
UVC-320 | 320 | 25 | 220V/50Hz | 304SS | 930×159×780 | 80×4 | 80 |
UVC-465 | 465 | 45 | 220V/50Hz | 304SS | 1630×219×830 | 155×3 | 100 |
UVC-620 | 620 | 45 | 220V/50Hz | 304SS | 1630×219×830 | 155×4 | 80/100 |
UVC-775 | 775 | 60 | 220V/50Hz | 304SS | 1630×219×1080 | 155×5 | 150 |
UVC-930 | 930 | 80 | 220V/50Hz | 304SS | 1630×219×1180 | 155×6 | 150 |
UVC-1280 | 1280 | 90 | 220V/50Hz | 304SS | 1630×325×1180 | 320×4 | 150 |
UVCP-1085 | 1085 | 100 | 220V/50Hz | 304SS | 1630×325×1180 | 155×7 | 150 |
UVCP-1395 | 1395 | 125 | 220V/50Hz | 304SS | 1630×325×1200 | 155×9 | 150 |
UVCP-1600 | 1600 | 110 | 220V/50Hz | 304SS | 1630×325×1400 | 320×5 | 150 |
UVCP-1705 | 1705 | 150 | 220V/50Hz | 304SS | 1630×325×1500 | 155×11 | 200 |
UVCP-1920 | 1920 | 130 | 220V/50Hz | 304SS | 1630×325×1500 | 320×6 | 200 |
UVCP-2240 | 2240 | 150 | 220V/50Hz | 304SS | 1630×377×1500 | 320×7 | 200 |
UVCP-2560 | 2560 | 180 | 220V/50Hz | 304SS | 1630×377×1500 | 320×8 | 200 |
UVCP-2880 | 2880 | 200 | 220V/50Hz | 304SS | 1630×377×1500 | 320×9 | 200 |
UVCP-3480 | 3480 | 250 | 220V/50Hz | 304SS | 1630×426×1500 | 320×12 | 250 |
Note:
UV lamp working life ≧ 9000 hours.
UVCn :threaded connectionw, ABS control box;
UVC :flange connections, ABS control box;
UVCP :flange connections ,painted carbon steel control box.
Can be configured according to customer needs manual cleaning device or automatic cleaning device or varietyof advanced omline monitoring instruments and remote control system.
