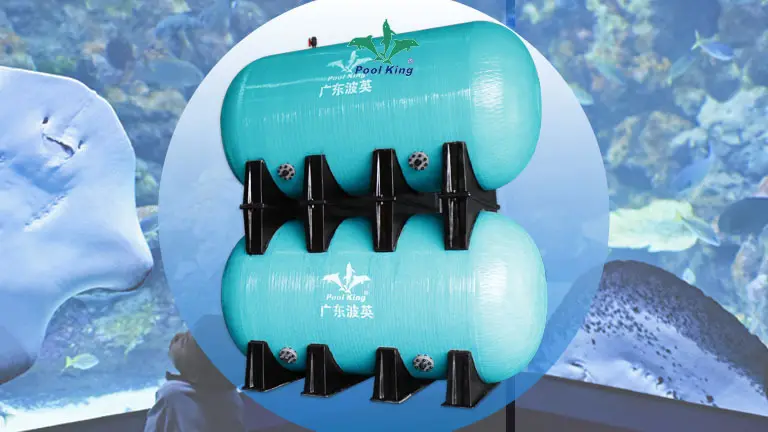

New mini pool filter factory | Poolking
Relying on advanced technology, excellent production capabilities, and perfect service, Poolking takes the lead in the industry now and spreads our Poolking all over the world. Together with our products, our services are also supplied to be the highest-level. mini pool filter Poolking is a comprehensive manufacturer and supplier of high-quality products and one-stop service. We will, as always, actively provide prompt services such. For more details about our mini pool filter and other products, just let us know.The product plays an important role in guaranteeing the normal operation of the device, protecting the components and parts of the device from the burn.
Model: HL
- It is made of multiple layers of anti-corrosion materials. The outer layer is made of CNC multi-axis fiberglass. The internal piping system is uniform and reasonable structure.
- Strong fiberglass base can suppor the big filter body. - 100% pressure testing before packing.
- Exclusive features for superior performance. - Offering attractive and reasonable performance
| Diameter:3000mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL305000 | 3000 | 3230 | 20 | 200/8" | 265 | 13.24 | 26300 | 6875 |
| 30 | 250/10" | 397 | ||||||
| 40 | 315/12" | 530 | ||||||
| HL306000 | 3000 | 3230 | 20 | 200/8" | 322 | 16.08 | 31920 | 8450 |
| 30 | 315/12" | 482 | ||||||
| 40 | 315/12" | 643 | ||||||
| HL307000 | 3000 | 3230 | 20 | 250/10" | 378 | 18.92 | 37545 | 10025 |
| 30 | 315/12" | 568 | ||||||
| 40 | 315/12" | 756 | ||||||
| HL308000 | 3000 | 3230 | 20 | 315/12" | 435 | 21.76 | 43170 | 11600 |
| 30 | 315/12" | 653 | ||||||
| 40 | 355/14" | 870 | ||||||
| Diameter:2500mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL254000 | 2500 | 2710 | 20 | 200/8" | 172 | 8.62 | 13500 | 3725 |
| 30 | 200/8" | 258 | ||||||
| 40 | 250/10" | 345 | ||||||
| HL254500 | 2500 | 2710 | 20 | 200/8" | 196 | 9.80 | 15350 | 4300 |
| 30 | 250/10" | 294 | ||||||
| 40 | 250/10" | 392 | ||||||
| HL254500 | 2500 | 2710 | 20 | 200/8" | 220 | 10.98 | 17200 | 4850 |
| 30 | 250/10" | 329 | ||||||
| 40 | 315/12" | 439 | ||||||
| HL256000 | 2500 | 2710 | 20 | 200/8" | 267 | 13.34 | 20900 | 5975 |
| 30 | 250/10" | 400 | ||||||
| 40 | 315/12" | 533 | ||||||
| HL257000 | 2500 | 2710 | 20 | 250/10" | 314 | 15.70 | 24600 | 7100 |
| 30 | 315/12" | 471 | ||||||
| 40 | 315/12" | 628 | ||||||
| Diameter:2350mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL234000 | 2350 | 2560 | 20 | 200/8" | 172 | 8.17 | 12800 | 3650 |
| 30 | 200/8" | 258 | ||||||
| 40 | 250/10" | 345 | ||||||
| HL234500 | 2350 | 2560 | 20 | 200/8" | 196 | 9.28 | 14525 | 4200 |
| 30 | 250/10" | 294 | ||||||
| 40 | 250/10" | 392 | ||||||
| HL235000 | 2350 | 2560 | 20 | 200/8" | 220 | 10.40 | 16250 | 4750 |
| 30 | 250/10" | 329 | ||||||
| 40 | 250/10" | 439 | ||||||
| HL236000 | 2350 | 2560 | 20 | 200/8" | 267 | 12.62 | 19700 | 5850 |
| 30 | 250/10" | 400 | ||||||
| 40 | 315/12" | 533 | ||||||
| HL237000 | 2350 | 2560 | 20 | 250/10" | 314 | 14.86 | 23150 | 6950 |
| 30 | 315/12" | 471 | ||||||
| 40 | 315/12" | 628 | ||||||
| Diameter:2000mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL202500 | 2000 | 2220 | 20 | 160/6" | 87 | 4.34 | 6000 | 1050 |
| 30 | 160/6" | 130 | ||||||
| 40 | 200/8" | 174 | ||||||
| HL203000 | 2000 | 2220 | 20 | 160/6" | 106 | 5.30 | 7450 | 1300 |
| 30 | 160/6" | 159 | ||||||
| 40 | 200/8" | 212 | ||||||
| HL203500 | 2000 | 2220 | 20 | 160/6" | 125 | 6.25 | 8900 | 1550 |
| 30 | 200/8" | 187 | ||||||
| 40 | 200/8" | 250 | ||||||
| HL204000 | 2000 | 2220 | 20 | 160/6" | 144 | 7.21 | 10350 | 1800 |
| 30 | 200/8" | 216 | ||||||
| 40 | 250/10" | 288 | ||||||
| HL204500 | 2000 | 2220 | 20 | 200/8" | 163 | 8.16 | 11800 | 2080 |
| 30 | 200/8" | 245 | ||||||
| 40 | 250/10" | 326 | ||||||
| Diameter:1800mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL182500 | 1800 | 2050 | 20 | 160/6" | 75 | 3.74 | 4850 | 980 |
| 30 | 160/6" | 112 | ||||||
| 40 | 160/6" | 150 | ||||||
| HL183000 | 1800 | 2050 | 20 | 160/6" | 92 | 4.58 | 5930 | 1230 |
| 30 | 160/6" | 137 | ||||||
| 40 | 200/8" | 183 | ||||||
| HL183500 | 1800 | 2050 | 20 | 160/6" | 108 | 5.41 | 7000 | 1480 |
| 30 | 200/8" | 162 | ||||||
| 40 | 200/8" | 216 | ||||||
| HL184000 | 1800 | 2050 | 20 | 160/6" | 125 | 6.25 | 8080 | 1700 |
| 30 | 200/8" | 187 | ||||||
| 40 | 250/10" | 250 | ||||||
| Diameter:1600mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL161900 | 1600 | 1830 | 20 | 110/4" | 49 | 2.47 | 2800 | 600 |
| 30 | 160/6" | 74 | ||||||
| 40 | 160/6" | 99 | ||||||
| HL162500 | 1600 | 1830 | 20 | 110/4" | 67 | 3.36 | 3800 | 850 |
| 30 | 160/6" | 101 | ||||||
| 40 | 160/6" | 134 | ||||||
| HL163000 | 1600 | 1830 | 20 | 160/6" | 82 | 4.10 | 4700 | 1050 |
| 30 | 160/6" | 123 | ||||||
| 40 | 200/8" | 164 | ||||||
| Diameter:1400mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL141900 | 1400 | 1600 | 20 | 110/4" | 45 | 2.23 | 2000 | 580 |
| 30 | 110/4" | 67 | ||||||
| 40 | 160/6" | 89 | ||||||
| HL142500 | 1400 | 1600 | 20 | 110/4" | 60 | 3.02 | 2750 | 800 |
| 30 | 160/6" | 91 | ||||||
| 40 | 160/6" | 121 | ||||||
| HL143000 | 1400 | 1600 | 20 | 160/6" | 73 | 3.67 | 3375 | 1000 |
| 30 | 160/6" | 110 | ||||||
| 40 | 160/6" | 147 | ||||||
| Diameter:1200mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL121900 | 1200 | 1390 | 20 | 90/3" | 39 | 1.96 | 1100 | 430 |
| 30 | 110/4" | 59 | ||||||
| 40 | 160/6" | 79 | ||||||
| HL122300 | 1200 | 1390 | 20 | 110/4" | 48 | 2.42 | 1430 | 500 |
| 30 | 160/6" | 73 | ||||||
| 40 | 160/6" | 97 | ||||||
| HL122500 | 1200 | 1390 | 20 | 110/4" | 53 | 2.65 | 1750 | 700 |
| 30 | 160/6" | 79 | ||||||
| 40 | 160/6" | 106 | ||||||
| HL122700 | 1200 | 1390 | 20 | 110/4" | 57 | 2.87 | 2080 | 830 |
| 30 | 160/6" | 86 | ||||||
| 40 | 160/6" | 115 | ||||||
| HL123000 | 1200 | 1390 | 20 | 110/4" | 64 | 3.21 | 2330 | 925 |
| 30 | 160/6" | 96 | ||||||
| 40 | 160/6" | 129 | ||||||
Diameter:3000mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL305000 | 3000 | 3230 | 900 | 510 | 1500 | 160 | 2310 | 5000 | 5110 | 1000-1200 | 550 |
| HL306000 | 3000 | 3230 | 900 | 510 | 1500 | 160 | 2310 | 6000 | 6110 | 1000-1200 | 550 |
| HL307000 | 3000 | 3230 | 900 | 510 | 1500 | 160 | 2310 | 7000 | 7110 | 1000-1200 | 550 |
| HL308000 | 3000 | 3230 | 900 | 510 | 1500 | 160 | 2310 | 8000 | 8110 | 1000-1200 | 550 |
Diameter:2500mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL254000 | 2500 | 2710 | 1360 | 450 | 710 | 160 | 1900 | 4000 | 4380 | 1000-1200 | 550 |
| HL254500 | 2500 | 2710 | 1360 | 450 | 710 | 160 | 1900 | 4500 | 4940 | 1000-1200 | 550 |
| HL255000 | 2500 | 2710 | 1360 | 450 | 710 | 160 | 1900 | 5000 | 5440 | 1000-1200 | 550 |
| HL256000 | 2500 | 2710 | 625 | 450 | 1400 | 160 | 1900 | 6000 | 6110 | 1000-1200 | 550 |
| HL257000 | 2500 | 2710 | 625 | 450 | 1400 | 160 | 1900 | 7000 | 7110 | 1000-1200 | 550 |
Diameter:2350mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL234000 | 2350 | 2560 | 1270 | 300 | 710 | 160 | 1750 | 4000 | 4380 | 1000-1200 | 500 |
| HL534500 | 2350 | 2560 | 1270 | 300 | 710 | 160 | 1750 | 4500 | 4880 | 1000-1200 | 500 |
| HL235000 | 2350 | 2560 | 1270 | 300 | 710 | 160 | 1750 | 5000 | 5440 | 1000-1200 | 500 |
| HL236000 | 2350 | 2560 | 720 | 300 | 1350 | 160 | 1750 | 6000 | 6110 | 1000-1200 | 500 |
| HL237000 | 2350 | 2560 | 720 | 300 | 1350 | 160 | 1750 | 7000 | 7110 | 1000-1200 | 500 |
Diameter:2000mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL205000 | 2000 | 2220 | 1090 | 330 | 550 | 160 | 1490 | 2500 | 2730 | 1100 | 400 |
| HL203000 | 2000 | 2220 | 1090 | 330 | 550 | 160 | 1490 | 3000 | 3230 | 1100 | 400 |
| HL203500 | 2000 | 2220 | 1090 | 330 | 550 | 160 | 1490 | 3500 | 3730 | 1100 | 400 |
| HL20400 | 2000 | 2220 | 1090 | 330 | 550 | 160 | 1490 | 4000 | 4230 | 1100 | 400 |
| HL204500 | 2000 | 2220 | 1090 | 330 | 550 | 160 | 1490 | 4500 | 4730 | 1100 | 400 |
Diameter:1800mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL182500 | 1800 | 2050 | 1040 | 300 | 550 | 160 | 1400 | 2500 | 2700 | 1000 | 300 |
| HL183500 | 1800 | 2050 | 1040 | 300 | 550 | 160 | 1400 | 3000 | 3200 | 1000 | 300 |
| HL183500 | 1800 | 2050 | 1040 | 300 | 550 | 160 | 1400 | 3500 | 3700 | 1000 | 300 |
| HL184000 | 1800 | 2050 | 1040 | 300 | 550 | 160 | 1400 | 4000 | 4200 | 1000 | 300 |
Diameter:1600mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL161900 | 1600 | 1830 | 925 | 300 | 450 | 110 | 1230 | 1900 | 2100 | 950 | 250 |
| HL162500 | 1600 | 1830 | 925 | 300 | 450 | 110 | 1230 | 2500 | 2700 | 950 | 250 |
| HL163000 | 1600 | 1830 | 925 | 300 | 450 | 110 | 1230 | 3000 | 2300 | 950 | 250 |
Diameter:1400mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL141900 | 1400 | 1600 | 810 | 300 | 400 | 110 | 960 | 1900 | 2050 | 750 | 225 |
| HL142500 | 1400 | 1600 | 810 | 300 | 400 | 110 | 960 | 2500 | 2450 | 750 | 225 |
| HL146000 | 1400 | 1600 | 810 | 300 | 400 | 110 | 960 | 3000 | 3150 | 750 | 225 |
Diameter:1200mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL121900 | 1200 | 1390 | 725 | 250 | 340 | 80 | 900 | 1900 | 2050 | 550 | 225 |
| HL122300 | 1200 | 1390 | 725 | 250 | 340 | 80 | 900 | 2300 | 2450 | 550 | 225 |
| HL122500 | 1200 | 1390 | 725 | 250 | 340 | 80 | 900 | 2500 | 2650 | 550 | 225 |
| HL122700 | 1200 | 1390 | 725 | 250 | 340 | 80 | 900 | 2700 | 2850 | 550 | 225 |
| HL123000 | 1200 | 1390 | 725 | 250 | 340 | 80 | 900 | 3000 | 3150 | 550 | 225 |
