Poolking has developed to be a professional manufacturer and reliable supplier of high-quality products. Throughout the whole production process, we strictly implement the ISO quality management system control. Since established, we always adhere to independent innovation, scientific management, and continuous improvement, and provide high-quality services to meet and even exceed customers' requirements. We guarantee our new product 3 stainless steel butterfly valve will bring you a lot of benefits. We are always standby to receive your inquiry. 3 stainless steel butterfly valve We will do our best to serve customers throughout the whole process from product design, R&D, to delivery. Welcome to contact us for further information about our new product 3 stainless steel butterfly valve or our company.Poolking is completed after a series of the production processes, namely, mold extrusion, turning, milling, drilling, lathing, grinding, and wire cutting.

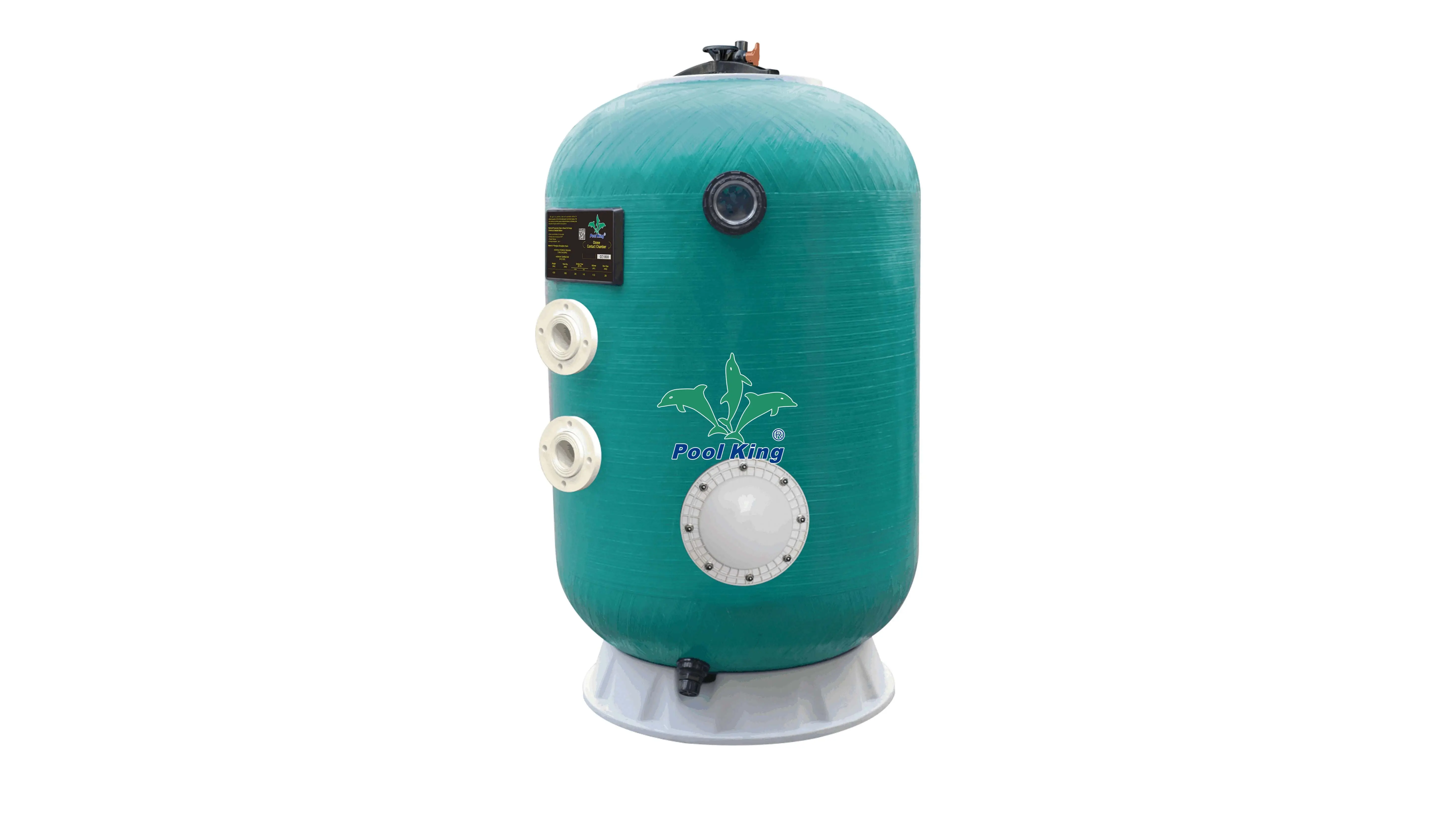

Model:HK/HKN
- Fiberglass filter body is UV and corrosion Resistant.
- 0.8~1.2M BED depth for finer filtration.
- Lateral with tight gaps are able to keep out filter media and dirt particles.
- Sight glass and Sand drain are available in option.
- Nozzle plate system ensures maximum performance and save up to 25% of backwash water.
- Lateral and nozzle plate are available in option. - Flange or 6way multiport valve are available in option.
| Model | Filter Diameter （mm） | Filter Height（mm） | Design Flow（m³/h） | Filter Area（m²） | Connections（inch/mm） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HK15800 | 800 | 1600 | 20.0 | 0.50 | 2"/63 | 455 | 170 |
| HK15900 | 900 | 1600 | 25.6 | 0.64 | 2"/63 | 585 | 230 |
| HK151000 | 1000 | 1600 | 31.6 | 0.79 | 2"/63 | 720 | 270 |
| HK151200 | 1200 | 1600 | 45.2 | 1.13 | 3"/90 | 1030 | 450 |
| HK151400 | 1400 | 1600 | 61.6 | 1.54 | 3"/90 | 1100 | 500 |
| HK20800 | 800 | 2100 | 15.0 | 0.50 | 2"/63 | 770 | 170 |
| HK20900 | 900 | 2100 | 19.0 | 0.64 | 2"/63 | 990 | 230 |
| HK201000 | 1000 | 2100 | 23.7 | 0.79 | 2"/63 | 1220 | 270 |
| HK201200 | 1200 | 2100 | 33.9 | 1.13 | 3"/90 | 1740 | 450 |
| HK201400 | 1400 | 2100 | 46.2 | 1.54 | 3"/90 | 2100 | 500 |
| Model | HK15800 | HK15900 | HK151000 | HK151200 | HK151400 | HK20800 | HK20900 | HK201000 | HK201200 | HK201400 |
| φD(mm) | 800 | 900 | 1000 | 1200 | 1400 | 800 | 900 | 100 | 1200 | 1400 |
| H(mm) | 1600 | 1600 | 1600 | 1600 | 1600 | 2100 | 2100 | 2100 | 2100 | 2100 |
| A(mm) | 550 | 550 | 550 | 650 | 650 | 800 | 800 | 800 | 800 | 720 |
| B(mm) | 150 | 150 | 150 | 180 | 190 | 150 | 150 | 150 | 180 | 190 |
| C(mm) | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
| φE(mm) | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| F(mm) | 520 | 520 | 520 | 600 | 600 | 520 | 520 | 520 | 600 | 600 |
| φK(mm) | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 |
| M(mm) | 1180 | 1200 | 1160 | 1100 | 1120 | 1650 | 1650 | 1650 | 1650 | 1650 |
| φN(mm) | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| φP(mm) | 790 | 790 | 790 | 1010 | 1240 | 790 | 790 | 790 | 1010 | 1240 |
| T(mm) | 800 | 800 | 800 | 800 | 800 | 1250 | 1250 | 1250 | 1250 | 1240 |
| W(mm) | 350 | 350 | 350 | 350 | 350 | 400 | 400 | 400 | 400 | 400 |
| Model | Filter Diameter （mm） | Filter Height（mm） | Design Flow（m³/h） | Filter Area（m²） | Connections（inch/mm） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HK15800N | 800 | 1600 | 20.0 | 0.50 | 2"/63 | 455 | 110 |
| HK15900N | 900 | 1600 | 25.6 | 0.64 | 2"/63 | 585 | 145 |
| HK151000N | 1000 | 1600 | 31.6 | 0.79 | 2"/63 | 720 | 175 |
| HK151200N | 1200 | 1600 | 45.2 | 1.13 | 3"/90 | 1030 | 255 |
| HK151400N | 1400 | 1600 | 61.6 | 1.54 | 3"/90 | 1100 | 320 |
| HK20800N | 800 | 2100 | 15.0 | 0.50 | 2"/63 | 770 | 110 |
| HK20900N | 900 | 2100 | 19.0 | 0.64 | 2"/63 | 990 | 145 |
| HK201000N | 1000 | 2100 | 23.7 | 0.79 | 2"/63 | 1220 | 175 |
| HK201200N | 1200 | 2100 | 33.9 | 1.13 | 3"/90 | 1740 | 255 |
| HK201400N | 1400 | 2100 | 46.2 | 1.54 | 3"/90 | 2100 | 320 |
| Model | HK15800N | HK15900N | HK151000N | HK151200N | HK151400N | HK20800N | HK20900N | HK201000N | HK201200N | HK201400N |
| φD(mm) | 800 | 900 | 1000 | 1200 | 1400 | 800 | 900 | 100 | 1200 | 1400 |
| H(mm) | 1600 | 1600 | 1600 | 1600 | 1600 | 2100 | 2100 | 2100 | 2100 | 2100 |
| A(mm) | 550 | 550 | 550 | 650 | 650 | 800 | 800 | 800 | 800 | 720 |
| B(mm) | 150 | 150 | 150 | 180 | 190 | 150 | 150 | 150 | 180 | 190 |
| C(mm) | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
| φE(mm) | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| F(mm) | 520 | 520 | 520 | 600 | 600 | 520 | 520 | 520 | 600 | 600 |
| φK(mm) | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 |
| M(mm) | 1120 | 1120 | 1120 | 1120 | 1120 | 1600 | 1600 | 1600 | 1600 | 1600 |
| φN(mm) | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| φP(mm) | 790 | 790 | 790 | 1010 | 1240 | 790 | 790 | 790 | 1010 | 1240 |
| T(mm) | 700 | 700 | 700 | 700 | 700 | 1200 | 1200 | 1200 | 1200 | 1200 |
| W(mm) | 350 | 350 | 350 | 350 | 350 | 400 | 400 | 400 | 400 | 400 |
