Poolking, your best swimming pool equipment manufacturer and supplier with more than 20 years experience. Email: sandy@poolking.co
Poolking has developed to be a professional manufacturer and reliable supplier of high-quality products. Throughout the whole production process, we strictly implement the ISO quality management system control. Since established, we always adhere to independent innovation, scientific management, and continuous improvement, and provide high-quality services to meet and even exceed customers' requirements. We guarantee our new product 3 stainless steel butterfly valve will bring you a lot of benefits. We are always standby to receive your inquiry. 3 stainless steel butterfly valve We promise that we provide every customer with high-quality products including 3 stainless steel butterfly valve and comprehensive services. If you want to know more details, we are glad to tell you.Poolking is developed with a deep investigation. Its air circulation part, materials and layout of the interface with the device are all seriously considered by the R&D team.

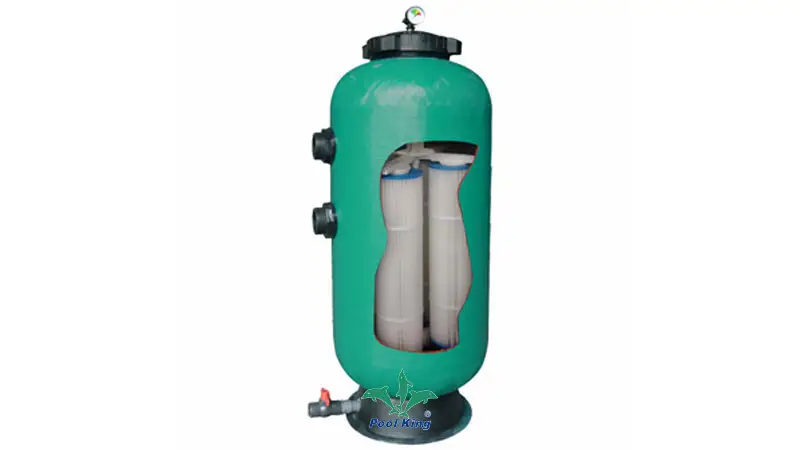

Model: KD/KC
- UV inhibited filament wound structural fiberglass tanks. - 2”or 63mm Inlet/Outlet PVC unions.
- Either 6 way Multiport or Push-Pull valve available for DE models.
- Easy removal or installation of cartridges or DE elements. - cartridges in 225, 250, 350, 450 Sq. Ft sizes,fully convertible to DE.
- DE elements in 35, 45, 75, 90 Sq. Ft. sizes,fully convertible to Cartridges. -Large clear lock ring sealed lid for easy interior viewing and media installation/removal.
- Exclusive integral Inlet/Outlet manifold eliminates conventional bulkhead fittings. - Hose bib drain valve allows removal of tank debris away from mechanical area
Model | Filter Diameter(mm) | Filter Height(mm) | Design Flow (m³/h) | Filter Area (m²) | Connections (inch/mm) | Diatomite weight(kg) | ØD(mm) | H(mm) | A(mm) | B(mm) | C(mm) | ØP(mm) | E(mm) |
KC225 | 500 | 965 | 19.08 | 20.9 | 2”/63 | - | 500 | 965 | 341 | 125 | 220 | 390 | 32 |
KC250 | 500 | 965 | 21.35 | 23.2 | 2”/63 | - | 500 | 965 | 341 | 125 | 220 | 390 | 32 |
KC350 | 500 | 1270 | 32.30 | 35.3 | 2”/63 | - | 500 | 1270 | 646 | 125 | 220 | 390 | 32 |
KC450 | 500 | 1270 | 34.07 | 41.8 | 2”/63 | - | 500 | 1270 | 646 | 125 | 220 | 390 | 32 |
KC520 | 500 | 1270 | 36.50 | 44.8 | 2”/63 | - | 500 | 1270 | 646 | 125 | 220 | 390 | 32 |
KD35 | 500 | 965 | 15.90 | 3.25 | 2”/63 | 1.59 | 500 | 965 | 341 | 125 | 220 | 390 | 32 |
KD45 | 500 | 965 | 20.44 | 4.18 | 2”/63 | 2.04 | 500 | 965 | 341 | 125 | 220 | 390 | 32 |
KD75 | 500 | 1270 | 34.07 | 6.97 | 2”/63 | 3.40 | 500 | 1270 | 646 | 125 | 220 | 390 | 32 |
KD90 | 500 | 1270 | 41.80 | 8.36 | 2”/63 | 4.08 | 500 | 1270 | 646 | 125 | 220 | 390 | 32 |
