High-quality marine tank uv sterilizer company | Poolking
Over the years, Poolking has been offering customers high-quality products and efficient after-sales services with the aim of bringing unlimited benefits for them. marine tank uv sterilizer We have professional employees who have years of experience in the industry. It is them that provides high-quality services for customers all over the world. If you have any questions about our new product marine tank uv sterilizer or want to know more about our company, feel free to contact us. Our professionals would love to help you at any time.The design of Poolking is a consequence of many combined parameters. Geometry, materials, surface area design, and air velocity are all seriously considered in enhancing the performance of the product.

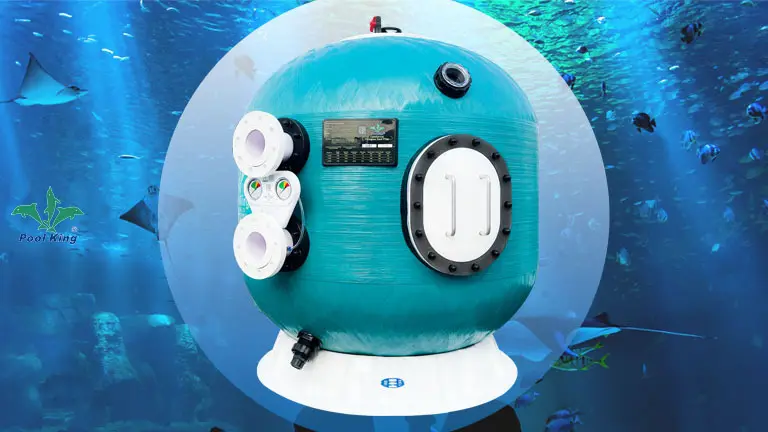

Model: K
- Lateral and nozzle plate are available in option.
- Sight glass and Manhole are available in option.
- Lateral configuration enhances filtration performance.
- Fiberglass filter body is UV and corrosion resistant.
- Air Release Valve and air tube enable easy release of air during operation and testing.
- Nozzle plate system ensures the same flow for filtration and backwash ,ensuring the media bed to reach maximum performance and save up to 25% water during backwash.
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| K1200 | 1200 | 1420 | 30 | 90/3" | 34 | 1.13 | 750 | 300 |
| 40 | 90/3" | 45 | ||||||
| 50 | 110/4" | 57 | ||||||
| K1400 | 1400 | 1670 | 30 | 90/3" | 46 | 1.54 | 1200 | 500 |
| 40 | 110/4" | 61 | ||||||
| 50 | 110/4" | 77 | ||||||
| K1600 | 1600 | 1750 | 30 | 110/4" | 60 | 2.01 | 1850 | 30750 |
| 40 | 160/6" | 80 | ||||||
| 50 | 160/6" | 101 | ||||||
| K1800 | 1800 | 1950 | 30 | 110/4" | 76 | 2.54 | 2500 | 1050 |
| 40 | 160/6" | 101 | ||||||
| 50 | 160/6" | 127 | ||||||
| K2000 | 2000 | 2130 | 30 | 160/6" | 94 | 3.14 | 3300 | 1150 |
| 40 | 160/6" | 125 | ||||||
| 50 | 160/6" | 157 | ||||||
| K2200 | 2200 | 2350 | 30 | 160/6" | 114 | 3.80 | 4150 | 4170 |
| 40 | 160/6" | 152 | ||||||
| 50 | 200/8" | 190 | ||||||
| K2300 | 2300 | 2350 | 30 | 160/6" | 125 | 4.15 | 4900 | 1600 |
| 40 | 200/8" | 166 | ||||||
| 50 | 200/8" | 208 | ||||||
| K2350 | 2350 | 2350 | 30 | 160/6" | 130 | 4.34 | 5000 | 1800 |
| 40 | 200/8" | 175 | ||||||
| 50 | 200/8" | 217 | ||||||
| K2500 | 2500 | 2450 | 30 | 160/6" | 147 | 4.90 | 6000 | 2200 |
| 40 | 200/8" | 196 | ||||||
| 50 | 200/8" | 245 | ||||||
| K3000 | 3000 | 2650 | 30 | 200/8" | 212 | 7.07 | 8600 | 3300 |
| 40 | 200/8" | 282 | ||||||
| 50 | 250/10" | 354 |
Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| K1400N | 1420 | 1900 | 30 | 90/3" | 46 | 1.54 | 1800 | 220 |
| 40 | 110/4" | 61 | ||||||
| 50 | 110/4" | 77 | ||||||
| K1600N | 1620 | 2000 | 30 | 110/4" | 60 | 2.01 | 2300 | 300 |
| 40 | 160/6" | 80 | ||||||
| 50 | 160/6" | 101 | ||||||
| K1800N | 1830 | 2100 | 30 | 110/4" | 76 | 2.54 | 2900 | 360 |
| 40 | 160/6" | 101 | ||||||
| 50 | 160/6" | 127 | ||||||
| K2000N | 2030 | 2200 | 30 | 160/6" | 94 | 3.14 | 3600 | 440 |
| 40 | 160/6" | 125 | ||||||
| 50 | 160/6" | 157 | ||||||
| K2300N | 2300 | 2350 | 30 | 160/6" | 125 | 4.15 | 4800 | 580 |
| 40 | 200/8" | 166 | ||||||
| 50 | 200/8" | 205 | ||||||
| K2500N | 2500 | 2450 | 30 | 160/6" | 147 | 4.90 | 5700 | 680 |
| 40 | 200/8" | 196 | ||||||
| 50 | 200/8" | 245 | ||||||
| K3000 | 3000 | 2650 | 30 | 200/8" | 212 | 7.07 | 8250 | 980 |
| 40 | 200/8" | 282 | ||||||
| 50 | 250/10" | 354 |
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | E（mm） | F（mm） | K（mm） | M（mm） | N（mm） | ΦP（mm） | T（mm） | W（mm） |
| K1200 | 1200 | 1422 | 560 | 180 | 340 | 60 | 740 | 180*180 | 1150 | 80 | 1010 | 600 | 300 |
| K1400 | 1400 | 1670 | 650 | 190 | 350 | 60 | 800 | 300*400 | 1250 | 80 | 1240 | 700 | 300 |
| K1600 | 1600 | 1750 | 680 | 215 | 450 | 60 | 870 | 300*400 | 1450 | 80 | 1450 | 800 | 320 |
| K1800 | 1800 | 1950 | 730 | 215 | 550 | 60 | 91 | 300*400 | 1650 | 80 | 1610 | 850 | 320 |
| K2000 | 2000 | 2130 | 800 | 240 | 550 | 60 | 1050 | 300*400 | 1700 | 80 | 1800 | 900 | 350 |
| K2200 | 2200 | 2350 | 900 | 240 | 600 | 60 | 1070 | 300*400 | 1750 | 80 | 1800 | 1000 | 400 |
| K2300 | 2300 | 2350 | 940 | 240 | 600 | 60 | 1070 | 300*400 | 1800 | 80 | 2010 | 1000 | 400 |
| K2350 | 2350 | 2350 | 940 | 240 | 600 | 60 | 1070 | 300*400 | 1800 | 80 | 2010 | 1000 | 400 |
| K2500 | 2500 | 2450 | 960 | 240 | 600 | 60 | 1100 | 300*400 | 1900 | 80 | 2010 | 1050 | 400 |
| K3000 | 3000 | 2650 | 1020 | 350 | 600 | 60 | 1130 | 300*400 | 2150 | 80 | 2650 | 1100 | 450 |
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | E（mm） | F（mm） | K（mm） | M（mm） | N（mm） | ΦP（mm） | T（mm） | W（mm） |
| K1400N | 1420 | 1900 | 700 | 190 | 550 | 40 | 800 | 300*400 | 1400 | 80 | 1240 | 1000 | 300 |
| K1600N | 1620 | 2000 | 810 | 215 | 550 | 40 | 870 | 300*400 | 1500 | 80 | 1450 | 1000 | 320 |
| K1800N | 1830 | 2100 | 850 | 215 | 550 | 40 | 980 | 300*400 | 1600 | 80 | 1610 | 1000 | 320 |
| K2000N | 2030 | 2200 | 900 | 240 | 550 | 40 | 1030 | 300*400 | 1650 | 80 | 1800 | 1000 | 350 |
| K2300N | 2300 | 2350 | 940 | 240 | 600 | 40 | 1070 | 300*400 | 1800 | 80 | 2010 | 1000 | 400 |
| K2500N | 2500 | 2400 | 960 | 240 | 600 | 40 | 1100 | 300*400 | 1900 | 80 | 2010 | 1000 | 400 |
| K3000N | 3000 | 2650 | 1020 | 350 | 600 | 40 | 1130 | 300*400 | 2150 | 80 | 2650 | 1000 | 400 |
Workshop:
Transportation:
Best swimming pool equipment manufacturer - Poolkin will continue for innovative management and excellent quality. Imagination will subvert the future, intelligent manufacturing will lead the era, that's the motto of Poolking!
