Custom pool filter for inflatable pool company Manufacturer | Poolking
Guided by scientific and technological innovation, Poolking always keeps outward-oriented and sticks to the positive development on the basis of technological innovation. pool filter for inflatable pool Today, Poolking ranks the top as a professional and experienced supplier in the industry. We can design, develop, manufacture, and sell different series of products on our own combining the efforts and wisdom of all our staff. Also, we are responsible for offering a wide range of services for customers including technical support and prompt Q&A services. You may discover more about our new product pool filter for inflatable pool and our company by directly contacting us.The product is highly resistant to pressure. It is made of composite metal materials such as copper or aluminum alloy which feature excellent hardness and anti-impact resistance.

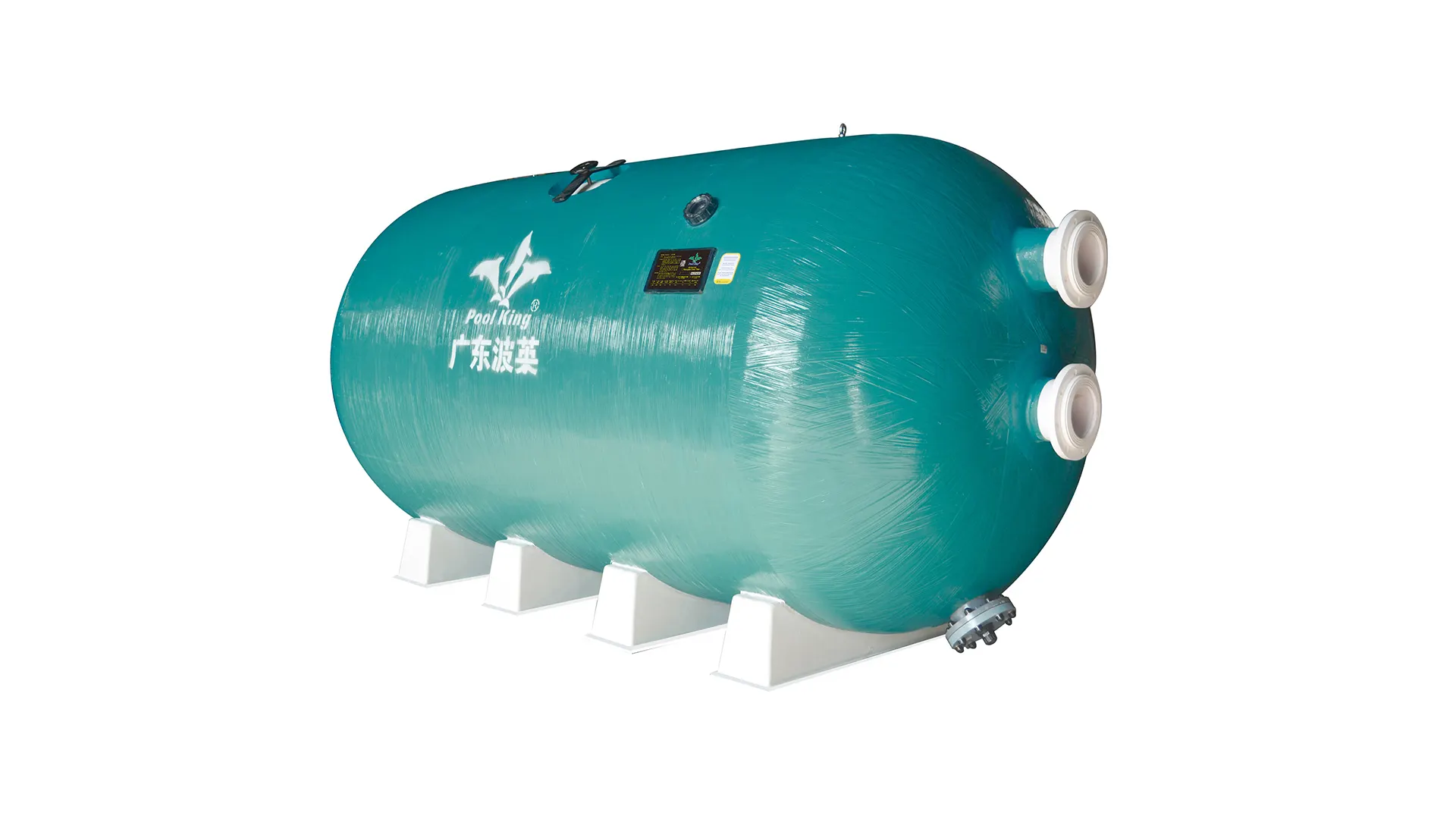

Model: HL
- It is made of multiple layers of anti-corrosion materials. The outer layer is made of CNC multi-axis fiberglass. The internal piping system is uniform and reasonable structure.
- Strong fiberglass base can suppor the big filter body. - 100% pressure testing before packing.
- Exclusive features for superior performance. - Offering attractive and reasonable performance
| Diameter:3000mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL305000 | 3000 | 3230 | 20 | 200/8" | 265 | 13.24 | 26300 | 6875 |
| 30 | 250/10" | 397 | ||||||
| 40 | 315/12" | 530 | ||||||
| HL306000 | 3000 | 3230 | 20 | 200/8" | 322 | 16.08 | 31920 | 8450 |
| 30 | 315/12" | 482 | ||||||
| 40 | 315/12" | 643 | ||||||
| HL307000 | 3000 | 3230 | 20 | 250/10" | 378 | 18.92 | 37545 | 10025 |
| 30 | 315/12" | 568 | ||||||
| 40 | 315/12" | 756 | ||||||
| HL308000 | 3000 | 3230 | 20 | 315/12" | 435 | 21.76 | 43170 | 11600 |
| 30 | 315/12" | 653 | ||||||
| 40 | 355/14" | 870 | ||||||
| Diameter:2500mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL254000 | 2500 | 2710 | 20 | 200/8" | 172 | 8.62 | 13500 | 3725 |
| 30 | 200/8" | 258 | ||||||
| 40 | 250/10" | 345 | ||||||
| HL254500 | 2500 | 2710 | 20 | 200/8" | 196 | 9.80 | 15350 | 4300 |
| 30 | 250/10" | 294 | ||||||
| 40 | 250/10" | 392 | ||||||
| HL254500 | 2500 | 2710 | 20 | 200/8" | 220 | 10.98 | 17200 | 4850 |
| 30 | 250/10" | 329 | ||||||
| 40 | 315/12" | 439 | ||||||
| HL256000 | 2500 | 2710 | 20 | 200/8" | 267 | 13.34 | 20900 | 5975 |
| 30 | 250/10" | 400 | ||||||
| 40 | 315/12" | 533 | ||||||
| HL257000 | 2500 | 2710 | 20 | 250/10" | 314 | 15.70 | 24600 | 7100 |
| 30 | 315/12" | 471 | ||||||
| 40 | 315/12" | 628 | ||||||
| Diameter:2350mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL234000 | 2350 | 2560 | 20 | 200/8" | 172 | 8.17 | 12800 | 3650 |
| 30 | 200/8" | 258 | ||||||
| 40 | 250/10" | 345 | ||||||
| HL234500 | 2350 | 2560 | 20 | 200/8" | 196 | 9.28 | 14525 | 4200 |
| 30 | 250/10" | 294 | ||||||
| 40 | 250/10" | 392 | ||||||
| HL235000 | 2350 | 2560 | 20 | 200/8" | 220 | 10.40 | 16250 | 4750 |
| 30 | 250/10" | 329 | ||||||
| 40 | 250/10" | 439 | ||||||
| HL236000 | 2350 | 2560 | 20 | 200/8" | 267 | 12.62 | 19700 | 5850 |
| 30 | 250/10" | 400 | ||||||
| 40 | 315/12" | 533 | ||||||
| HL237000 | 2350 | 2560 | 20 | 250/10" | 314 | 14.86 | 23150 | 6950 |
| 30 | 315/12" | 471 | ||||||
| 40 | 315/12" | 628 | ||||||
| Diameter:2000mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL202500 | 2000 | 2220 | 20 | 160/6" | 87 | 4.34 | 6000 | 1050 |
| 30 | 160/6" | 130 | ||||||
| 40 | 200/8" | 174 | ||||||
| HL203000 | 2000 | 2220 | 20 | 160/6" | 106 | 5.30 | 7450 | 1300 |
| 30 | 160/6" | 159 | ||||||
| 40 | 200/8" | 212 | ||||||
| HL203500 | 2000 | 2220 | 20 | 160/6" | 125 | 6.25 | 8900 | 1550 |
| 30 | 200/8" | 187 | ||||||
| 40 | 200/8" | 250 | ||||||
| HL204000 | 2000 | 2220 | 20 | 160/6" | 144 | 7.21 | 10350 | 1800 |
| 30 | 200/8" | 216 | ||||||
| 40 | 250/10" | 288 | ||||||
| HL204500 | 2000 | 2220 | 20 | 200/8" | 163 | 8.16 | 11800 | 2080 |
| 30 | 200/8" | 245 | ||||||
| 40 | 250/10" | 326 | ||||||
| Diameter:1800mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL182500 | 1800 | 2050 | 20 | 160/6" | 75 | 3.74 | 4850 | 980 |
| 30 | 160/6" | 112 | ||||||
| 40 | 160/6" | 150 | ||||||
| HL183000 | 1800 | 2050 | 20 | 160/6" | 92 | 4.58 | 5930 | 1230 |
| 30 | 160/6" | 137 | ||||||
| 40 | 200/8" | 183 | ||||||
| HL183500 | 1800 | 2050 | 20 | 160/6" | 108 | 5.41 | 7000 | 1480 |
| 30 | 200/8" | 162 | ||||||
| 40 | 200/8" | 216 | ||||||
| HL184000 | 1800 | 2050 | 20 | 160/6" | 125 | 6.25 | 8080 | 1700 |
| 30 | 200/8" | 187 | ||||||
| 40 | 250/10" | 250 | ||||||
| Diameter:1600mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL161900 | 1600 | 1830 | 20 | 110/4" | 49 | 2.47 | 2800 | 600 |
| 30 | 160/6" | 74 | ||||||
| 40 | 160/6" | 99 | ||||||
| HL162500 | 1600 | 1830 | 20 | 110/4" | 67 | 3.36 | 3800 | 850 |
| 30 | 160/6" | 101 | ||||||
| 40 | 160/6" | 134 | ||||||
| HL163000 | 1600 | 1830 | 20 | 160/6" | 82 | 4.10 | 4700 | 1050 |
| 30 | 160/6" | 123 | ||||||
| 40 | 200/8" | 164 | ||||||
| Diameter:1400mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL141900 | 1400 | 1600 | 20 | 110/4" | 45 | 2.23 | 2000 | 580 |
| 30 | 110/4" | 67 | ||||||
| 40 | 160/6" | 89 | ||||||
| HL142500 | 1400 | 1600 | 20 | 110/4" | 60 | 3.02 | 2750 | 800 |
| 30 | 160/6" | 91 | ||||||
| 40 | 160/6" | 121 | ||||||
| HL143000 | 1400 | 1600 | 20 | 160/6" | 73 | 3.67 | 3375 | 1000 |
| 30 | 160/6" | 110 | ||||||
| 40 | 160/6" | 147 | ||||||
| Diameter:1200mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL121900 | 1200 | 1390 | 20 | 90/3" | 39 | 1.96 | 1100 | 430 |
| 30 | 110/4" | 59 | ||||||
| 40 | 160/6" | 79 | ||||||
| HL122300 | 1200 | 1390 | 20 | 110/4" | 48 | 2.42 | 1430 | 500 |
| 30 | 160/6" | 73 | ||||||
| 40 | 160/6" | 97 | ||||||
| HL122500 | 1200 | 1390 | 20 | 110/4" | 53 | 2.65 | 1750 | 700 |
| 30 | 160/6" | 79 | ||||||
| 40 | 160/6" | 106 | ||||||
| HL122700 | 1200 | 1390 | 20 | 110/4" | 57 | 2.87 | 2080 | 830 |
| 30 | 160/6" | 86 | ||||||
| 40 | 160/6" | 115 | ||||||
| HL123000 | 1200 | 1390 | 20 | 110/4" | 64 | 3.21 | 2330 | 925 |
| 30 | 160/6" | 96 | ||||||
| 40 | 160/6" | 129 | ||||||
Diameter:3000mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL305000 | 3000 | 3230 | 900 | 510 | 1500 | 160 | 2310 | 5000 | 5110 | 1000-1200 | 550 |
| HL306000 | 3000 | 3230 | 900 | 510 | 1500 | 160 | 2310 | 6000 | 6110 | 1000-1200 | 550 |
| HL307000 | 3000 | 3230 | 900 | 510 | 1500 | 160 | 2310 | 7000 | 7110 | 1000-1200 | 550 |
| HL308000 | 3000 | 3230 | 900 | 510 | 1500 | 160 | 2310 | 8000 | 8110 | 1000-1200 | 550 |
Diameter:2500mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL254000 | 2500 | 2710 | 1360 | 450 | 710 | 160 | 1900 | 4000 | 4380 | 1000-1200 | 550 |
| HL254500 | 2500 | 2710 | 1360 | 450 | 710 | 160 | 1900 | 4500 | 4940 | 1000-1200 | 550 |
| HL255000 | 2500 | 2710 | 1360 | 450 | 710 | 160 | 1900 | 5000 | 5440 | 1000-1200 | 550 |
| HL256000 | 2500 | 2710 | 625 | 450 | 1400 | 160 | 1900 | 6000 | 6110 | 1000-1200 | 550 |
| HL257000 | 2500 | 2710 | 625 | 450 | 1400 | 160 | 1900 | 7000 | 7110 | 1000-1200 | 550 |
Diameter:2350mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL234000 | 2350 | 2560 | 1270 | 300 | 710 | 160 | 1750 | 4000 | 4380 | 1000-1200 | 500 |
| HL534500 | 2350 | 2560 | 1270 | 300 | 710 | 160 | 1750 | 4500 | 4880 | 1000-1200 | 500 |
| HL235000 | 2350 | 2560 | 1270 | 300 | 710 | 160 | 1750 | 5000 | 5440 | 1000-1200 | 500 |
| HL236000 | 2350 | 2560 | 720 | 300 | 1350 | 160 | 1750 | 6000 | 6110 | 1000-1200 | 500 |
| HL237000 | 2350 | 2560 | 720 | 300 | 1350 | 160 | 1750 | 7000 | 7110 | 1000-1200 | 500 |
Diameter:2000mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL205000 | 2000 | 2220 | 1090 | 330 | 550 | 160 | 1490 | 2500 | 2730 | 1100 | 400 |
| HL203000 | 2000 | 2220 | 1090 | 330 | 550 | 160 | 1490 | 3000 | 3230 | 1100 | 400 |
| HL203500 | 2000 | 2220 | 1090 | 330 | 550 | 160 | 1490 | 3500 | 3730 | 1100 | 400 |
| HL20400 | 2000 | 2220 | 1090 | 330 | 550 | 160 | 1490 | 4000 | 4230 | 1100 | 400 |
| HL204500 | 2000 | 2220 | 1090 | 330 | 550 | 160 | 1490 | 4500 | 4730 | 1100 | 400 |
Diameter:1800mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL182500 | 1800 | 2050 | 1040 | 300 | 550 | 160 | 1400 | 2500 | 2700 | 1000 | 300 |
| HL183500 | 1800 | 2050 | 1040 | 300 | 550 | 160 | 1400 | 3000 | 3200 | 1000 | 300 |
| HL183500 | 1800 | 2050 | 1040 | 300 | 550 | 160 | 1400 | 3500 | 3700 | 1000 | 300 |
| HL184000 | 1800 | 2050 | 1040 | 300 | 550 | 160 | 1400 | 4000 | 4200 | 1000 | 300 |
Diameter:1600mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL161900 | 1600 | 1830 | 925 | 300 | 450 | 110 | 1230 | 1900 | 2100 | 950 | 250 |
| HL162500 | 1600 | 1830 | 925 | 300 | 450 | 110 | 1230 | 2500 | 2700 | 950 | 250 |
| HL163000 | 1600 | 1830 | 925 | 300 | 450 | 110 | 1230 | 3000 | 2300 | 950 | 250 |
Diameter:1400mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL141900 | 1400 | 1600 | 810 | 300 | 400 | 110 | 960 | 1900 | 2050 | 750 | 225 |
| HL142500 | 1400 | 1600 | 810 | 300 | 400 | 110 | 960 | 2500 | 2450 | 750 | 225 |
| HL146000 | 1400 | 1600 | 810 | 300 | 400 | 110 | 960 | 3000 | 3150 | 750 | 225 |
Diameter:1200mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL121900 | 1200 | 1390 | 725 | 250 | 340 | 80 | 900 | 1900 | 2050 | 550 | 225 |
| HL122300 | 1200 | 1390 | 725 | 250 | 340 | 80 | 900 | 2300 | 2450 | 550 | 225 |
| HL122500 | 1200 | 1390 | 725 | 250 | 340 | 80 | 900 | 2500 | 2650 | 550 | 225 |
| HL122700 | 1200 | 1390 | 725 | 250 | 340 | 80 | 900 | 2700 | 2850 | 550 | 225 |
| HL123000 | 1200 | 1390 | 725 | 250 | 340 | 80 | 900 | 3000 | 3150 | 550 | 225 |
Workshop:

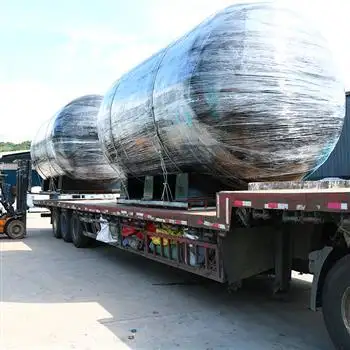

Transportation:
Best swimming pool equipment manufacturer - Poolkin will continue for innovative management and excellent quality. Imagination will subvert the future, intelligent manufacturing will lead the era, that's the motto of Poolking!
