Custom marine uv sterilizer manufacturers Manufacturer | Poolking
Poolking has developed to be a professional manufacturer and reliable supplier of high-quality products. Throughout the whole production process, we strictly implement the ISO quality management system control. Since established, we always adhere to independent innovation, scientific management, and continuous improvement, and provide high-quality services to meet and even exceed customers' requirements. We guarantee our new product marine uv sterilizer will bring you a lot of benefits. We are always standby to receive your inquiry. marine uv sterilizer We will do our best to serve customers throughout the whole process from product design, R&D, to delivery. Welcome to contact us for further information about our new product marine uv sterilizer or our company.The product has excellent heat dissipation effect. The surface area is maximized to contact with the cooling medium surrounding it, such as the air and the cooling liquid.

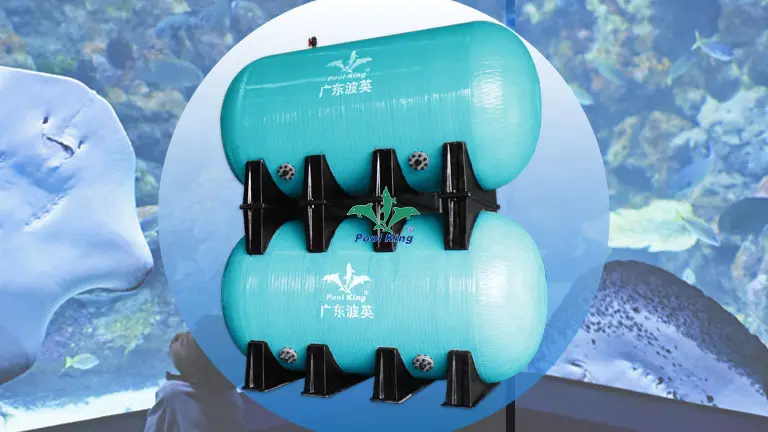

Model: HL
- It is made of multiple layers of anti-corrosion materials. The outer layer is made of CNC multi-axis fiberglass. The internal piping system is uniform and reasonable structure.
- Strong fiberglass base can suppor the big filter body. - 100% pressure testing before packing.
- Exclusive features for superior performance. - Offering attractive and reasonable performance
| Diameter:3000mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL305000 | 3000 | 3230 | 20 | 200/8" | 265 | 13.24 | 26300 | 6875 |
| 30 | 250/10" | 397 | ||||||
| 40 | 315/12" | 530 | ||||||
| HL306000 | 3000 | 3230 | 20 | 200/8" | 322 | 16.08 | 31920 | 8450 |
| 30 | 315/12" | 482 | ||||||
| 40 | 315/12" | 643 | ||||||
| HL307000 | 3000 | 3230 | 20 | 250/10" | 378 | 18.92 | 37545 | 10025 |
| 30 | 315/12" | 568 | ||||||
| 40 | 315/12" | 756 | ||||||
| HL308000 | 3000 | 3230 | 20 | 315/12" | 435 | 21.76 | 43170 | 11600 |
| 30 | 315/12" | 653 | ||||||
| 40 | 355/14" | 870 | ||||||
| Diameter:2500mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL254000 | 2500 | 2710 | 20 | 200/8" | 172 | 8.62 | 13500 | 3725 |
| 30 | 200/8" | 258 | ||||||
| 40 | 250/10" | 345 | ||||||
| HL254500 | 2500 | 2710 | 20 | 200/8" | 196 | 9.80 | 15350 | 4300 |
| 30 | 250/10" | 294 | ||||||
| 40 | 250/10" | 392 | ||||||
| HL254500 | 2500 | 2710 | 20 | 200/8" | 220 | 10.98 | 17200 | 4850 |
| 30 | 250/10" | 329 | ||||||
| 40 | 315/12" | 439 | ||||||
| HL256000 | 2500 | 2710 | 20 | 200/8" | 267 | 13.34 | 20900 | 5975 |
| 30 | 250/10" | 400 | ||||||
| 40 | 315/12" | 533 | ||||||
| HL257000 | 2500 | 2710 | 20 | 250/10" | 314 | 15.70 | 24600 | 7100 |
| 30 | 315/12" | 471 | ||||||
| 40 | 315/12" | 628 | ||||||
| Diameter:2350mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL234000 | 2350 | 2560 | 20 | 200/8" | 172 | 8.17 | 12800 | 3650 |
| 30 | 200/8" | 258 | ||||||
| 40 | 250/10" | 345 | ||||||
| HL234500 | 2350 | 2560 | 20 | 200/8" | 196 | 9.28 | 14525 | 4200 |
| 30 | 250/10" | 294 | ||||||
| 40 | 250/10" | 392 | ||||||
| HL235000 | 2350 | 2560 | 20 | 200/8" | 220 | 10.40 | 16250 | 4750 |
| 30 | 250/10" | 329 | ||||||
| 40 | 250/10" | 439 | ||||||
| HL236000 | 2350 | 2560 | 20 | 200/8" | 267 | 12.62 | 19700 | 5850 |
| 30 | 250/10" | 400 | ||||||
| 40 | 315/12" | 533 | ||||||
| HL237000 | 2350 | 2560 | 20 | 250/10" | 314 | 14.86 | 23150 | 6950 |
| 30 | 315/12" | 471 | ||||||
| 40 | 315/12" | 628 | ||||||
| Diameter:2000mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL202500 | 2000 | 2220 | 20 | 160/6" | 87 | 4.34 | 6000 | 1050 |
| 30 | 160/6" | 130 | ||||||
| 40 | 200/8" | 174 | ||||||
| HL203000 | 2000 | 2220 | 20 | 160/6" | 106 | 5.30 | 7450 | 1300 |
| 30 | 160/6" | 159 | ||||||
| 40 | 200/8" | 212 | ||||||
| HL203500 | 2000 | 2220 | 20 | 160/6" | 125 | 6.25 | 8900 | 1550 |
| 30 | 200/8" | 187 | ||||||
| 40 | 200/8" | 250 | ||||||
| HL204000 | 2000 | 2220 | 20 | 160/6" | 144 | 7.21 | 10350 | 1800 |
| 30 | 200/8" | 216 | ||||||
| 40 | 250/10" | 288 | ||||||
| HL204500 | 2000 | 2220 | 20 | 200/8" | 163 | 8.16 | 11800 | 2080 |
| 30 | 200/8" | 245 | ||||||
| 40 | 250/10" | 326 | ||||||
| Diameter:1800mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL182500 | 1800 | 2050 | 20 | 160/6" | 75 | 3.74 | 4850 | 980 |
| 30 | 160/6" | 112 | ||||||
| 40 | 160/6" | 150 | ||||||
| HL183000 | 1800 | 2050 | 20 | 160/6" | 92 | 4.58 | 5930 | 1230 |
| 30 | 160/6" | 137 | ||||||
| 40 | 200/8" | 183 | ||||||
| HL183500 | 1800 | 2050 | 20 | 160/6" | 108 | 5.41 | 7000 | 1480 |
| 30 | 200/8" | 162 | ||||||
| 40 | 200/8" | 216 | ||||||
| HL184000 | 1800 | 2050 | 20 | 160/6" | 125 | 6.25 | 8080 | 1700 |
| 30 | 200/8" | 187 | ||||||
| 40 | 250/10" | 250 | ||||||
| Diameter:1600mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL161900 | 1600 | 1830 | 20 | 110/4" | 49 | 2.47 | 2800 | 600 |
| 30 | 160/6" | 74 | ||||||
| 40 | 160/6" | 99 | ||||||
| HL162500 | 1600 | 1830 | 20 | 110/4" | 67 | 3.36 | 3800 | 850 |
| 30 | 160/6" | 101 | ||||||
| 40 | 160/6" | 134 | ||||||
| HL163000 | 1600 | 1830 | 20 | 160/6" | 82 | 4.10 | 4700 | 1050 |
| 30 | 160/6" | 123 | ||||||
| 40 | 200/8" | 164 | ||||||
| Diameter:1400mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL141900 | 1400 | 1600 | 20 | 110/4" | 45 | 2.23 | 2000 | 580 |
| 30 | 110/4" | 67 | ||||||
| 40 | 160/6" | 89 | ||||||
| HL142500 | 1400 | 1600 | 20 | 110/4" | 60 | 3.02 | 2750 | 800 |
| 30 | 160/6" | 91 | ||||||
| 40 | 160/6" | 121 | ||||||
| HL143000 | 1400 | 1600 | 20 | 160/6" | 73 | 3.67 | 3375 | 1000 |
| 30 | 160/6" | 110 | ||||||
| 40 | 160/6" | 147 | ||||||
| Diameter:1200mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL121900 | 1200 | 1390 | 20 | 90/3" | 39 | 1.96 | 1100 | 430 |
| 30 | 110/4" | 59 | ||||||
| 40 | 160/6" | 79 | ||||||
| HL122300 | 1200 | 1390 | 20 | 110/4" | 48 | 2.42 | 1430 | 500 |
| 30 | 160/6" | 73 | ||||||
| 40 | 160/6" | 97 | ||||||
| HL122500 | 1200 | 1390 | 20 | 110/4" | 53 | 2.65 | 1750 | 700 |
| 30 | 160/6" | 79 | ||||||
| 40 | 160/6" | 106 | ||||||
| HL122700 | 1200 | 1390 | 20 | 110/4" | 57 | 2.87 | 2080 | 830 |
| 30 | 160/6" | 86 | ||||||
| 40 | 160/6" | 115 | ||||||
| HL123000 | 1200 | 1390 | 20 | 110/4" | 64 | 3.21 | 2330 | 925 |
| 30 | 160/6" | 96 | ||||||
| 40 | 160/6" | 129 | ||||||
Diameter:3000mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL305000 | 3000 | 3230 | 900 | 510 | 1500 | 160 | 2310 | 5000 | 5110 | 1000-1200 | 550 |
| HL306000 | 3000 | 3230 | 900 | 510 | 1500 | 160 | 2310 | 6000 | 6110 | 1000-1200 | 550 |
| HL307000 | 3000 | 3230 | 900 | 510 | 1500 | 160 | 2310 | 7000 | 7110 | 1000-1200 | 550 |
| HL308000 | 3000 | 3230 | 900 | 510 | 1500 | 160 | 2310 | 8000 | 8110 | 1000-1200 | 550 |
Diameter:2500mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL254000 | 2500 | 2710 | 1360 | 450 | 710 | 160 | 1900 | 4000 | 4380 | 1000-1200 | 550 |
| HL254500 | 2500 | 2710 | 1360 | 450 | 710 | 160 | 1900 | 4500 | 4940 | 1000-1200 | 550 |
| HL255000 | 2500 | 2710 | 1360 | 450 | 710 | 160 | 1900 | 5000 | 5440 | 1000-1200 | 550 |
| HL256000 | 2500 | 2710 | 625 | 450 | 1400 | 160 | 1900 | 6000 | 6110 | 1000-1200 | 550 |
| HL257000 | 2500 | 2710 | 625 | 450 | 1400 | 160 | 1900 | 7000 | 7110 | 1000-1200 | 550 |
Diameter:2350mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL234000 | 2350 | 2560 | 1270 | 300 | 710 | 160 | 1750 | 4000 | 4380 | 1000-1200 | 500 |
| HL534500 | 2350 | 2560 | 1270 | 300 | 710 | 160 | 1750 | 4500 | 4880 | 1000-1200 | 500 |
| HL235000 | 2350 | 2560 | 1270 | 300 | 710 | 160 | 1750 | 5000 | 5440 | 1000-1200 | 500 |
| HL236000 | 2350 | 2560 | 720 | 300 | 1350 | 160 | 1750 | 6000 | 6110 | 1000-1200 | 500 |
| HL237000 | 2350 | 2560 | 720 | 300 | 1350 | 160 | 1750 | 7000 | 7110 | 1000-1200 | 500 |
Diameter:2000mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL205000 | 2000 | 2220 | 1090 | 330 | 550 | 160 | 1490 | 2500 | 2730 | 1100 | 400 |
| HL203000 | 2000 | 2220 | 1090 | 330 | 550 | 160 | 1490 | 3000 | 3230 | 1100 | 400 |
| HL203500 | 2000 | 2220 | 1090 | 330 | 550 | 160 | 1490 | 3500 | 3730 | 1100 | 400 |
| HL20400 | 2000 | 2220 | 1090 | 330 | 550 | 160 | 1490 | 4000 | 4230 | 1100 | 400 |
| HL204500 | 2000 | 2220 | 1090 | 330 | 550 | 160 | 1490 | 4500 | 4730 | 1100 | 400 |
Diameter:1800mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL182500 | 1800 | 2050 | 1040 | 300 | 550 | 160 | 1400 | 2500 | 2700 | 1000 | 300 |
| HL183500 | 1800 | 2050 | 1040 | 300 | 550 | 160 | 1400 | 3000 | 3200 | 1000 | 300 |
| HL183500 | 1800 | 2050 | 1040 | 300 | 550 | 160 | 1400 | 3500 | 3700 | 1000 | 300 |
| HL184000 | 1800 | 2050 | 1040 | 300 | 550 | 160 | 1400 | 4000 | 4200 | 1000 | 300 |
Diameter:1600mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL161900 | 1600 | 1830 | 925 | 300 | 450 | 110 | 1230 | 1900 | 2100 | 950 | 250 |
| HL162500 | 1600 | 1830 | 925 | 300 | 450 | 110 | 1230 | 2500 | 2700 | 950 | 250 |
| HL163000 | 1600 | 1830 | 925 | 300 | 450 | 110 | 1230 | 3000 | 2300 | 950 | 250 |
Diameter:1400mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL141900 | 1400 | 1600 | 810 | 300 | 400 | 110 | 960 | 1900 | 2050 | 750 | 225 |
| HL142500 | 1400 | 1600 | 810 | 300 | 400 | 110 | 960 | 2500 | 2450 | 750 | 225 |
| HL146000 | 1400 | 1600 | 810 | 300 | 400 | 110 | 960 | 3000 | 3150 | 750 | 225 |
Diameter:1200mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL121900 | 1200 | 1390 | 725 | 250 | 340 | 80 | 900 | 1900 | 2050 | 550 | 225 |
| HL122300 | 1200 | 1390 | 725 | 250 | 340 | 80 | 900 | 2300 | 2450 | 550 | 225 |
| HL122500 | 1200 | 1390 | 725 | 250 | 340 | 80 | 900 | 2500 | 2650 | 550 | 225 |
| HL122700 | 1200 | 1390 | 725 | 250 | 340 | 80 | 900 | 2700 | 2850 | 550 | 225 |
| HL123000 | 1200 | 1390 | 725 | 250 | 340 | 80 | 900 | 3000 | 3150 | 550 | 225 |
Workshop:
Transportation:
Best swimming pool equipment manufacturer - Poolkin will continue for innovative management and excellent quality. Imagination will subvert the future, intelligent manufacturing will lead the era, that's the motto of Poolking!
