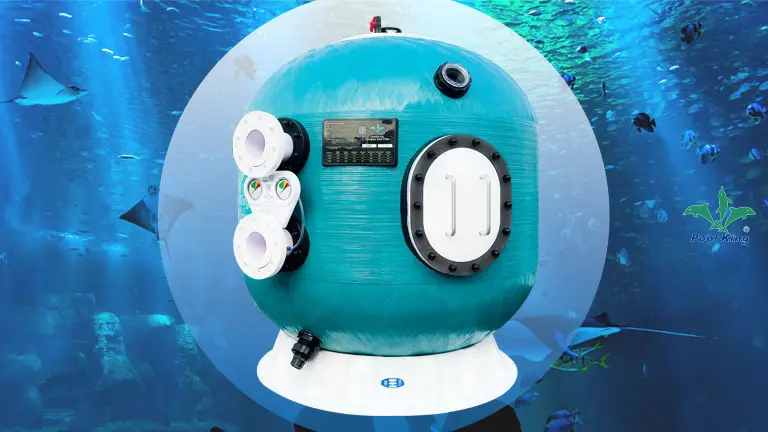

Custom glass fiber filter supply Manufacturer | Poolking
Set up years ago, Poolking is a professional manufacturer and also a supplier with strong capabilities in production, design, and R&D. glass fiber filter Having devoted a lot to product development and service quality improvement, we have established a high reputation in the markets. We promise to provide every customer throughout the world with prompt and professional service covering the pre-sales, sales, and after-sales services. No matter where you are or what business you are engaged in, we'd love to help you deal with any issue. If you want to know more details about our new product glass fiber filter or our company, feel free to contact us.The product is lightweight, which makes it easy for installation in the device. And it helps save transportation cost as well.
Model: K
- Lateral and nozzle plate are available in option.
- Sight glass and Manhole are available in option.
- Lateral configuration enhances filtration performance.
- Fiberglass filter body is UV and corrosion resistant.
- Air Release Valve and air tube enable easy release of air during operation and testing.
- Nozzle plate system ensures the same flow for filtration and backwash ,ensuring the media bed to reach maximum performance and save up to 25% water during backwash.
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| K1200 | 1200 | 1420 | 30 | 90/3" | 34 | 1.13 | 750 | 300 |
| 40 | 90/3" | 45 | ||||||
| 50 | 110/4" | 57 | ||||||
| K1400 | 1400 | 1670 | 30 | 90/3" | 46 | 1.54 | 1200 | 500 |
| 40 | 110/4" | 61 | ||||||
| 50 | 110/4" | 77 | ||||||
| K1600 | 1600 | 1750 | 30 | 110/4" | 60 | 2.01 | 1850 | 30750 |
| 40 | 160/6" | 80 | ||||||
| 50 | 160/6" | 101 | ||||||
| K1800 | 1800 | 1950 | 30 | 110/4" | 76 | 2.54 | 2500 | 1050 |
| 40 | 160/6" | 101 | ||||||
| 50 | 160/6" | 127 | ||||||
| K2000 | 2000 | 2130 | 30 | 160/6" | 94 | 3.14 | 3300 | 1150 |
| 40 | 160/6" | 125 | ||||||
| 50 | 160/6" | 157 | ||||||
| K2200 | 2200 | 2350 | 30 | 160/6" | 114 | 3.80 | 4150 | 4170 |
| 40 | 160/6" | 152 | ||||||
| 50 | 200/8" | 190 | ||||||
| K2300 | 2300 | 2350 | 30 | 160/6" | 125 | 4.15 | 4900 | 1600 |
| 40 | 200/8" | 166 | ||||||
| 50 | 200/8" | 208 | ||||||
| K2350 | 2350 | 2350 | 30 | 160/6" | 130 | 4.34 | 5000 | 1800 |
| 40 | 200/8" | 175 | ||||||
| 50 | 200/8" | 217 | ||||||
| K2500 | 2500 | 2450 | 30 | 160/6" | 147 | 4.90 | 6000 | 2200 |
| 40 | 200/8" | 196 | ||||||
| 50 | 200/8" | 245 | ||||||
| K3000 | 3000 | 2650 | 30 | 200/8" | 212 | 7.07 | 8600 | 3300 |
| 40 | 200/8" | 282 | ||||||
| 50 | 250/10" | 354 |
Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| K1400N | 1420 | 1900 | 30 | 90/3" | 46 | 1.54 | 1800 | 220 |
| 40 | 110/4" | 61 | ||||||
| 50 | 110/4" | 77 | ||||||
| K1600N | 1620 | 2000 | 30 | 110/4" | 60 | 2.01 | 2300 | 300 |
| 40 | 160/6" | 80 | ||||||
| 50 | 160/6" | 101 | ||||||
| K1800N | 1830 | 2100 | 30 | 110/4" | 76 | 2.54 | 2900 | 360 |
| 40 | 160/6" | 101 | ||||||
| 50 | 160/6" | 127 | ||||||
| K2000N | 2030 | 2200 | 30 | 160/6" | 94 | 3.14 | 3600 | 440 |
| 40 | 160/6" | 125 | ||||||
| 50 | 160/6" | 157 | ||||||
| K2300N | 2300 | 2350 | 30 | 160/6" | 125 | 4.15 | 4800 | 580 |
| 40 | 200/8" | 166 | ||||||
| 50 | 200/8" | 205 | ||||||
| K2500N | 2500 | 2450 | 30 | 160/6" | 147 | 4.90 | 5700 | 680 |
| 40 | 200/8" | 196 | ||||||
| 50 | 200/8" | 245 | ||||||
| K3000 | 3000 | 2650 | 30 | 200/8" | 212 | 7.07 | 8250 | 980 |
| 40 | 200/8" | 282 | ||||||
| 50 | 250/10" | 354 |
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | E（mm） | F（mm） | K（mm） | M（mm） | N（mm） | ΦP（mm） | T（mm） | W（mm） |
| K1200 | 1200 | 1422 | 560 | 180 | 340 | 60 | 740 | 180*180 | 1150 | 80 | 1010 | 600 | 300 |
| K1400 | 1400 | 1670 | 650 | 190 | 350 | 60 | 800 | 300*400 | 1250 | 80 | 1240 | 700 | 300 |
| K1600 | 1600 | 1750 | 680 | 215 | 450 | 60 | 870 | 300*400 | 1450 | 80 | 1450 | 800 | 320 |
| K1800 | 1800 | 1950 | 730 | 215 | 550 | 60 | 91 | 300*400 | 1650 | 80 | 1610 | 850 | 320 |
| K2000 | 2000 | 2130 | 800 | 240 | 550 | 60 | 1050 | 300*400 | 1700 | 80 | 1800 | 900 | 350 |
| K2200 | 2200 | 2350 | 900 | 240 | 600 | 60 | 1070 | 300*400 | 1750 | 80 | 1800 | 1000 | 400 |
| K2300 | 2300 | 2350 | 940 | 240 | 600 | 60 | 1070 | 300*400 | 1800 | 80 | 2010 | 1000 | 400 |
| K2350 | 2350 | 2350 | 940 | 240 | 600 | 60 | 1070 | 300*400 | 1800 | 80 | 2010 | 1000 | 400 |
| K2500 | 2500 | 2450 | 960 | 240 | 600 | 60 | 1100 | 300*400 | 1900 | 80 | 2010 | 1050 | 400 |
| K3000 | 3000 | 2650 | 1020 | 350 | 600 | 60 | 1130 | 300*400 | 2150 | 80 | 2650 | 1100 | 450 |
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | E（mm） | F（mm） | K（mm） | M（mm） | N（mm） | ΦP（mm） | T（mm） | W（mm） |
| K1400N | 1420 | 1900 | 700 | 190 | 550 | 40 | 800 | 300*400 | 1400 | 80 | 1240 | 1000 | 300 |
| K1600N | 1620 | 2000 | 810 | 215 | 550 | 40 | 870 | 300*400 | 1500 | 80 | 1450 | 1000 | 320 |
| K1800N | 1830 | 2100 | 850 | 215 | 550 | 40 | 980 | 300*400 | 1600 | 80 | 1610 | 1000 | 320 |
| K2000N | 2030 | 2200 | 900 | 240 | 550 | 40 | 1030 | 300*400 | 1650 | 80 | 1800 | 1000 | 350 |
| K2300N | 2300 | 2350 | 940 | 240 | 600 | 40 | 1070 | 300*400 | 1800 | 80 | 2010 | 1000 | 400 |
| K2500N | 2500 | 2400 | 960 | 240 | 600 | 40 | 1100 | 300*400 | 1900 | 80 | 2010 | 1000 | 400 |
| K3000N | 3000 | 2650 | 1020 | 350 | 600 | 40 | 1130 | 300*400 | 2150 | 80 | 2650 | 1000 | 400 |
