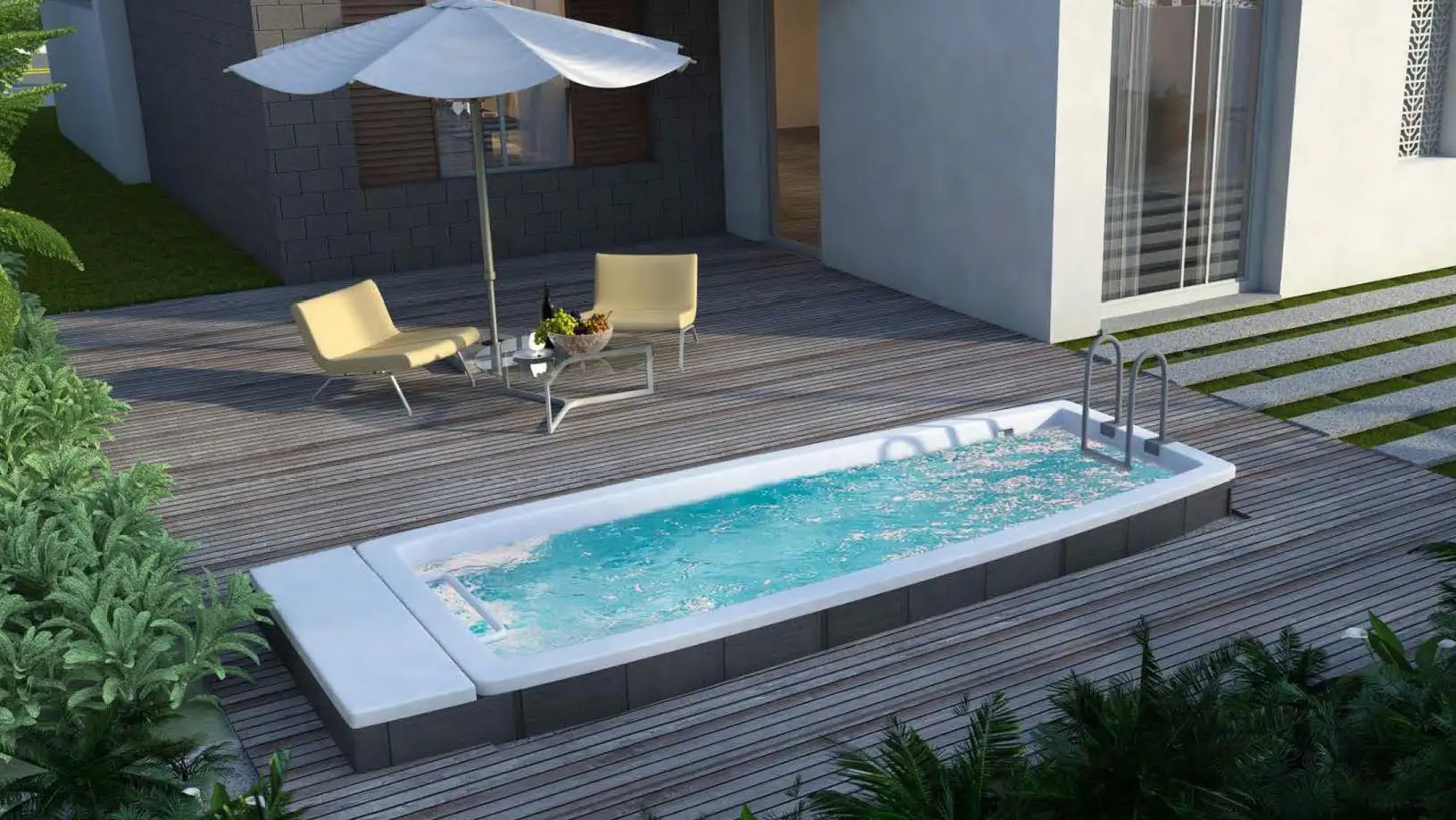

Simplicity Type Endless Swimming Pool with Stainless Steel Ladder
Endless pool is a multifunctional product which contains complete pool body, water circulation system, filtration system, disinfection system, heating and water flow control system. The pool can be installed a ladder for convenient use, and can be displayed above ground or in ground in your garden. The project cost is far less than the normal villa pool.
Installing a endless pool, you don’t have trouble to build a concrete swimming pool in a big land. And it is easy to move to a new location when you want to change a new place.
Propulsion system: Paddle wheel
Water Flow: Max: 16667L/min
Swimming distance: 5-8m
Energy consumption (per hour): 830-2800w.

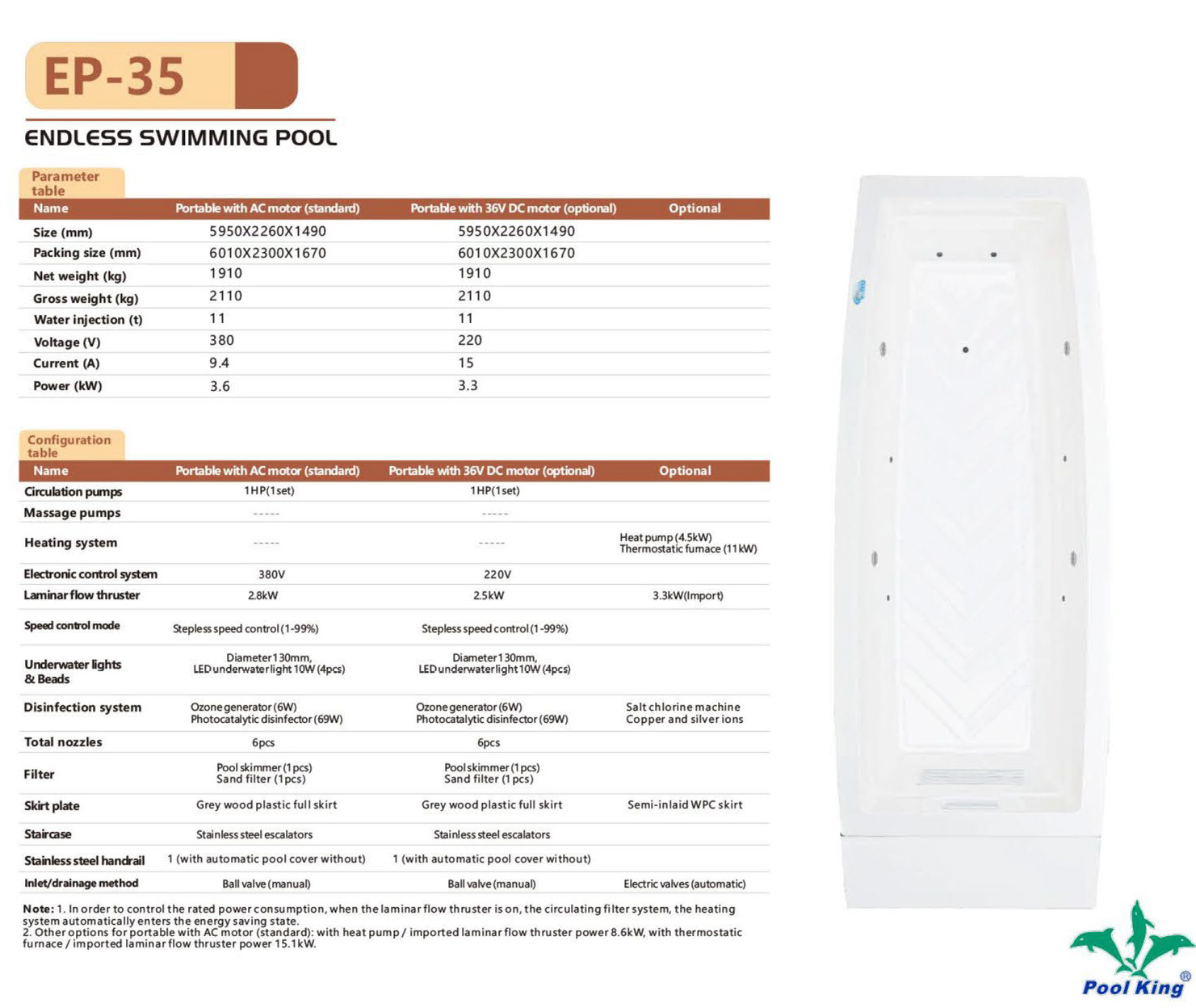

Parametertable
| Name | Portable with AC motor (standard) | Portable with 36V DC motor (optional) | Optional |
| Size (mm) | 5950X2260X1490 | 5950X2260X1490 | |
| Packing size (mm) | 6010X2300X1670 | 6010X2300X1670 | |
| Net weight (kg) | 1910 | 1910 | |
| Gross weight (kg) | 2110 | 2110 | |
| Water injection (t) | 11 | 11 | |
| Voltage(V) | 380 | 220 | |
CurrentA) | 9.4 | 1 5 | |
| Power(kW) | 3 . 6 | 3 . 3 | |
| Configurationtable | |||
| Circulation pumps | 1HP(1 set) | 1HP(1set) | |
| Massage pumps | |||
| Heating system | Heatpump(4.5kW)Thermostatic furnace(11kW) | ||
| Electronic control system | 380V | 220V | |
| Laminar flow thruster | 2.8kW | 2.5kW | 3.3kW(Import) |
| Speed control mode | Stepless speed control(1-99%) | Stepless speed control(1-99%) | |
| Underwater lights& Beads | Diameter130mm, LEDunderwaterlight10W(4pcs) | Diameter130mm, LEDunderwaterlight10W(4pcs) | |
| Disinfection/sterilization system | Ozone generator(6W) Photocatalytic disinfector(69W) | Ozone generator(6W)Photocatalytic disinfector (69W) | Salt chlorine machineCopper and silver ions |
| Total nozzles | 6pcs | 6pcs | |
| Filter | Pool skimmer(1pcs) Sand filter (1pcs) | Pool skimmer(1pcs) Sand filter (1pcs) | |
| Skirt plate | Grey wood plastic full skirt | Grey wood plastic full skirt | Semi-inlaid WPC skirt |
| Stainless steel handrail | 1(with automatic pool cover without) | 1(with automatic pool cover without) | |
| lnlet/drainage method | Ballvalve(manual) | Ballvalve(manual) | Electric valve(automatic) |
Note: 1.in oroer to contro the rated power consumotion. when the aminar fow thruster is on. the circu ating titer svstem. the neatinosystem automatically enters the energy saving state.2. 0ther options for portable with AC motor (standard): with heat pump /imported laminar flow thruster power 8.6kW, with thermostaticfurnace /imported laminar flow thruster power 15.1kW. | |||
