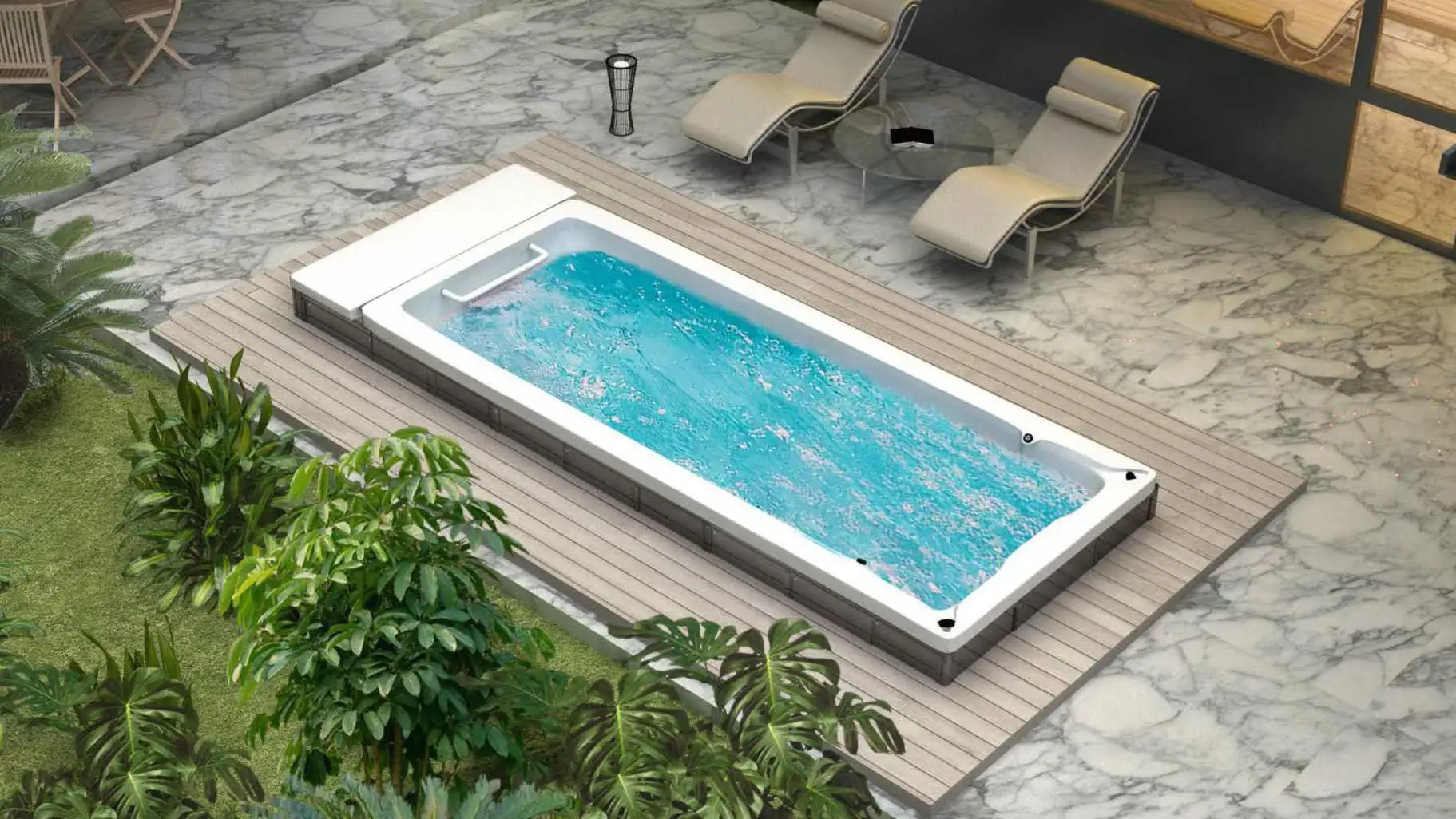

Functional Type Endless Swimming Pool with Roller Cover
Endless swimming pool collects the function of seasonal heating and hydrotherapy spa together, it makes your exercise free from the limitation of swimming space, let alone the effects of the change of the climate. When the water is heated to 34-40 degrees, endless swimming pool can be used as the hydrotherapy spa. You can take advantage of the water temperature and buoyancy, combining with the exercise to achieve the fitness, leisure and the relaxation of body.
Installing the system should be professional and qualified electrician to connect this product.
It should ensure that the wiring is firm and reliable. All wiring work should comply
with relevant electrical regulations.
Propulsion system: Paddle wheel
Water Flow: Max: 16667L/min
Swimming distance: 5-8m
Energy consumption (per hour): 830-2800w.

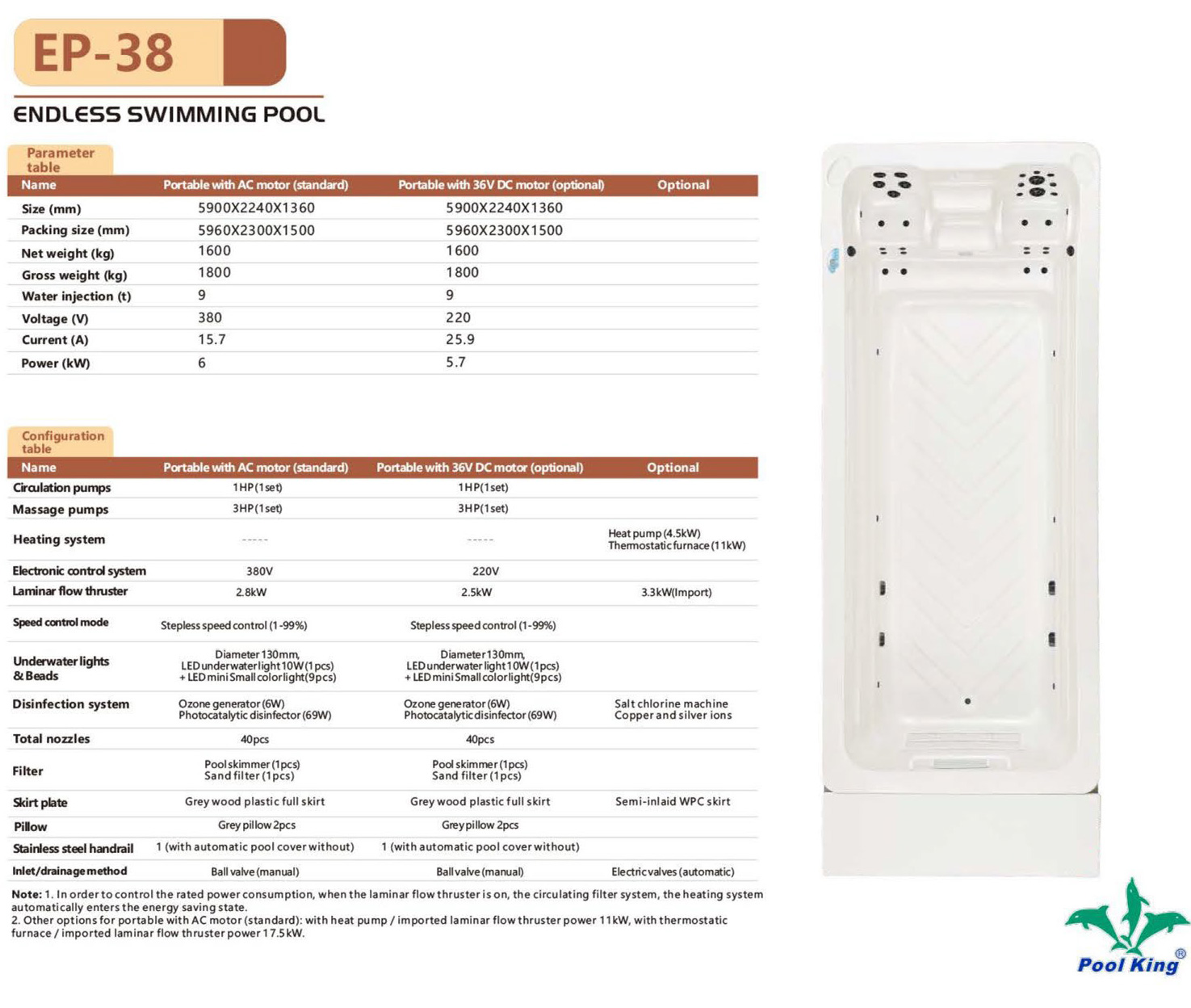

Parametertable
| Name | Portable with AC motor (standard) | Portable with 36V DC motor (optional) | Optional |
| Size (mm) | 5900X2240X1360 | 5900X2240X1360 | |
| Packing size (mm) | 5960X2300X1500 | 5960X2300X1500 | |
| Net weight (kg) | 1600 | 1600 | |
| Gross weight (kg) | 1800 | 1800 | |
| Water injection (t) | 9 | 9 | |
| Voltage(V) | 380 | 220 | |
CurrentA) | 15.7 | 25.9 | |
| Power(kW) | 6 | 5.7 | |
| Configurationtable | |||
| Circulation pumps | 1HP(1 set) | 1HP(1set) | |
| Massage pumps | 3HP(1set) | 3HP(1set) | |
| Heating system | Heatpump(4.5kW)Thermostatic furnace(11kW) | ||
| Electronic control system | 380V | 220V | |
| Laminar flow thruster | 2.8kW | 2.5kW | 3.3kW(Import) |
| Speed control mode | Stepless speed control(1-99%) | Stepless speed control(1-99%) | |
| Underwater lights& Beads | Diameter130mm, LEDunderwaterlight10W(1pcs) +LEDminiSmallcolorlight(9pcs) | Diameter130mm, LEDunderwaterlight10W(1pcs) +LEDminiSmallcolorlight(9pcs) | |
| Disinfection/sterilization system | Ozone generator(6W) Photocatalytic disinfector(69W) | Ozone generator(6W) Photocatalytic disinfector(69W) | Salt chlorine machineCopper and silver ions |
| Total nozzles | 40pcs | 40pcs | |
| Filter | Pool skimmer(1pcs) Sand filter (1pcs) | Pool skimmer(1pcs) Sand filter (1pcs) | |
| Skirt plate | Grey wood plastic full skirt | Grey wood plastic full skirt | Semi-inlaid WPC skirt |
| Pillow | Grey pillow 2pcs | Grey pillow 2pcs | |
| Stainless steel handrail | 1(with automatic pool cover without) | 1(with automatic pool cover without) | |
| lnlet/drainage method | Ballvalve(manual) | Ballvalve(manual) | Electric valve(automatic) |
Note: 1. In order to control the rated power consumption, when the laminar flow thruster is on, the circulating filter system, the heating system automatically enters the energy saving state. 2. Other options for portable with AC motor (standard): with heat pump / imported laminar flow thruster power 11kW, with thermostatic furnace / imported laminar flow thruster power 17.5kW. | |||
If you have any inquiry about our products, feel free to contact us that we are 24 hours on line.We've got preferential price and best-quality products for you.
Best swimming pool equipment manufacturer - Poolkin will continue for innovative management and excellent quality. Imagination will subvert the future, intelligent manufacturing will lead the era, that's the motto of Poolking!
