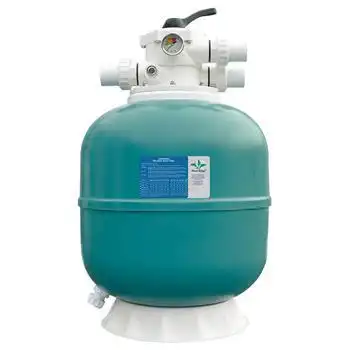

Laminated bolt type topmount sand filter,Diameter 40mm~900mm,flow rate 6 ~32m3/h, MOQ:20 units
Feature:
- 1. Made of fiberglass reinforced laminated polyester.
- 2. Smooth and high brightness appearance.
- 3. 6way multiport valve.
- 4. Sight glass for inspection of filtered water.
- 5. Easy maintenace, easy to clean.
Specifications:
- 1. Maximum working pressure: 250kPa/36psi/2.5bar
- 2. Factory Testing Pressure: 400kPa/58psi/4.0bar
- 3. Maximum Water Temperature: 500 C
- 4. Size of Gravel: 1mm-2mm
- 5. Size of Silica Sand: 0.5~0.8mm
Application:
- *swimming pool and spa
- *aguiculture
- *industrial water treatment.
| Model | Filter Diameter（mm） | Filter Height（mm） | Design Flow （m³/h） | Filter Area （m²） | Connections（inch/mm） | Sand Weight（kg） |
| LP400 | 400 | 750 | 6 | 0.13 | 1.5"/50 | 30 |
| LP450 | 450 | 815 | 8 | 0.16 | 1.5"/50 | 45 |
| LP500 | 500 | 860 | 10 | 0.20 | 1.5"/50 | 80 |
| LP650 | 635 | 875 | 15 | 0.32 | 1.5"/50 | 130 |
| LP700 | 700 | 1000 | 19 | 0.38 | 1.5"/50 | 190 |
| LP800 | 800 | 1145 | 25 | 0.50 | 2"/63 | 300 |
| LP900 | 900 | 1270 | 32 | 0.64 | 2"/63 | 450 |
| Model | LP400 | LP450 | LP500 | LP650 | LP700 | LP800 | LP900 |
| φD(mm) | 400 | 450 | 500 | 635 | 700 | 800 | 900 |
|
H（mm） |
750 | 815 | 860 | 875 | 980 | 1145 | 1275 |
| A（mm） | 500 | 565 | 610 | 625 | 725 | 845 | 970 |
| B（mm） | 73 | 75 | 75 | 95 | 95 | 150 | 150 |
| M（mm） | 609 | 676 | 719 | 734 | 834 | 988 | 1113 |
| N（mm） | 550 | 615 | 660 | 675 | 775 | 908 | 1033 |
| φP(mm) | 390 | 390 | 390 | 565 | 565 | 790 | 790 |
| T（mm） | 160 | 230 | 260 | 300 | 400 | 500 | 550 |
| Model | Filter Diameter（mm） | Filter Height（mm） | Design Flow（m³/h） | Filter Area（m²） | Connections（inch/mm） | Sand Weight （kg） |
| LS450 | 450 | 660 | 8 | 0.16 | 1.5"/50 | 45 |
| LS500 | 500 | 745 | 10 | 0.20 | 1.5"/50 | 80 |
| LS650 | 635 | 805 | 15 | 0.32 | 1.5"/50 | 130 |
| LS700 | 700 | 885 | 19 | 0.38 | 1.5"/50 | 190 |
| LS750 | 750 | 1000 | 22 | 0.44 | 2"/63 | 230 |
| LS800 | 800 | 1000 | 25 | 0.50 | 2"/63 | 260 |
| LS900 | 900 | 1115 | 32 | 0.64 | 2"/63 | 400 |
| Model | LS450 | LS500 | LS650 | LS700 | LS750 | LS800 | LS900 |
| φD(mm) | 450 | 500 | 635 | 700 | 750 | 900 | 900 |
|
H（mm） |
660 | 745 | 805 | 885 | 1000 | 1000 | 1115 |
| A（mm） | 260 | 280 | 310 | 360 | 385 | 385 | 430 |
| B（mm） | 75 | 75 | 95 | 95 | 150 | 150 | 150 |
| C（mm） | 125 | 125 | 125 | 125 | 220 | 220 | 220 |
| M（mm） | 444 | 464 | 494 | 544 | 680 | 680 | 725 |
| φP(mm) | 390 | 390 | 565 | 565 | 790 | 790 | 790 |
| T（mm） | 250 | 280 | 300 | 350 | 400 | 420 | 480 |
