Product Details
Relying on advanced technology, excellent production capabilities, and perfect service, Poolking takes the lead in the industry now and spreads our Poolking all over the world. Together with our products, our services are also supplied to be the highest-level. aquarium device We have professional employees who have years of experience in the industry. It is them that provides high-quality services for customers all over the world. If you have any questions about our new product aquarium device or want to know more about our company, feel free to contact us. Our professionals would love to help you at any time.The product helps extend the life expectancy of the device, reducing the risk of device aging caused by high operating temperature.
Advantages
Poolking has over 60000 square meter factory base. It is the only one largest factory to produce fiberglass filtration equipment in China .We serve our customers with the tenet of "quality first, unity and pragmatism, innovation and high efficiency". product.
POOLKING owns modern automatic production facility to produce over 3000 units sand filter per month
Poolking utilizes automatic robot spray machines, digital control winding system, cutting machines, plastic blow molding and plastic injection machines guarantee high efficient and unique products.
FAQ
How often should I clean my pool?
Some swimming pools have areas with little or no circulation. This is where algae and bacteria can begin to grow. At least once a week, the walls and floor should be brushed and vacuumed to remove debris that the filter misses. Brushing is a must, even if you use an automatic pool cleaner or retain a weekly service.
What is the warranty for the products?
Filters are two years, the other products are one year.
When do I need to replace the sand?
On average, sand should be replaced every 3-5 years. This may be longer if the pool stays clear, or shorter, if the filter runs all the time. The jagged edges of the sand wear down and become smooth as the sand ages. When this happens the sand can no longer trap debris particles and dirt can pass through the sand and back into the pool.

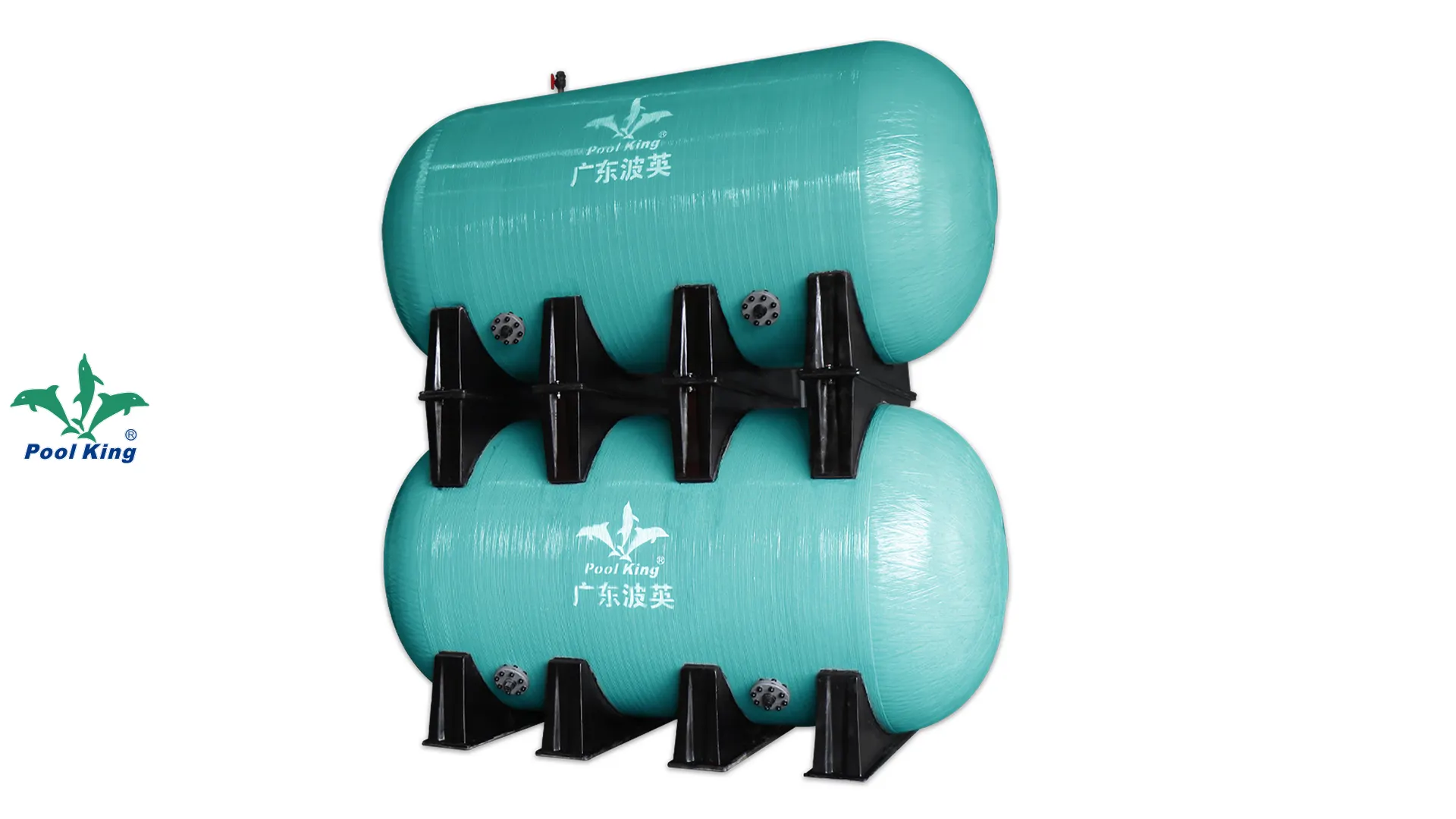

Product Image
Model: HL
- It is made of multiple layers of anti-corrosion materials. The outer layer is made of CNC multi-axis fiberglass. The internal piping system is uniform and reasonable structure.
- Strong fiberglass base can suppor the big filter body. - 100% pressure testing before packing.
- Exclusive features for superior performance. - Offering attractive and reasonable performance
| Diameter:3000mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL305000 | 3000 | 3230 | 20 | 200/8" | 265 | 13.24 | 26300 | 6875 |
| 30 | 250/10" | 397 | ||||||
| 40 | 315/12" | 530 | ||||||
| HL306000 | 3000 | 3230 | 20 | 200/8" | 322 | 16.08 | 31920 | 8450 |
| 30 | 315/12" | 482 | ||||||
| 40 | 315/12" | 643 | ||||||
| HL307000 | 3000 | 3230 | 20 | 250/10" | 378 | 18.92 | 37545 | 10025 |
| 30 | 315/12" | 568 | ||||||
| 40 | 315/12" | 756 | ||||||
| HL308000 | 3000 | 3230 | 20 | 315/12" | 435 | 21.76 | 43170 | 11600 |
| 30 | 315/12" | 653 | ||||||
| 40 | 355/14" | 870 | ||||||
| Diameter:2500mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL254000 | 2500 | 2710 | 20 | 200/8" | 172 | 8.62 | 13500 | 3725 |
| 30 | 200/8" | 258 | ||||||
| 40 | 250/10" | 345 | ||||||
| HL254500 | 2500 | 2710 | 20 | 200/8" | 196 | 9.80 | 15350 | 4300 |
| 30 | 250/10" | 294 | ||||||
| 40 | 250/10" | 392 | ||||||
| HL254500 | 2500 | 2710 | 20 | 200/8" | 220 | 10.98 | 17200 | 4850 |
| 30 | 250/10" | 329 | ||||||
| 40 | 315/12" | 439 | ||||||
| HL256000 | 2500 | 2710 | 20 | 200/8" | 267 | 13.34 | 20900 | 5975 |
| 30 | 250/10" | 400 | ||||||
| 40 | 315/12" | 533 | ||||||
| HL257000 | 2500 | 2710 | 20 | 250/10" | 314 | 15.70 | 24600 | 7100 |
| 30 | 315/12" | 471 | ||||||
| 40 | 315/12" | 628 | ||||||
| Diameter:2350mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL234000 | 2350 | 2560 | 20 | 200/8" | 172 | 8.17 | 12800 | 3650 |
| 30 | 200/8" | 258 | ||||||
| 40 | 250/10" | 345 | ||||||
| HL234500 | 2350 | 2560 | 20 | 200/8" | 196 | 9.28 | 14525 | 4200 |
| 30 | 250/10" | 294 | ||||||
| 40 | 250/10" | 392 | ||||||
| HL235000 | 2350 | 2560 | 20 | 200/8" | 220 | 10.40 | 16250 | 4750 |
| 30 | 250/10" | 329 | ||||||
| 40 | 250/10" | 439 | ||||||
| HL236000 | 2350 | 2560 | 20 | 200/8" | 267 | 12.62 | 19700 | 5850 |
| 30 | 250/10" | 400 | ||||||
| 40 | 315/12" | 533 | ||||||
| HL237000 | 2350 | 2560 | 20 | 250/10" | 314 | 14.86 | 23150 | 6950 |
| 30 | 315/12" | 471 | ||||||
| 40 | 315/12" | 628 | ||||||
| Diameter:2000mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL202500 | 2000 | 2220 | 20 | 160/6" | 87 | 4.34 | 6000 | 1050 |
| 30 | 160/6" | 130 | ||||||
| 40 | 200/8" | 174 | ||||||
| HL203000 | 2000 | 2220 | 20 | 160/6" | 106 | 5.30 | 7450 | 1300 |
| 30 | 160/6" | 159 | ||||||
| 40 | 200/8" | 212 | ||||||
| HL203500 | 2000 | 2220 | 20 | 160/6" | 125 | 6.25 | 8900 | 1550 |
| 30 | 200/8" | 187 | ||||||
| 40 | 200/8" | 250 | ||||||
| HL204000 | 2000 | 2220 | 20 | 160/6" | 144 | 7.21 | 10350 | 1800 |
| 30 | 200/8" | 216 | ||||||
| 40 | 250/10" | 288 | ||||||
| HL204500 | 2000 | 2220 | 20 | 200/8" | 163 | 8.16 | 11800 | 2080 |
| 30 | 200/8" | 245 | ||||||
| 40 | 250/10" | 326 | ||||||
| Diameter:1800mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL182500 | 1800 | 2050 | 20 | 160/6" | 75 | 3.74 | 4850 | 980 |
| 30 | 160/6" | 112 | ||||||
| 40 | 160/6" | 150 | ||||||
| HL183000 | 1800 | 2050 | 20 | 160/6" | 92 | 4.58 | 5930 | 1230 |
| 30 | 160/6" | 137 | ||||||
| 40 | 200/8" | 183 | ||||||
| HL183500 | 1800 | 2050 | 20 | 160/6" | 108 | 5.41 | 7000 | 1480 |
| 30 | 200/8" | 162 | ||||||
| 40 | 200/8" | 216 | ||||||
| HL184000 | 1800 | 2050 | 20 | 160/6" | 125 | 6.25 | 8080 | 1700 |
| 30 | 200/8" | 187 | ||||||
| 40 | 250/10" | 250 | ||||||
| Diameter:1600mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL161900 | 1600 | 1830 | 20 | 110/4" | 49 | 2.47 | 2800 | 600 |
| 30 | 160/6" | 74 | ||||||
| 40 | 160/6" | 99 | ||||||
| HL162500 | 1600 | 1830 | 20 | 110/4" | 67 | 3.36 | 3800 | 850 |
| 30 | 160/6" | 101 | ||||||
| 40 | 160/6" | 134 | ||||||
| HL163000 | 1600 | 1830 | 20 | 160/6" | 82 | 4.10 | 4700 | 1050 |
| 30 | 160/6" | 123 | ||||||
| 40 | 200/8" | 164 | ||||||
| Diameter:1400mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL141900 | 1400 | 1600 | 20 | 110/4" | 45 | 2.23 | 2000 | 580 |
| 30 | 110/4" | 67 | ||||||
| 40 | 160/6" | 89 | ||||||
| HL142500 | 1400 | 1600 | 20 | 110/4" | 60 | 3.02 | 2750 | 800 |
| 30 | 160/6" | 91 | ||||||
| 40 | 160/6" | 121 | ||||||
| HL143000 | 1400 | 1600 | 20 | 160/6" | 73 | 3.67 | 3375 | 1000 |
| 30 | 160/6" | 110 | ||||||
| 40 | 160/6" | 147 | ||||||
| Diameter:1200mm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg）0.5-0.8mm | Grave Weight（kg）1-2mm |
| HL121900 | 1200 | 1390 | 20 | 90/3" | 39 | 1.96 | 1100 | 430 |
| 30 | 110/4" | 59 | ||||||
| 40 | 160/6" | 79 | ||||||
| HL122300 | 1200 | 1390 | 20 | 110/4" | 48 | 2.42 | 1430 | 500 |
| 30 | 160/6" | 73 | ||||||
| 40 | 160/6" | 97 | ||||||
| HL122500 | 1200 | 1390 | 20 | 110/4" | 53 | 2.65 | 1750 | 700 |
| 30 | 160/6" | 79 | ||||||
| 40 | 160/6" | 106 | ||||||
| HL122700 | 1200 | 1390 | 20 | 110/4" | 57 | 2.87 | 2080 | 830 |
| 30 | 160/6" | 86 | ||||||
| 40 | 160/6" | 115 | ||||||
| HL123000 | 1200 | 1390 | 20 | 110/4" | 64 | 3.21 | 2330 | 925 |
| 30 | 160/6" | 96 | ||||||
| 40 | 160/6" | 129 | ||||||
Diameter:3000mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL305000 | 3000 | 3230 | 900 | 510 | 1500 | 160 | 2310 | 5000 | 5110 | 1000-1200 | 550 |
| HL306000 | 3000 | 3230 | 900 | 510 | 1500 | 160 | 2310 | 6000 | 6110 | 1000-1200 | 550 |
| HL307000 | 3000 | 3230 | 900 | 510 | 1500 | 160 | 2310 | 7000 | 7110 | 1000-1200 | 550 |
| HL308000 | 3000 | 3230 | 900 | 510 | 1500 | 160 | 2310 | 8000 | 8110 | 1000-1200 | 550 |
Diameter:2500mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL254000 | 2500 | 2710 | 1360 | 450 | 710 | 160 | 1900 | 4000 | 4380 | 1000-1200 | 550 |
| HL254500 | 2500 | 2710 | 1360 | 450 | 710 | 160 | 1900 | 4500 | 4940 | 1000-1200 | 550 |
| HL255000 | 2500 | 2710 | 1360 | 450 | 710 | 160 | 1900 | 5000 | 5440 | 1000-1200 | 550 |
| HL256000 | 2500 | 2710 | 625 | 450 | 1400 | 160 | 1900 | 6000 | 6110 | 1000-1200 | 550 |
| HL257000 | 2500 | 2710 | 625 | 450 | 1400 | 160 | 1900 | 7000 | 7110 | 1000-1200 | 550 |
Diameter:2350mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL234000 | 2350 | 2560 | 1270 | 300 | 710 | 160 | 1750 | 4000 | 4380 | 1000-1200 | 500 |
| HL534500 | 2350 | 2560 | 1270 | 300 | 710 | 160 | 1750 | 4500 | 4880 | 1000-1200 | 500 |
| HL235000 | 2350 | 2560 | 1270 | 300 | 710 | 160 | 1750 | 5000 | 5440 | 1000-1200 | 500 |
| HL236000 | 2350 | 2560 | 720 | 300 | 1350 | 160 | 1750 | 6000 | 6110 | 1000-1200 | 500 |
| HL237000 | 2350 | 2560 | 720 | 300 | 1350 | 160 | 1750 | 7000 | 7110 | 1000-1200 | 500 |
Diameter:2000mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL205000 | 2000 | 2220 | 1090 | 330 | 550 | 160 | 1490 | 2500 | 2730 | 1100 | 400 |
| HL203000 | 2000 | 2220 | 1090 | 330 | 550 | 160 | 1490 | 3000 | 3230 | 1100 | 400 |
| HL203500 | 2000 | 2220 | 1090 | 330 | 550 | 160 | 1490 | 3500 | 3730 | 1100 | 400 |
| HL20400 | 2000 | 2220 | 1090 | 330 | 550 | 160 | 1490 | 4000 | 4230 | 1100 | 400 |
| HL204500 | 2000 | 2220 | 1090 | 330 | 550 | 160 | 1490 | 4500 | 4730 | 1100 | 400 |
Diameter:1800mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL182500 | 1800 | 2050 | 1040 | 300 | 550 | 160 | 1400 | 2500 | 2700 | 1000 | 300 |
| HL183500 | 1800 | 2050 | 1040 | 300 | 550 | 160 | 1400 | 3000 | 3200 | 1000 | 300 |
| HL183500 | 1800 | 2050 | 1040 | 300 | 550 | 160 | 1400 | 3500 | 3700 | 1000 | 300 |
| HL184000 | 1800 | 2050 | 1040 | 300 | 550 | 160 | 1400 | 4000 | 4200 | 1000 | 300 |
Diameter:1600mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL161900 | 1600 | 1830 | 925 | 300 | 450 | 110 | 1230 | 1900 | 2100 | 950 | 250 |
| HL162500 | 1600 | 1830 | 925 | 300 | 450 | 110 | 1230 | 2500 | 2700 | 950 | 250 |
| HL163000 | 1600 | 1830 | 925 | 300 | 450 | 110 | 1230 | 3000 | 2300 | 950 | 250 |
Diameter:1400mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL141900 | 1400 | 1600 | 810 | 300 | 400 | 110 | 960 | 1900 | 2050 | 750 | 225 |
| HL142500 | 1400 | 1600 | 810 | 300 | 400 | 110 | 960 | 2500 | 2450 | 750 | 225 |
| HL146000 | 1400 | 1600 | 810 | 300 | 400 | 110 | 960 | 3000 | 3150 | 750 | 225 |
Diameter:1200mm
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | K（mm） | P（mm） | L（mm） | L2（mm） | T（mm） | W（mm） |
| HL121900 | 1200 | 1390 | 725 | 250 | 340 | 80 | 900 | 1900 | 2050 | 550 | 225 |
| HL122300 | 1200 | 1390 | 725 | 250 | 340 | 80 | 900 | 2300 | 2450 | 550 | 225 |
| HL122500 | 1200 | 1390 | 725 | 250 | 340 | 80 | 900 | 2500 | 2650 | 550 | 225 |
| HL122700 | 1200 | 1390 | 725 | 250 | 340 | 80 | 900 | 2700 | 2850 | 550 | 225 |
| HL123000 | 1200 | 1390 | 725 | 250 | 340 | 80 | 900 | 3000 | 3150 | 550 | 225 |
