  • Plastic Sand Filter

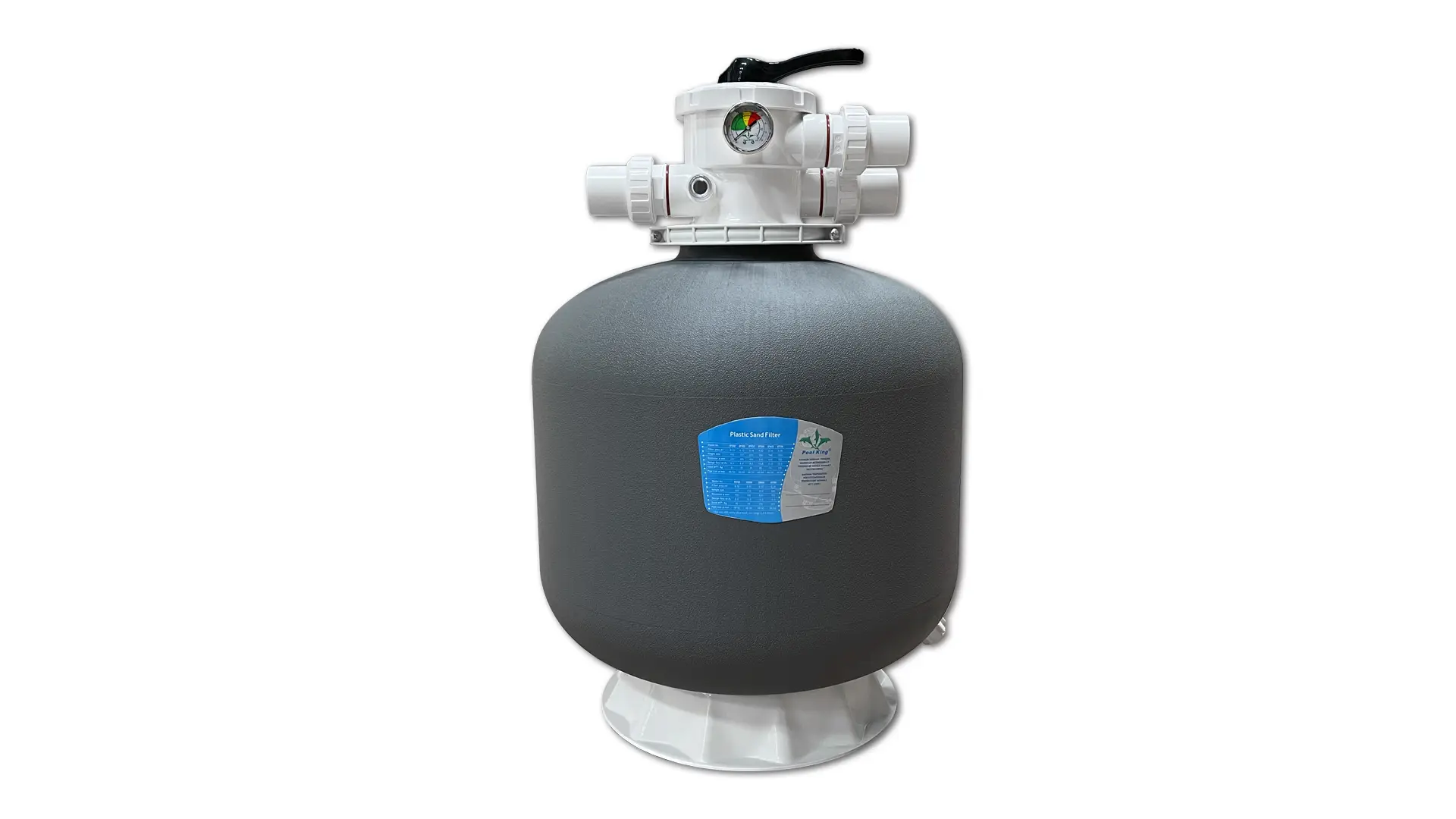

Plastic Sand Filter


Model: EP / ES sereis

Type:   Pool Filter
Usage:   Wate Treatment
Motive Force:                 Pressure
Style:   Vertical
Perfromance:                 Efficient Filtration
Dia:   400 mm ~ 700 mm
Trademark:   Poolking
Origin:   China
HS Code:   8421219990



PRODUCT DETAIL

Feature:

  • 1. Inner tanks are made of high density polyethylene material, corrosive-proof, safe and environmental.
  • 2. Outer is constructed of polyester resin and non-corrosive fibreglass filament winding.
  • 3. Integral sight glass for backwash clarity confirmation.
  • 4. Clamp lock designed to allow 360degree rotation to simplify installation.
  • 5. Removable thread socket PVC unions in imperial or metric size.

Specifications:

  • 1. Maximum working pressure: 200kpa/29psi/2.0bar.
  • 2. Factory Testing Pressure: 300kpa/44psi/3.0bar.
  • 3. Maximum Water Temperature: 40°C(104F)
  • 4. Size of Gravel: 1mm-2mm
  • 5. Size of Silica Sand: 0.5~0.8mm

Application:

  • *swimming pool and spa
  • *aguiculture
  • *industrial water treatment.

Technical Parameters:

Model

Tank Diameter

(mm)

Tank Height

(mm)

Design Flow

(m3/h)

Filter Area

(m2)

Connections

(mm)

Sand Weight

(kg)

EP350 350 745 4.5 0.10 48/50 25
EP400 400 770 6.0 0.13 48/50 30
EP450 450 815 8.0 0.16 48/50 45
EP500 530 860 9.0 0.20 48/50 85
EP650 630 960 15.0 0.32 48/50 150
EP700 700 1030 17.0 0.38 48 85

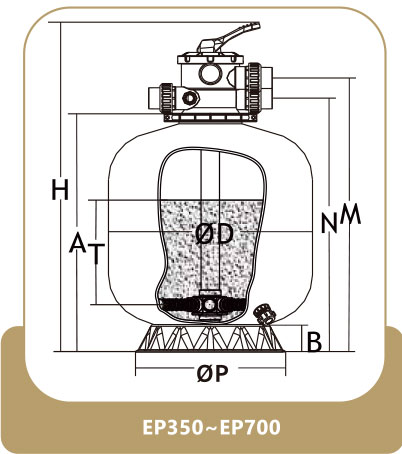

Top Mount:

Model EP350 EP400 EP450 EP500 EP650 EP700
ØD(mm) 350 400 450 530 630 700
H(mm) 745 770 815 860 960 1030
A(mm) 485 510 555 600 700 770
B(mm) 73 73 75 75 95 95
M(mm) 609 609 674 719 819 889
N(mm) 550 550 615 660 760 830
ØP(mm) 320 320 390 390 565 690
T(mm) 150 160 220 260 370 450






Side Mount

Model

Tank Diameter

(mm)

Tank Height

(mm)

Design Flow

(m3/h)

Filter Area

(m2)

Connection

(mm)

Sand Weight

(kg)

ES450 450 665 8 0.16 48/50 45
ES500 530 710 9 0.20 48/50 85
ES650 630 810 15 0.32 48/50 150
ES700 700 880 17 0.38 48/50 200
Model ES450 ES500 ES650 ES700
ØD(mm) 450 530 630 700
H(mm) 665 710 810 880
A(mm) 260 280 310 360
B(mm) 75 75 95 95
C(mm) 125 125 125 125
ØP(mm) 390 390 565 565
T(mm) 250 280 300 350




Workshop:

Plastic workshop1
Plastic workshop2
Plastic workshop3
Plastic workshop4
Plastic workshop5
Plastic workshop6

Transportantion:

f-5
f-6
