  • High Pressure Fiberglass Filter

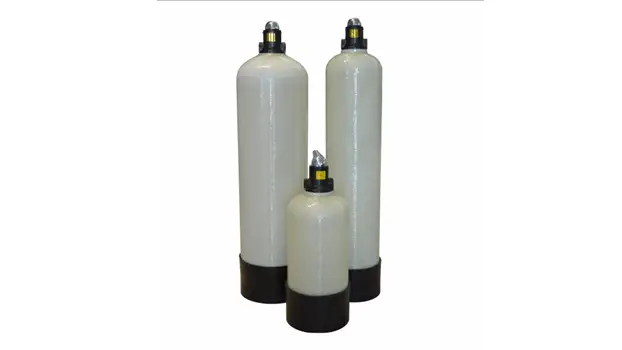

High Pressure Fiberglass Filter


Model: PF sereis

Type:   Pool Filter
Usage:   Wate Treatment
Motive Force:                 Pressure
Style:   Vertical
Perfromance:                 Efficient Filtration
Dia:   200mm-1500mm
Trademark:   Poolking
Origin:   China
HS Code:   8421219990



PRODUCT DETAIL

Feature:

  • 1. Adopt high-performance material to satisfy customer’s different application.
  • 2. Apply to water feeding and sewage water treatment, Chemical, Eletronic, Petrolem, Food etc.
  • 3.Ø150mm-Ø900mm filters are made of PE blow molding inner tank with fiberglass.
  • 4. Ø1000mm-Ø1500mm filters are made of PE rotational molding innertank with fiberglass.
  • 5. Above Ø700mm filters are specially equipped with destruction of negative pressure device.
  • 6.Strong ability of pressure - bearing.

Specifications:

  • 1. Maximum working pressure: 600kpa/87psi/6.0bar.
  • 2. Factory Testing Pressure:900kpa/130psi/9.0bar.
  • 3. Maximum Water Temperature: ≤49°C.
  • 4. Max Vacuum: 127mmHg.
  • 5. Filtration Media:silica sand, activated carbon, etc.

Application:

  • *swimming pool and spa
  • *aguiculture
  • *industrial water treatment.

Technical Parameters:

Model

Tank Diamter

(mm)

Tank Height

(mm)

Volume

(L)

Connections

(inch)

PF2045 200 450 11.5 6' valve
PF2090 200 900 24.8 6' valve
PF2011 200 1100 35.0 6' valve
PF2590 250 900 38.4 6' valve
PF2514 250 1400 50.0 6' valve
PF3014 300 1450 70.0 6' valve
PF3016 300 1650 100.0 6' valve
PF3516 350 1650 130.0 6' valve
PF4016 400 1650 180.0 6' valve
PF5018 500 1800 280.0 4" flange
PF6018 600 1850 400.0 4" flange
PF6020 600 2000 460.0 4" flange
PF7520 750 2000 700.0 4" flange
PF9020 900 2000 1040.0 6" flange
PF9024 900 2400 1170.0 6" flange
PF10018 1000 1850 1040.0 6" flange
PF10024 1000 2400 1332.0 6" flange
PF12024 1200 2400 1909.0 6" flange
PF15024 1500 2400 2588.0 6" flange





Model PF2045 PF2090 PF2011 PF2590 PF2514 PF3014 PF3016 PF3516 PF4016 PF5018 PF6018 PF6020 PF7520 PF9020 PF9024 PF10018 PF10024 PF12024 PF15024
A(mm) 200 200 200 250 250 300 300 350 400 500 600 600 750 900 900 1000 1000 1200 1500
B(mm) 430 805 1090 855 1430 1430 1630 1630 1650 1650 1850 1850 1950 2150 1650 2150 2150 2150 2150
C(mm) 450 900 1100 900 1400 1450 1650 1650 1650 1800 1850 2000 2000 2000 2400 1850 2400 2400 2400
D(mm) 250 625 910 675 1250 1250 1450 1390 1390 1240 1180 1350 1300 1300 1500 1320 1500 1500 1500
