  • Fibreglass Commercial Diatomaceous Earth Filters

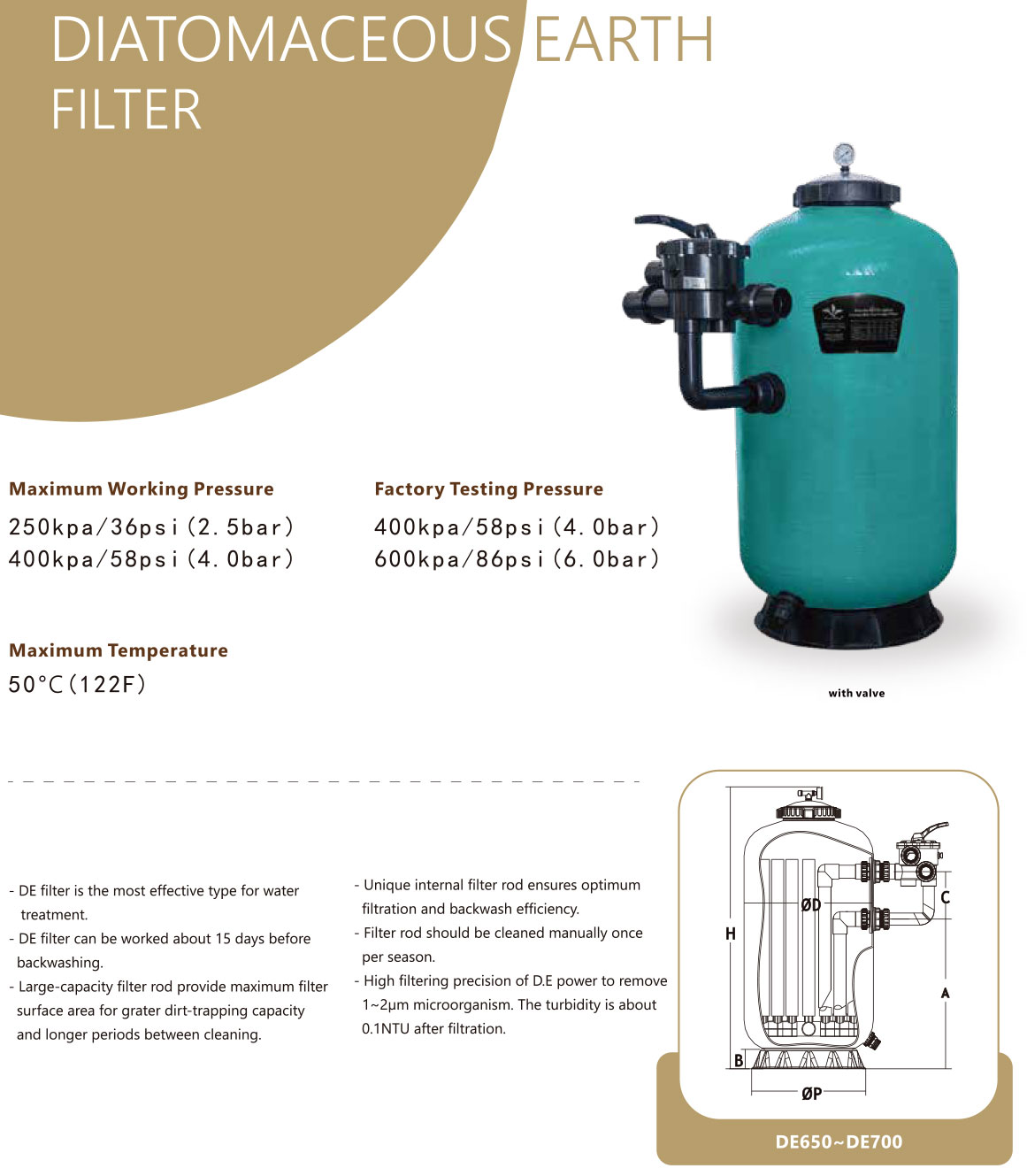

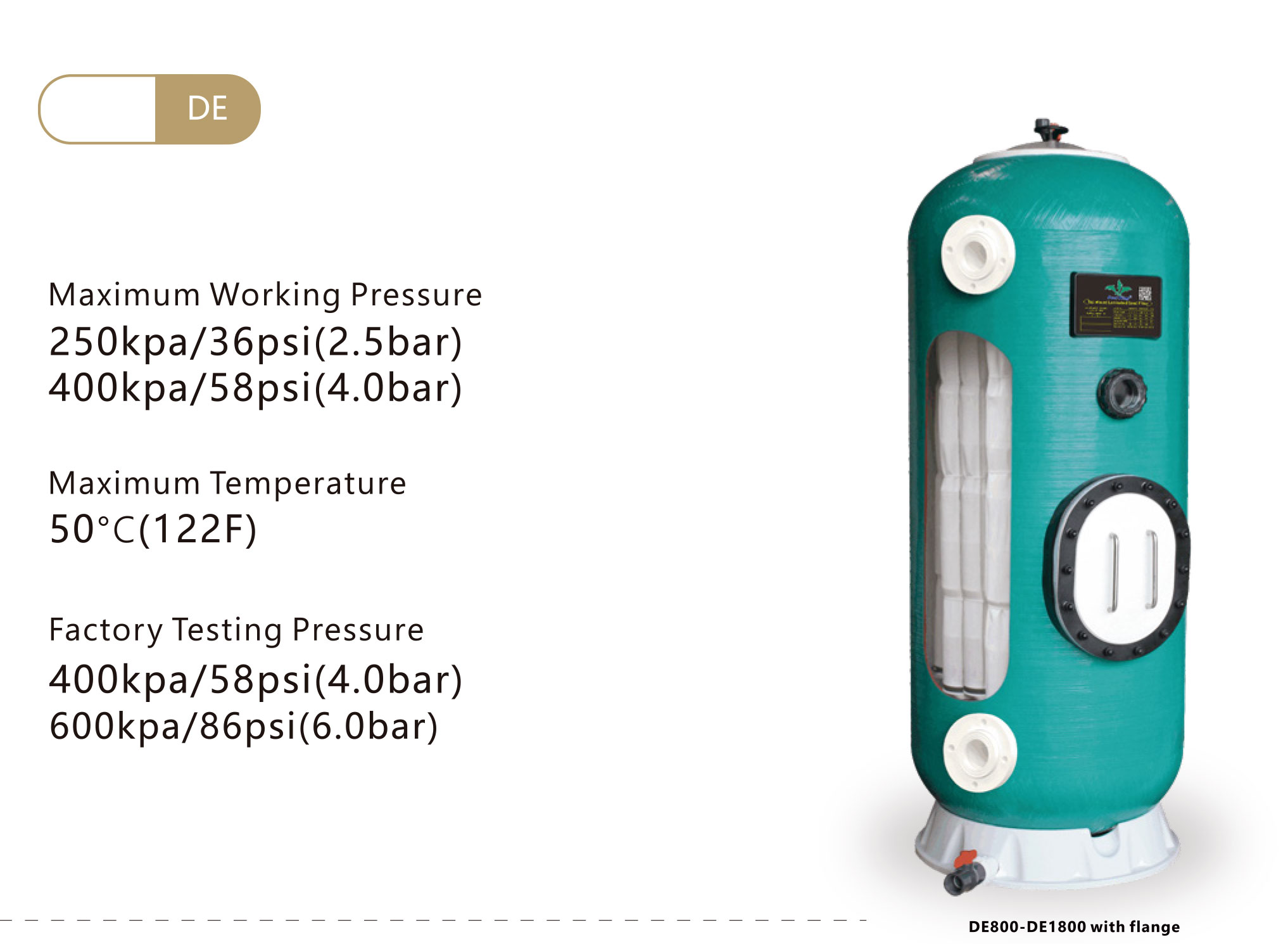

Fibreglass Commercial Diatomaceous Earth Filters


Model: DE SERIES

Type:   Pool Filter
Usage:   Wate Treatment
Motive Force:                 Pressure
Style:   Vertical
Perfromance:                 Efficient Filtration
Dia:   800 mm ~ 1800 mm
Trademark:   Poolking
Origin:   China
HS Code:   8421219990



PRODUCT DETAIL

Feature:

  • 1. DE filter is the most effective type than other filter.
  • 2. DE filter can be worked about two weeks before backwashing.
  • 3. Large-capacity filter rab provide maximum filter surface area for grater dirt-trapping capacity and longer periods between cleaning.
  • 4. Unique internal filter rod ensures optimum filtration and backwashing efficiency.
  • 5. Filter rab should be cleaned manually at last once per season.
  • 6. High filtering precision of D.E power to remove 1~2μm microorganism. The turbidity is about 0.1NTU after filtration.

Specifications:

  • 1. Maximum working pressure: 250kPa/36psi/2.5bar or 400kPa/58psi/4.0bar
  • 2. Factory Testing Pressure: 400kPa/58psi/4.0bar or 600kPa/86psi/6.0bar
  • 3. Maximum Water Temperature: 500 C
  • 4. Size of Gravel: 1mm-2mm
  • 5. Size of Silica Sand: 0.5~0.8mm

Application:

  • *swimming pool and spa
  • *aguiculture
  • *industrial water treatment.

Technical Parameters:

Model

Tank Diameter

(mm)

Tank Height

(mm)

Design Flow

(m3/h)

Filter Area

(m2)

Connections

(mm)

Required D.E

(kg)

DE650 635 1310 18.0 3.64 60/63 2.2
DE700 700 1340 24.0 5.07 60/63 3.0
DE800 800 2100 47.0 9.40 80 5.0
DE900 900 2100 55.0 11.00 80 6.0
DE1000 1000 2100 75.0 15.00 100 8.0
DE1200 1200 2300 117.0 23.40 100 13.0
DE1400 1400 2350 163.0 32.60 150 19.0
DE1600 1600 2350 203.0 40.60 150 22.0
DE1800 1800 2450 267.0 53.40 200 30.0

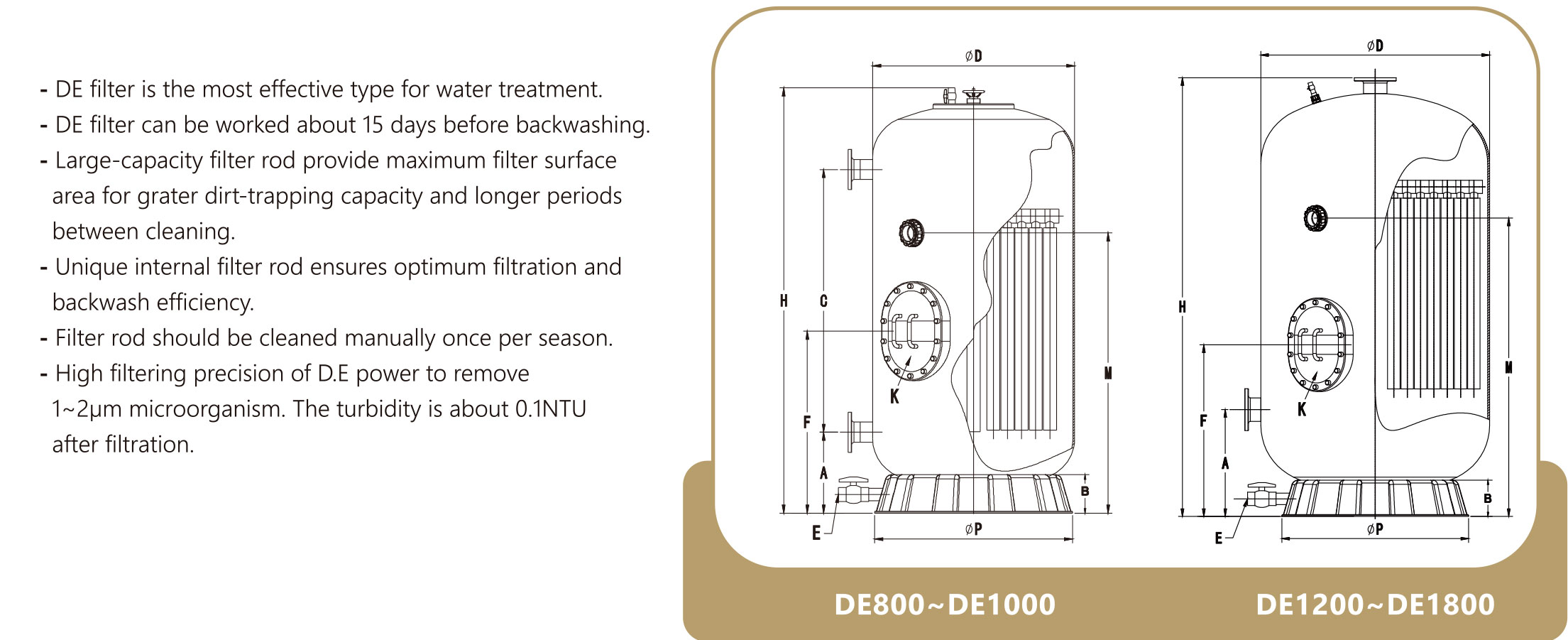

Model DE650 DE700 DE800 DE900 DE1000 DE1200 DE1400 DE1600 DE1800
ØD(mm) 635 700 800 900 1000 1200 1400 1600 1800
H(mm) 1310 1340 2100 2100 2100 2300 2350 2350 2450
A(mm) 700 730 400 400 400 500 600 600 650
B(mm) 95 95 115 115 140 165 165 215 215
C(mm) 220 220 1300 1300 1300 - - - -
E(mm) - - 50 50 50 50 63 63 63
F(mm) - - 900 900 900 900 900 900 1000
K(mm) - - 400X300 400X300 400X300 400X300 400X300 400X300 400X300
M(mm) - - 1350 1350 1350 1400 1400 1400 1450
ØP(mm) 565 565 690 760 830 980 1215 1450 1610

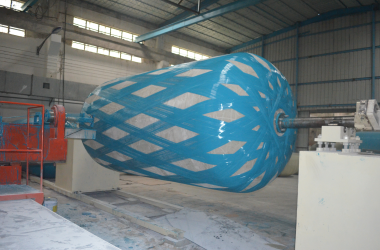

Workshop:

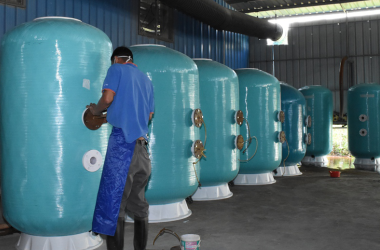

b-1

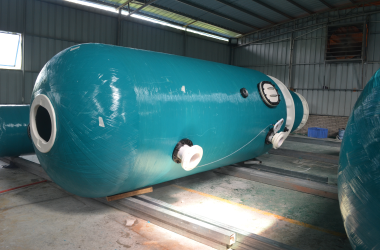

b-2

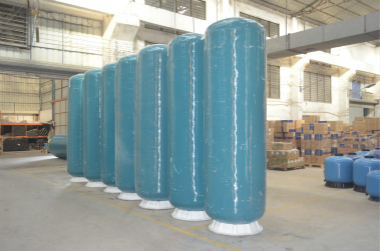

work shop05

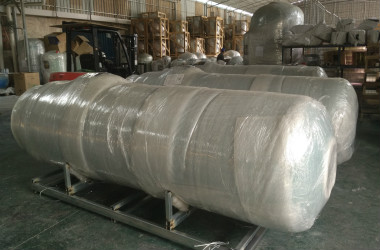

poolking work shop06
poolking workshop_1

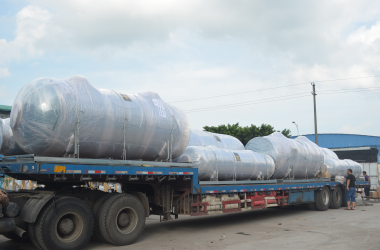

Transportation:

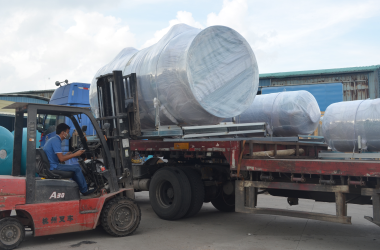

b-5

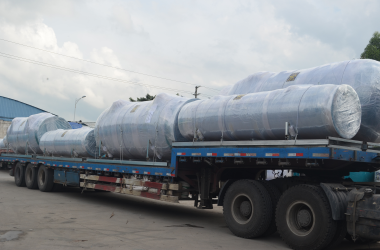

b-6
